Description
Properties

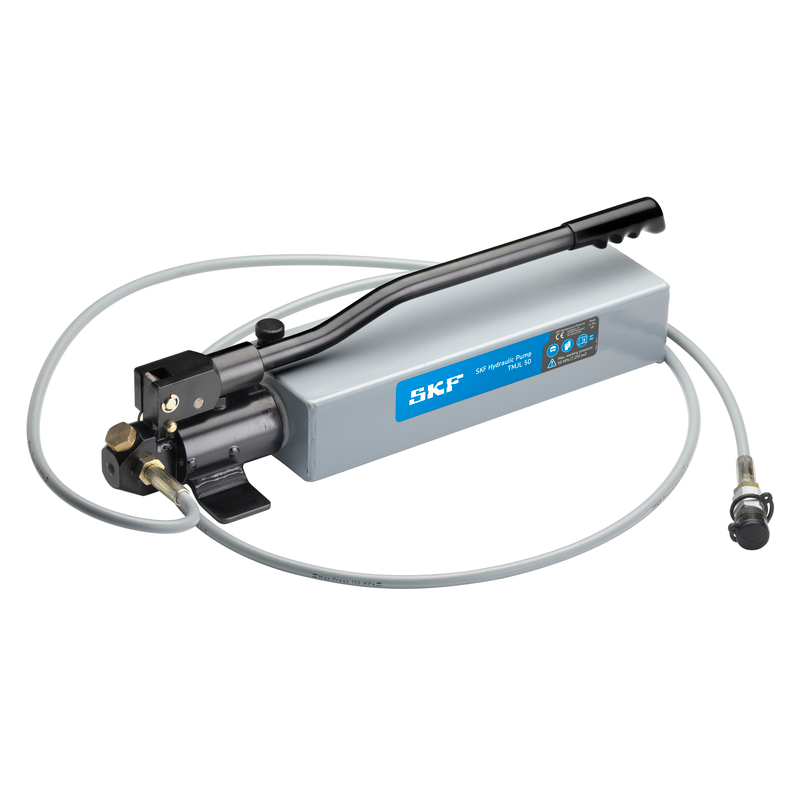

| Type | Hand operated pump |
| Recommended applications |
SKF OK coupling hydraulic chambers
All sizes SKF hydraulic nuts
Oil injection applications where the maximum pressure is 50 MPa (7 250 psi)
|
| Type of pump | Single stage |
| Volume per stroke | 3.5 ml |
| Oil container capacity | 2 700 ml |
| Pressure gauge | No |
| Hose length | 3 000 mm |
| Filled with oil | Yes, with SKF Mounting Fluid LHMF 300 |
| Handle force at maximum oil pressure | 310 N |
| Connection nipple | G 1/4 (male) |
| Suitable for Drive up method | No |
| Suitable for Hydraulic nut HMV range | 9 – 200 |
| Housing material | Steel pump body |
| Colour |
Grey
Black
|
| Operating temperature range | 10 – 35 °C |
| Relative humidity | 0 to 75%, non-condensing |
| Product weight | 12 kg |
| Content |
Pump with mounting fluid
pressure hose
quick connection coupling
quick connection nipple
tool case
1l can of mounting fluid
|
| Total product weight | 17.8 kg |
| Volume per stroke | 3.5 cm³ |
Accessory
| Mounting or Dismounting fluid | LHDF 900/5 |
| Mounting or Dismounting fluid | LHMF 300/5 |
| SKF Digital Pressure Gauge 0 – 100 MPa (0 – 14,500 psi) dia 79 mm (3.1 in) | THGD 100 |
| Pressure gauge protection sleeve 100 mm | TMJG S100 |
Spare part
| SKF Pressure Gauge 0 – 100 MPa (0 – 14,500 psi) dia 110 mm (4.3 in) | 1077587 |
| Tool case (empty) for THAP and TMJL | 728245/3 A-UNP |
| Quick connection coupling | 729831 A |
| Quick connecting nipple | 729832 A |
| Flexible high pressure hose 150 MPa, 3m long | 729834 |
| Mounting or Dismounting fluid | LHMF 300/1 |
| Pressure gauge adapter for TMJL 100 and TMJL 50 | TMJL 100-3 |
| Hydraulic pump body of TMJL 50 | TMJL 50-1 |
| Repair kit for TMJL 50 | TMJL 50-2 |
