THGD 100

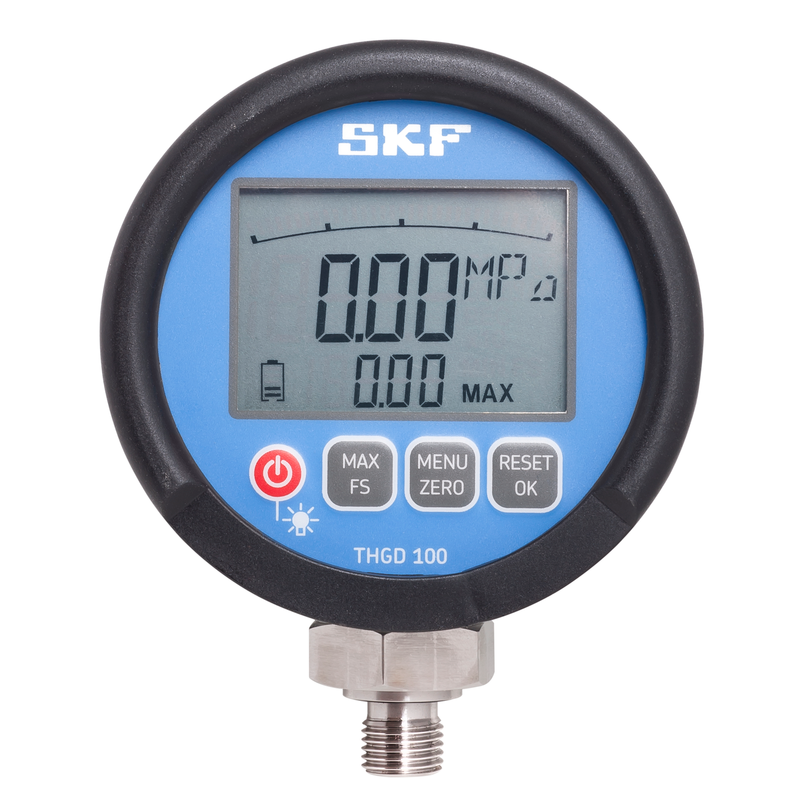

SKF Digital Pressure Gauge – 0-100 MPa (0-14,500 psi) dia 79 mm (2.72 in)

The Digital oil pressure gauge, THGD 100, is used to accurately measure the hydraulic pressure when mounting bearings using the SKF Drive-up Method.

• Digital oil pressure gauge with actual and maximum display
• Bar graph display 33 segments (with peak and hold function)
• 4.1/2 digit LC display (15 mm) with back light illumination
• Start up check: LCD Segment check, maximum pressure &
• current displayed units (MPa or psi), Auto power off status
