Description
Properties
| Type | Hand operated pump |
| Recommended applications |
SKF Drive-up method using SKF hydraulic nuts smaller than or equal to HMV 92E
Oil injection applications where the maximum pressure is 100 MPa (14 500 psi)
Suitable for SKF hydraulic assisted pullers TMHP series
|
| Type of pump | Single stage |
| Volume per stroke | 1 ml |
| Oil container capacity | 800 ml |
| Pressure gauge | Yes, digital |
| Hose length | 3 000 mm |
| Filled with oil | Yes, with SKF Mounting Fluid LHMF 300 |
| Handle force at maximum oil pressure | 320 N |
| Connection nipple | G 1/4 (male) |
| Suitable for Drive up method | Yes |
| Suitable for Hydraulic nut HMV range | 9 – 92 |
| Housing material | Steel pump body |
| Colour |
Grey
Black
|
| Operating temperature range | 10 – 35 °C |
| Relative humidity | 0 to 75%, non-condensing |
| Product weight | 9.6 kg |

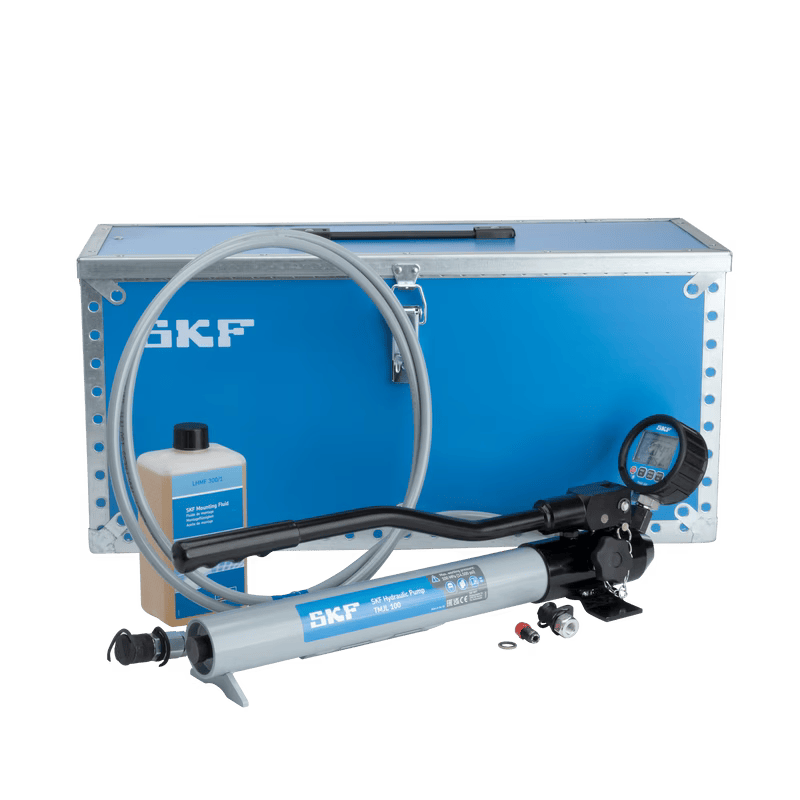

| Content |
Pump with mounting fluid
pressure hose
quick connection coupling
quick connection nipple
digtial pressure gauge
carrying case
1l can of mounting fluid
|
| Total product weight | 9.6 kg |
| Volume per stroke | 1 cm³ |
Spare part
| Tool case (empty) for THAP and TMJL | 728245/3 A-UNP |
| Quick connection coupling | 729831 A |
| Quick connecting nipple | 729832 A |
| Flexible high pressure hose 150 MPa, 3m long | 729834 |
| Mounting or Dismounting fluid | LHMF 300/1 |
| SKF Digital Pressure Gauge 0 – 100 MPa (0 – 14,500 psi) dia 79 mm (3.1 in) | THGD 100 |
| Hydraulic pump body of TMJL 100 | TMJL 100-1 |
| Repair kit for TMJL 100 | TMJL 100-2 |
| Pressure gauge adapter for TMJL 100 and TMJL 50 | TMJL 100-3 |
Refill
| Mounting or Dismounting fluid | LHDF 900/5 |
| Mounting or Dismounting fluid | LHMF 300/5 |
