Description
Properties

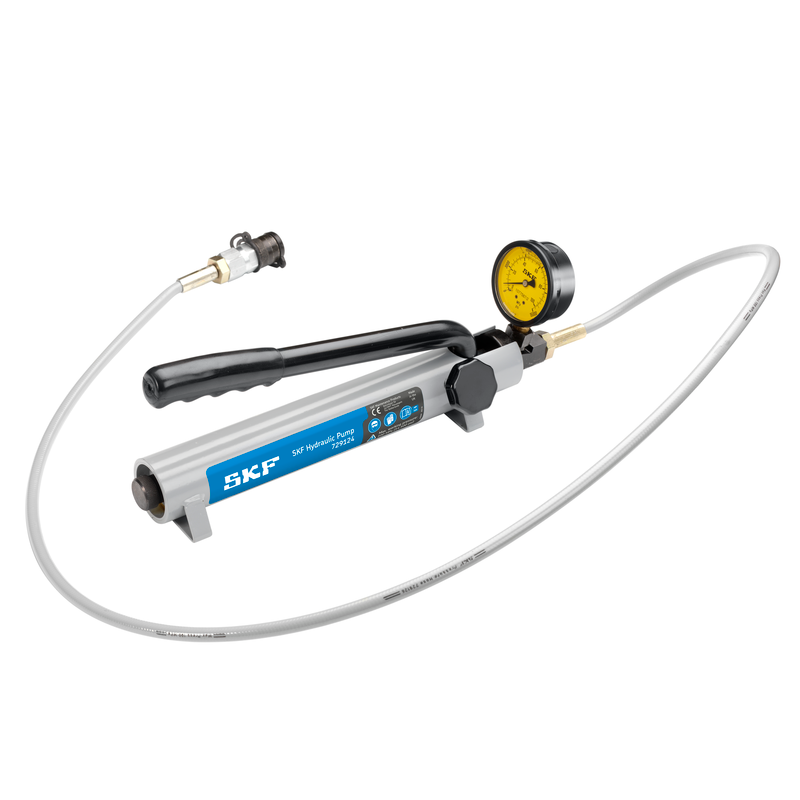

| Type | Hand operated pump |
| Recommended applications |
SKF hydraulic nuts smaller than or equal to HMV 54E
Oil injection applications where the maximum pressure is 100 MPa (14 500 psi)
|
| Type of pump | Single stage |
| Volume per stroke | 0.5 ml |
| Oil container capacity | 250 ml |
| Pressure gauge | Yes, analogue |
| Hose length | 1 500 mm |
| Filled with oil | Yes, with SKF Mounting Fluid LHMF 300 |
| Handle force at maximum oil pressure | 300 N |
| Connection nipple | G 1/4 (male) |
| Suitable for Drive up method | No |
| Suitable for Hydraulic nut HMV range | 9 – 54 |
| Housing material | Steel pump body |
| Colour |
Grey
Black
|
| Operating temperature range | 10 – 35 °C |
| Relative humidity | 0 to 75%, non-condensing |
| Product weight | 3.52 kg |
| Content |
Pump with mounting fluid
pressure hose
quick connection coupling
quick connection nipple
pressure gauge
carrying case
1l can of mounting fluid
|
| Total product weight | 7.7 kg |
| Volume per stroke | 0.5 cm³ |
Accessory
| Mounting or Dismounting fluid | LHDF 900/5 |
| Mounting or Dismounting fluid | LHMF 300/5 |
| SKF Digital Pressure Gauge 0 – 100 MPa (0 – 14,500 psi) dia 79 mm (3.1 in) | THGD 100 |
Spare part
| SKF Pressure Gauge 0 – 100 MPa (0 – 14,500 psi) dia 69 mm (2.7 in) | 1077587/2 |
| Nipple for 729124 | 729107 |
| Pressure gauge nipple for 729124 | 729108 |
| Hydraulic pump body of 729124 | 729124-1 |
| Repair kit for 729124 | 729124-3 |
| Release knob and spindle for 729124 | 729124-4 |
| Oil container tube of 729124 | 729124-5 |
| Tool case (empty) with inlay for 729124 | 729124-CC |
| Flexible high pressure hose 100 MPa, 1.5m long | 729126 |
| Quick connection coupling | 729831 A |
| Quick connecting nipple | 729832 A |
| Mounting or Dismounting fluid | LHMF 300/1 |
| SKF Tool Case, size C, generic, no inlay, empty | TDTC 1/C |
