THHP 300

Hydraulic pump 300 MPa (43 500 psi)

Easy-to-connect manual hydraulic pump develops oil pressures up to 300 MPa (43 500 psi)

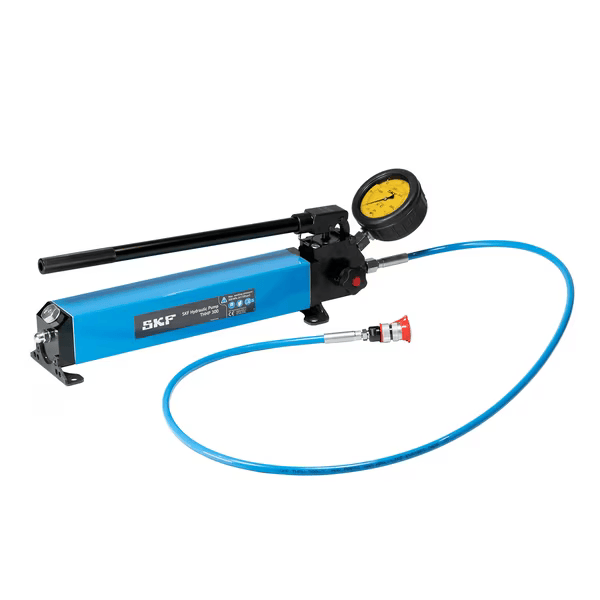

The THHP 300 is a high pressure, hand-operated hydraulic pump that is suitable for many applications using the SKF Oil Injection Method, for oil pressures up to 300 MPa (43 500 psi). It can be used straight from the case: mount the appropriate THPN nipple on the application and then screw on the quick connection nipple. Connecting the hose to the nipple on the application enables a supply of high pressure oil. The two stage pump includes a 0-300 MPa (0-43 500 psi) pressure gauge, high pressure hose and quick connection coupling. Connection nipples enable both G1/4 and G3/4 connections.

  • Two stage pump design to quickly reach high pressures up to 300 MPa (43 500 psi)
  • Large, mounted gauge shows pressures over the full pressure range
  • Glycerine filled pressure gauge dampens shocks and pressure peaks, giving longer service life and is easier to read
  • Easy to use – it comes with a high-pressure hose, a quick connection coupling is included and various nipples to connect to the most common applications
  • Applicable in wide range of industries including rail and marine
  • Design minimises the risk of oil leaking into the environment
  • Packed in a sturdy protective case

Dimensions

Dimensions (W x L x H) 130 x 574 x 200 mm
Case dimensions (l x h x w) 920 x 318 x 380 mm

Performance

Maximum pressure 3 000 bar
Maximum pressure 300 MPa
Add to Enquiry
SKU: THHP 300-SKF Categories: ,
SKF

Description

Properties

Type Hand operated pump
Recommended applications Applications using the SKF Oil Injection Method
Type of pump Two-stage
Volume per stroke, 1st stage 40 cm³, below 1.6 MPa
Volume per stroke, 2nd stage 0.5 cm³, above 1.6 MPa
Oil container capacity 1 600 ml
Pressure gauge Yes, analogue
Hose length 2 000 mm
Filled with oil Yes, with SKF Mounting Fluid LHMF 300
Handle force at maximum oil pressure 390 N
Connection nipple G1/4 (male) and G3/4 (male)
Suitable for Drive up method No
Housing material light aluminum engineering alloy
Colour
Blue
Black
Operating temperature range 10  –  35 °C
Relative humidity 0 to 75%, non-condensing
Product weight 7.5 kg

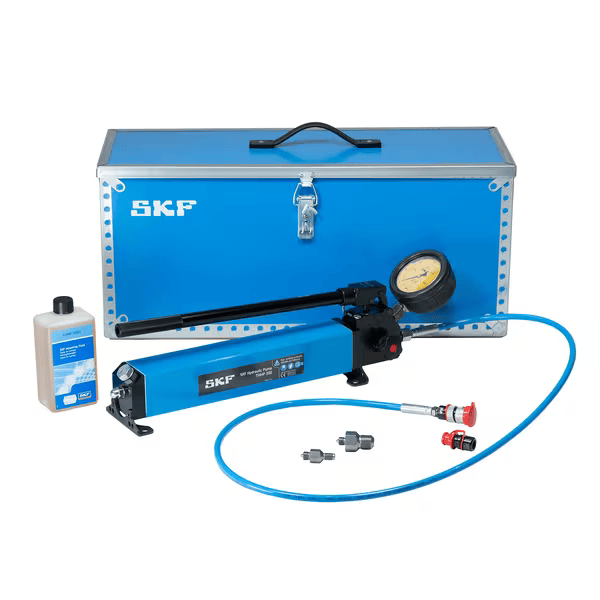

Content
Pump with mounting fluid
pressure hose
quick connection coupling
quick connection nipple
2 connection nipples
pressure gauge
tool case
1l can of mounting fluid
Total product weight 9.1 kg

Accessory

High pressure hose, 300 MPa, M16x1.5 cone male, G1/4 female, 3 m long THHP 300-2H/3
High pressure hose, 300 MPa, M16x1.5 cone male, G1/4 female, 4 m long THHP 300-2H/4
Nipple M16x1.5 cone male, G1/2 male, 400 MPa THPN M16G1/2
Nipple M16x1.5 cone male, G1/8 male, 300 MPa THPN M16G1/8
Nipple M16x1.5 cone male, G3/8 male, 400 MPa THPN M16G3/8

Spare part

SKF Pressure Gauge 0 – 300 MPa (0 – 43,500 psi) dia 110 mm (4.3 in) 1077589
High pressure hose, 300 MPa, M16x1.5 cone male, G1/4 female, 2 m long THHP 300-2H
Repair kit for THHP 300 pump THHP 300-3
Tool case (empty) for THHP 300 THHP 300-9
Quick connection coupling, M16x1.5 cone female, 300 MPa THPC 300-1
Quick connection nipple, M16x1.5 cone female, 300 MPa THPN 300-1
Nipple M16x1.5 cone male, G1/4 male, 400 MPa THPN M16G1/4
Nipple M16x1.5 cone male, G3/4 male, 400 MPa THPN M16G3/4
Pressure gauge protection sleeve 100 mm TMJG S100

Refill

Mounting or Dismounting fluid LHDF 900/5
Mounting or Dismounting fluid LHMF 300/1
Mounting or Dismounting fluid LHMF 300/5
