Description
Properties
| Recommended applications | For the dismounting of larger bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft |
| Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) | Yes |
| Suitable for bearing dismounting from a Tapered seating (conical shaft) | Yes |
| Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) | Yes |
| Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) | No |
| Suitable for workpiece dismounting from a Housing | No |
| Suitable for bearing type(s) | All |
| Dismounting force generation | A hydraulic pump is needed to advance the piston of the hydraulic cylinder in this puller, in which a mechanical spindle is fitted. The recommended pump TMJL to connect to the hydraulic cylinder, is included with this puller. |
| Number of arms | 3 |
| Pulling force (max) | 500 kN |
| Hydraulic Cylinder, piston stroke | 40 mm |
| Hydraulic Cylinder, Maximum Operating Pressure | 800 bar |
| Hydraulic Cylinder, Maximum Operating Pressure | 80 MPa |
| Hydraulic Cylinder, Oil capacity | 260 cm³ |
| Oil viscosity (maximum) | 300 mm²/s |
| Spindle nose piece | Yes, ⌀35 mm |
| Colour | Black |
| Material | Alloy engineering steels, hardened and tempered |
| Coating | Chemical blackened |
| Content |

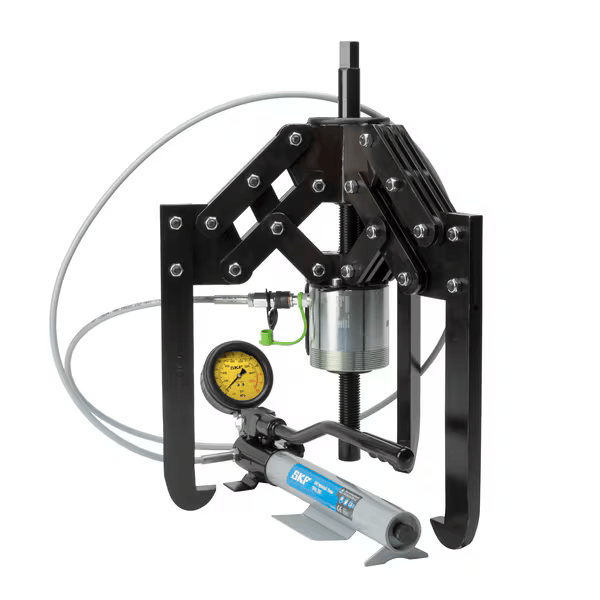

1x Puller TMHP 50/140
1x TMJL 100 Pump (complete in wooden carrying case)
1x Printed instructions for use
1x Piston hold tool
1x Wooden storage crate
|
Logistics
| Product net weight | 47 kg |
| eClass code | 23-05-19-01 |
| UNSPSC code | 27111712 |
