Description
Properties
| Recommended applications | For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft |
| Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) | Yes |
| Suitable for bearing dismounting from a Tapered seating (conical shaft) | Yes |
| Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) | Yes |
| Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) | No |
| Suitable for workpiece dismounting from a Housing | No |
| Suitable for bearing type(s) | All |
| Dismounting force generation | Spindle |
| Special features | Pantograph mechanism for parallel openning of arms with selflocking function, heavy duty version. Alternative arm lenghs available. |
| Number of arms | 3 |
| Pulling force (max) | 100 kN |
| Spindle torque (max) | 340 N·m |
| Spindle nose piece | Yes, ⌀24 mm |
| Colour | Black |
| Material | Alloy engineering steels, hardened and tempered |
| Coating | Chemical blackened |
| Content |

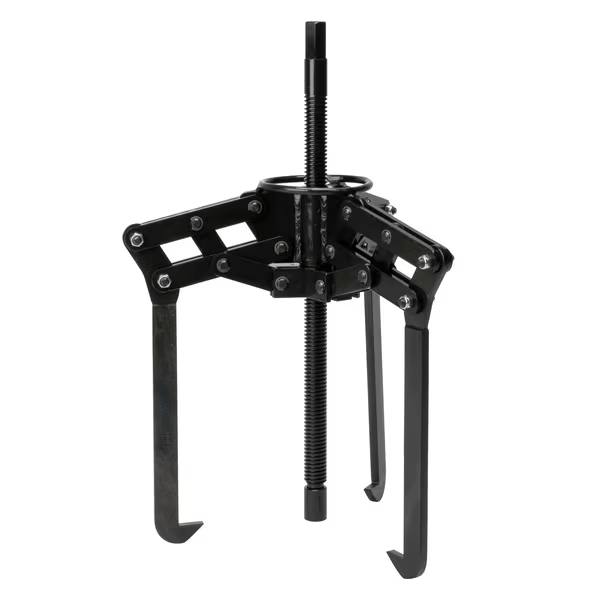

1x Puller TMMP 10
1x Printed instructions for use
|
Logistics
| Product net weight | 8.5 kg |
| eClass code | 23-05-19-01 |
| UNSPSC code | 27111712 |
Spare part
| Spare arm for Heavy duty jaw puller | 3 x TMMP 10-1 |
| Spare spindle Heavy duty jaw puller | TMMP 10-5 |
Accessory
| Extremely high viscosity bearing grease with solid lubricants | LGEV 2/0.035 |
| Accessory arm for Heavy duty jaw puller | 3 x TMMP 10-2 |
| Accessory arm for Heavy duty jaw puller | 3 x TMMP 10-3 |
| Accessory arm for Heavy duty jaw puller | 3 x TMMP 10-4 |
| Tri-section pulling plate | TMMS 100 |
| Puller protection blanket | TMMX 280 |
(TMMP10)
