Description
Properties

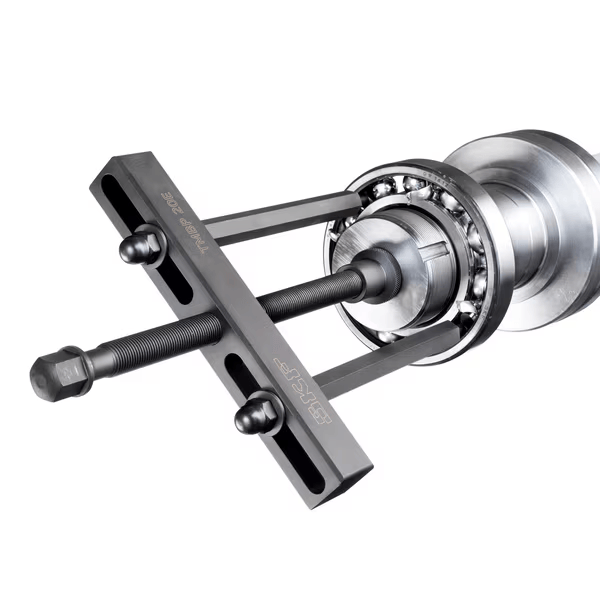

| Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) | Yes |
| Suitable for bearing dismounting from a Tapered seating (conical shaft) | No |
| Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) | No |
| Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) | Yes |
| Suitable for workpiece dismounting from a Housing | No |
| Suitable for bearing type(s) | SKF Deep Groove Ball Bearings (DGBB’s) |
| Bearing bore diameter range | 10 – 100 mm |
| Number of arms | 2 |
| Number of arm extension pieces | 4 included |
| Spindle torque (max) | 155 N·m |
| Pulling force (max) | 55 kN |
| Max bearing depth |
With standard arm: 147 mm
With arm and 1 extension rod, 347 mm
With arm and 2 extension rods 547 mm
|
| Total Arm length |
Arm rod: 225 mm
Arm rod + extension rod: 425 mm
Arm rod + 2 extension rods: 625 mm
|
| Effective spindle length | 225 mm |
| Spindle nose piece | Yes , diameter 39mm |
| Spindle head, hexagon size | 22 |
| Total number of bearing adapters in kit | 6 sets of 2 |
| Total number of spindles in kit | 1 |
| Material | Medium carbon steels and alloy engineering steels, hardened and tempered |
| Coating | Black phosphated |
| Colour | Black metallic |
| Content |
6x sets of 2 bearing adapters, size A to F
1x Beam
1x spindle with nose piece
2x arm rods
4x arm extension rods
4x washers
2x nuts
1x printed Instruction for Use (language free)

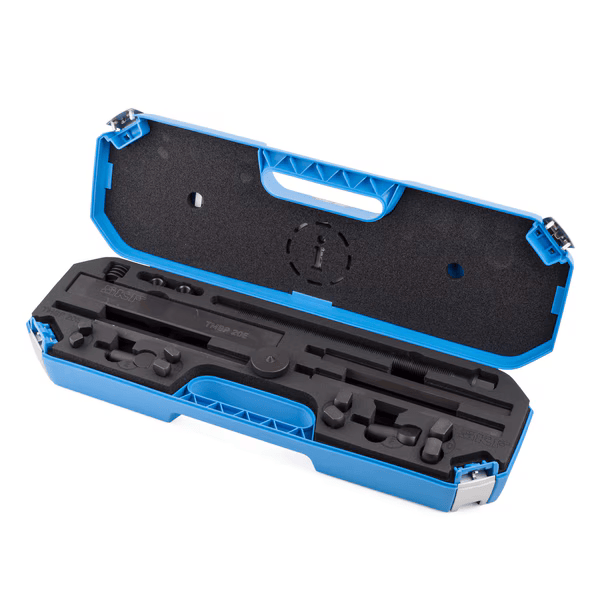

1x Carrying case (size X)
|
| Total product weight | 5.66 kg |
Logistics
| Product net weight | 6.46 kg |
| eClass code | 23-05-19-01 |
| UNSPSC code | 27111712 |
Accessory
| Extremely high viscosity bearing grease with solid lubricants | LGEV 2/0.035 |
| Puller protection blanket | TMMX 280 |
Spare part
| Spare tool case (empty) with inlay for Blind housing puller | TMBP 20E-CX |
(TMBP20E)
