Description
Properties
| Recommended applications |
Used for visual inspection of rotating machines with e.g. bearings, gears, belts, fans and chains
Also used in textile industry for inspection of patterns
|
| Flash source | 6 LED’s |
| Color of light | 5000 – 8000 K |
| Laser speed measurement | Yes |
| Phase shift | Yes with slow motion function |
| Display | LCD Color with LED backlighting |
| Software features | Flash mode, Tachometer mode, External trigger mode |
| External trigger range (in Flashes per Minute) | 30 – 300000 FPM |
| External trigger connection |
Plug: 3.5 mm (included)
Input: 3–30 V, max. 5 mA (NPN)
Output: up to 30 V, max. 50 mA (NPN)
|
| Signal modification |
Edge selection
Multiplier
Divider
Delay
|
| Auto switch off | 10 min, 5 min, off |
| Tripod connector | Yes, (1/4-20 UNC) |
| Housing material | PC/ABS blend, overmoulded with TPU rubber |
| Colour |
Blue
Dark Grey
|
| Battery | 3x AA (Alkaline (incl.) or Rechargable) |
| Battery life | 3.75 h |
| Power adapter | No |
| Instrument dimensions | 78 x 225 x 50 mm |
| Instrument weight | 300 g |
| Degree of protection (IP) | IP 30 |
| Operating temperature range | 0 – 40 °C |
| Recommended storage temperature | -20 – 45 °C |
| Relative humidity | 10 to 90%, non-condensing |
| Case dimensions (l x h x w) | 260 x 85 x 180 mm |

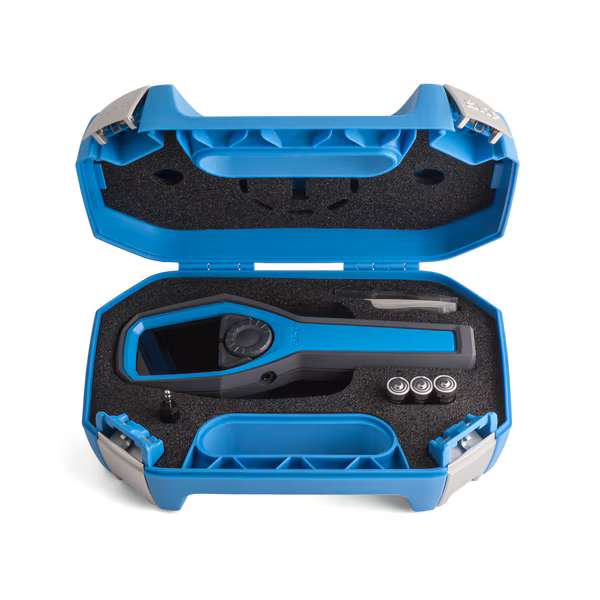

| Content |
Stroboscope
3x AA batteries
Reflective tape (TKRT -RTAPE)
External trigger plug (TKRS 31-PLUG)
Instructions for use (MP5487)
1x Carrying case (size A)
|
Logistics
| Product net weight | 0.82 kg |
| eClass code | 23-05-19-01 |
| UNSPSC code | 41112202 |
Refill
| Spare reflective tape for Tachometers | TKRT-RTAPE |

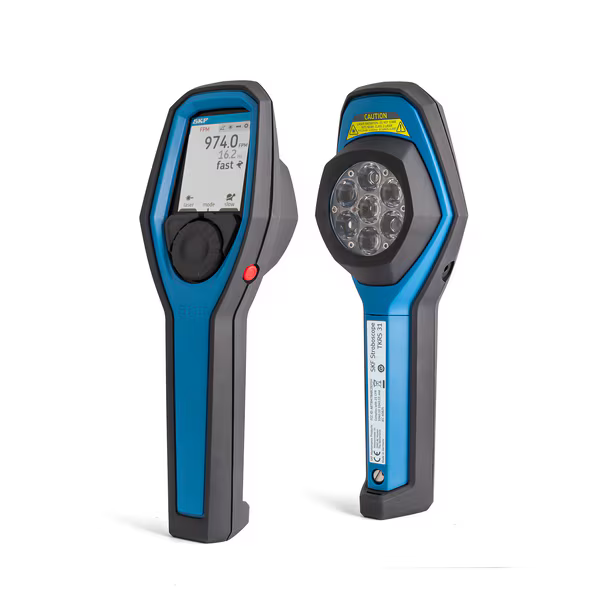

(TKRS31)
