TKBA 40

Belt alignment tool TKBA 40

High-accuracy tool for V-belt pulley alignment

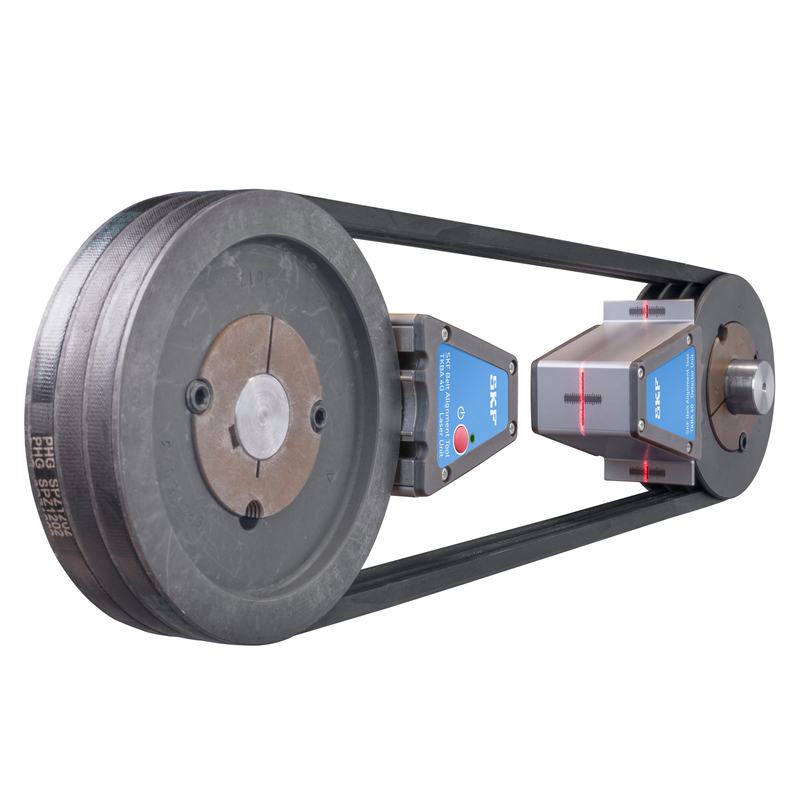

The Belt Alignment Tool TKBA 40 aligns V-belt pulleys in the grooves. V–guides and powerful magnets allow the TKBA 40 to be fitted in the grooves of the pulley. With only two components, a laser–emitting unit and a receiver unit, the belt alignment tool is easy to use and allows fast and accurate belt alignments. The three-dimensional target area on the receiver unit help the easy detection of misalignment as well as its nature; whether it is horizontal, vertical, parallel or a combination of all three.

  • Powerful magnets allow fast and easy attachment
  • Three-dimensional target area simplifies detection and correction of misalignments
  • Facilitates simultaneous adjustment of tension and alignment
  • V-guides included for a wide range of V-belt pulleys
  • Aligns grooves of a V-belt pulley rather than its face, allowing optimum alignment of pulleys of unequal width or with dissimilar faces
  • Special side adaptor for alignments of multi-ribbed and timing belt pulleys as well as sprockets is available as accessory

Dimensions

Transmitter dimensions (l x h x w) 70 x 74 x 61 mm
Target dimensions (l x h x w) 70 x 74 x 61 mm
Case dimensions (l x h x w) 260 x 85 x 180 mm
Add to Enquiry
SKU: TKBA 40-SKF Categories: ,
SKF

Description

Properties

Recommended applications Most machines using V belts
Mounting Magnetic, groove mounted (side mounting possible with optional adapter TMEB A2)
Laser type Visible red line laser
Laser wavelength 632 nm
Laser power max 1 mW
Laser line length (at 2 m) 3 m
Measurement accuracy angular (at 2 m) 0.2 °
Measurement accuracy offset 0.5 mm
Transmitter weight 0.33 kg
Target type 3D target
Target weight 0.26 kg
Housing material
Extruded anodized aluminium
Polyamide endcaps
Colour
Grey
Black
Blue
Battery 2x AAA Alkaline type IEC LR03 (included)
Battery life 20 h
Certifications Calibration certificate with two year validity
Degree of protection (IP) IP 40
Operating temperature range 0  –  40 °C
Recommended storage temperature -20  –  65 °C
Relative humidity 10 to 90%, non-condensing

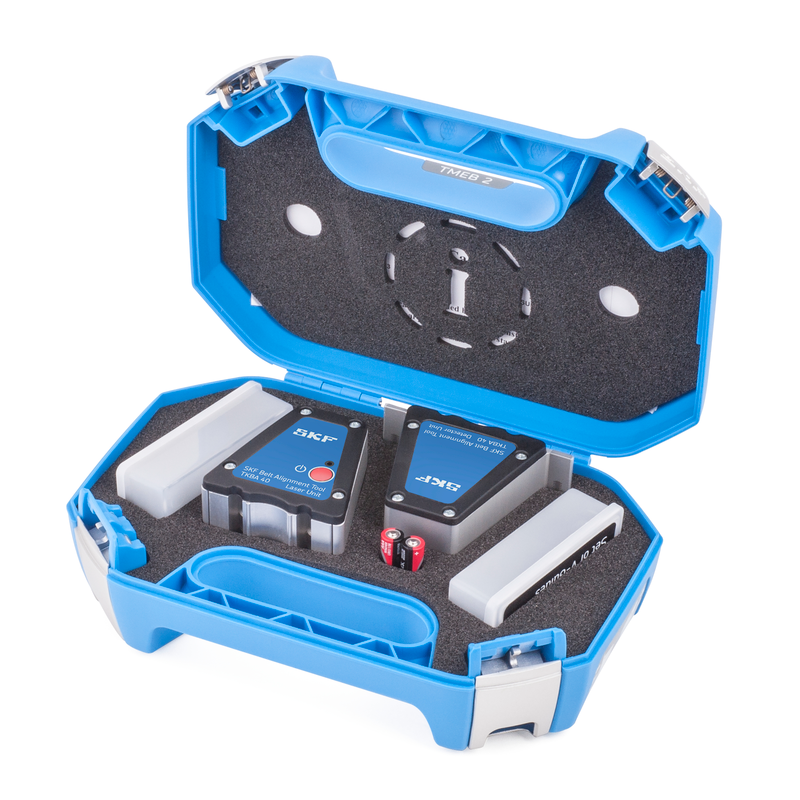

Content
1x TKBA 40 transmitter unit
1x TKBA 40 receiver unit
2x AAA batteries
4x sizes of V-guides, 3x of each size
1x printed instructions for use
1x Carrying case (size A)
Total product weight 1.2 kg

Accessory

Side adapter set for TMEB 2 and TKBA 40 TMEB A2

Spare part

SKF Tool Case, size A, generic, no inlay, empty TDTC 1/A
Tool case (empty) with inlay for TKBA 40 TKBA 40-CA
Set of V-guide for TKBA 40, TMEB 2 with guides (each 3 pcs): 22 mm short, 22 mm long, 40 mm short, 40 mm long TKBA G2

(TKBA40)
