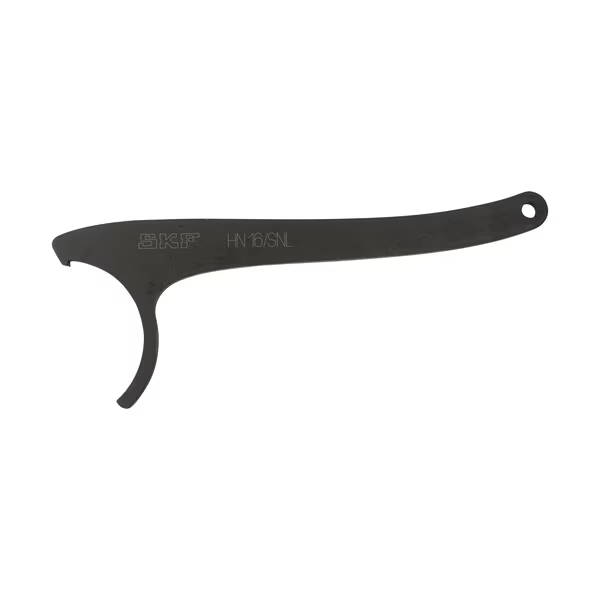

Hook spanner for use inside split plummer (pillow) block housings
The unique protected design of this SKF Hook spanner, allows it to tighten and loosen lock nuts whilst these are inside SKF split plummer (pillow) block housings (SNL).
Alternatively it can be used as regular hook spanner. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves. The SKF hook spanner HN 16/SNL, is designed for nuts with an outer diameter of 105 mm. In particular for lock nuts of series KM 16, KMK 16, KMFE 16, KMT 15, AN 16.
- Unique design SKF Hook spanner, allows it to tighten and loosen lock nuts whilst these are inside SKF split pillow block housings (SNL)
- Can be used as regular hook spanner
- Will fit in tight spaces
- Long smooth handle to generate a high torque
- Drilled hole for easy hanging storage
- Laser-engraved designation for easy identification
- They fit on a variety of locknuts with outer diameter of 105 mm
Dimensions
| Outer diameter lock nut |
105 mm |
| Working length |
325 mm |
| Thickness |
10 mm |
| Length |
323 mm |
