Description
Logistics
| Product net weight | 4.21 kg |
| eClass code | 23-05-19-01 |
| UNSPSC code | 27111712 |
Properties
| Recommended applications | For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft |
| Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) | Yes |
| Suitable for bearing dismounting from a Tapered seating (conical shaft) | Yes |
| Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) | Yes |
| Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) | No |
| Suitable for workpiece dismounting from a Housing | Yes, with spindle support (not included) |
| Suitable for bearing type(s) | All |
| Dismounting force generation | Spindle |
| Number of arms | 2 |
| Width of grip external | 74 – 254 mm |
| Width of grip internal | 132 – 254 mm |
| Effective arm length | 183 mm |
| Total Arm length | 245 mm |
| Claw height | 10 mm |
| Claw length | 22 mm |
| Claw width | 28 mm |
| Spindle torque (max) | 160 N·m |
| Spindle head, hexagon size | 24 |
| Puller or Adapter hexagon size | 32 mm |
| Spindle nose piece | No, optional |
| Material | Alloy engineering steels, hardened and tempered |
| Coating | Zinc coated |
| Content |

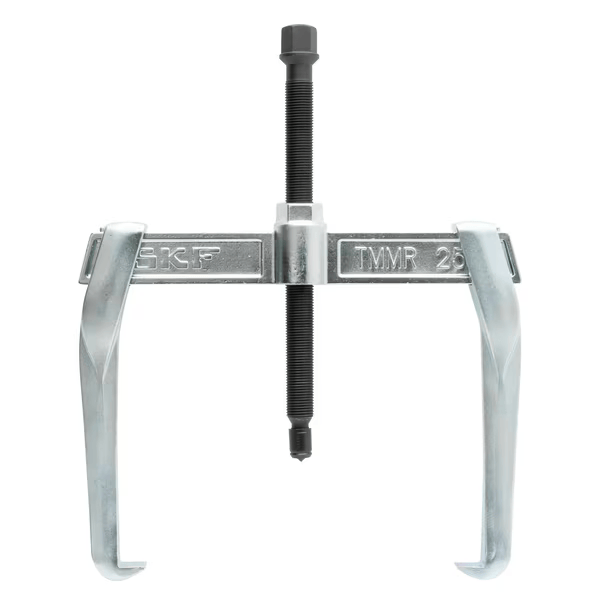

1x Puller TMMR 250F
1x Tube of spindle grease LGEV2/0.035
1x Printed instructions for use
|
Parent product
| Reversible jaw puller set | TMMR 4F/SET |
| Reversible jaw puller set | TMMR 8F/SET |
| Reversible jaw puller set | TMMR 8XL/SET |
Refill
| Extremely high viscosity bearing grease with solid lubricants | LGEV 2/0.035 |
Spare part
| Spare arm for Reversible jaw puller | 2 x TMMR 250F-1 |
| Spare beam for Reversible jaw puller | TMMR 250F-2 |
| Spare spindle for Reversible jaw puller | TMMR 250F-3 |
Accessory
| Spare nose piece spring-loaded for long arms of Reversible jaw pullers | TMMR 16/35XL-5 |
| Accessory long arms set, with extra nose piece for Reversible jaw pullers | TMMR 25/35XL-1 |
| Puller protection blanket | TMMX 350 |
Recommended product
| Reversible jaw puller | TMMR 40F |
| Reversible jaw puller | TMMR 60F |
| Reversible jaw puller | TMMR 80F |
| Reversible jaw puller | TMMR 120F |
| Reversible jaw puller | TMMR 160F |
| Reversible jaw puller | TMMR 200F |
| Reversible jaw puller | TMMR 350F |
| Reversible jaw puller, long arms | TMMR 160XL |
| Reversible jaw puller, long arms | TMMR 200XL |
| Reversible jaw puller, long arms | TMMR 250XL |
| Reversible jaw puller, long arms | TMMR 350XL |
(TMMR250F)
