Description
Properties
| Recommended applications |
For manual mounting of bearings, bushings, seals, rings, pulleys in industrial, construction and agricultural applications
For dismounting of SKF DGBB’s from various applications with straight shafts and or housings.
|
| Mounting force generation | Hammer |
| Suitable for workpiece mounting on a Cylindrical seating (straight shaft) | Yes |
| Suitable for bearing mounting on a Tapered seating (conical shaft) | Not recommended |
| Suitable for bearing mounting on a Sleeve (adapter or withdrawal) | Not recommended |
| Suitable for workpiece mounting in a Blind arrangement (housing with shaft) | Yes |
| Suitable for workpiece mounting in a Housing | Yes |
| Dismounting force generation | Mechanical spindle or Sliding hammer |
| Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) | Yes |
| Suitable for bearing dismounting from a Tapered seating (conical shaft) | No |
| Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) | No |
| Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) | Yes |
| Suitable for workpiece dismounting from a Housing | Yes |
| Suitable for bearing type(s) |
Mounting: All types
Dismounting SKF Deep Groove Ball Bearings (DGBB’s)
|
| Allowed temperature of the mounting object | -54 – 198 °F |
| Number of arms | 5 sets of 3, named A2 to A6 |
| Number of rings | 36 |
| Models of rings | 2, named B and C |
| Number of sleeves | 2, named B and C |
| Total number of spindles in kit | 2 |
| Spindle nose piece | No |
| Hammer type | Dead blow hammer |
| Hammer weight | 1.984 lb |
| Hammerhead | Sturdy polyurethane (PU) preventing damage to the sleeve heads |
| Material |
Rings: Impact resistant polyamide (PA)
Sleeve material: Glassfiber filled polyamide (PA)
Hammer: Steel,PU
Puller: Medium carbon steels and alloy engineering steels, black phosphated, hardened and tempered
|
| Colour |
Hammer: Black/Blue
Puller: Black metallic
Rings: Black
Sleeves: Black
|

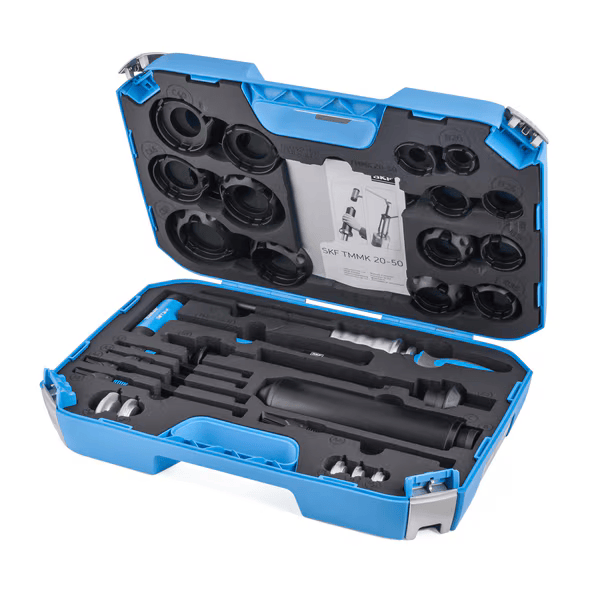

| Content |
5x sets of 3 arms, size A1 to A5
2x spindles, size S1 and S2
1x Spindle holder
1x Sliding hammer
12x Impact rings sizes B and 9x Impact rings size C
Impact sleeves sizes B and C
1x Dead blow hammer
6x Spindle support rings
1x printed Instruction for Use (language free)
1x Carrying case (size C)
|
| Total product weight | 18.739 lb |
Logistics
| Product net weight | 8.5 kg |
| eClass code | 23-05-19-01 |
| UNSPSC code | 27111712 |
Spare part
| Spare impact sleeve for Bearing fitting tool | TMFT 36 B |
| Spare impact ring for Bearing fitting tool | TMFT 36 B20-42 |
| Spare impact ring for Bearing fitting tool | TMFT 36 B20-47 |
| Spare impact ring for Bearing fitting tool | TMFT 36 B20-52 |
| Spare impact ring for Bearing fitting tool | TMFT 36 B25-47 |
| Spare impact ring for Bearing fitting tool | TMFT 36 B25-52 |
| Spare impact ring for Bearing fitting tool | TMFT 36 B25-62 |
| Spare impact ring for Bearing fitting tool | TMFT 36 B30-55 |
| Spare impact ring for Bearing fitting tool | TMFT 36 B30-62 |
| Spare impact ring for Bearing fitting tool | TMFT 36 B30-72 |
| Spare impact ring for Bearing fitting tool | TMFT 36 B35-62 |
| Spare impact ring for Bearing Fitting tool | TMFT 36 B35-72 |
| Spare impact ring for Bearing fitting tool | TMFT 36 B35-80 |
| Spare impact sleeve for Bearing fitting tool | TMFT 36 C |
| Spare impact ring for Bearing fitting tool | TMFT 36 C40-68 |
| Spare impact ring for Bearing fitting tool | TMFT 36 C40-80 |
| Spare impact ring for Bearing fitting tool | TMFT 36 C40-90 |
| Spare impact ring for Bearing fitting tool | TMFT 36 C45-10 |
| Spare impact ring for Bearing fitting tool | TMFT 36 C45-75 |
| Spare impact ring for Bearing fitting tool | TMFT 36 C45-85 |
| Spare impact ring for Bearing fitting tool | TMFT 36 C50-11 |
| Spare impact ring for Bearing fitting tool | TMFT 36 C50-80 |
| Spare impact ring for Bearing fitting tool | TMFT 36 C50-90 |
| Spare slide hammer small for Internal bearing puller kit | TMIP S1 |
| Spare arm for Deep groove ball bearing puller kit | 3 x TMMD 100-A2 |
| Spare arm for Deep groove ball bearing puller kit | 3 x TMMD 100-A3 |
| Spare arm for Deep groove ball bearing puller kit | 3 x TMMD 100-A4 |
| Spare arm for Deep groove ball bearing puller kit | 3 x TMMD 100-A5 |
| Spare arm for Deep groove ball bearing puller kit | 3 x TMMD 100-A6 |
| Spare spindle with nut, small, for Deep groove ball bearing puller kit | TMMD 100-S1 |
| Spare spindle with nut, big, for Deep groove ball bearing puller kit | TMMD 100-S2 |
Recommended product
| Combined mounting and dismounting kit for deep groove ball bearings | TMMK 10-35 |
(TMMK20-50) (Combi kits)
