TMMK 10-35

Combined mounting and dismounting kit for deep groove ball bearings

The SKF TMMK series is designed for the quick and precise mounting and dismounting of deep groove ball bearings from and in shafts, housings and blind housings.

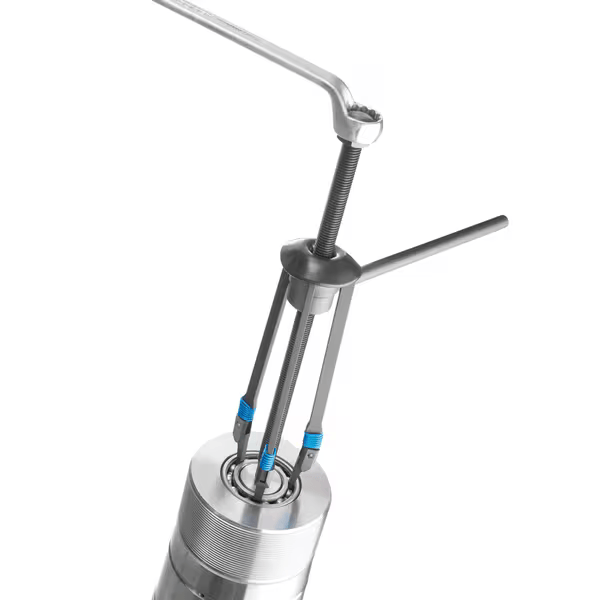

For mounting, a multi-purpose fitting tool is included which is suitable for mounting bearings as well as bushings, seal rings, belt pulleys and other similar products. The puller for dismounting grips inside the deep groove bearings raceway with especially designed claws.

  • For selected deep groove bearing the one kit to dismount and mount them
  • Allows dismounting bearings from all bearing arrangements
  • Easy to select and assemble puller
  • Dismounting force generation by hammer or spindle
  • Multi-purpose fitting tool included
  • Mounting force generation with a dead blow hammer for higher efficiency

Dimensions

Workpiece bore diameter
For mounting: 10 to 35 mm
For dismounting 10 to 85 mm
Workpiece depth (max)
Dismounting: with arms A1: 135 mm, A2: 135 mm, A3: 137 mm, A4: 162 mm, A5: 167 mm
Mounting: with Sleeve A: 221 mm, B: 221 mm
Total Arm length
Arm A1: 188 mm
Arm A2: 189 mm
Arm A3: 193 mm
Arm A4: 226 mm
Arm A5: 231 mm
Effective spindle length
Spindle S1: 214 mm
Spindle S2: 214 mm
Total spindle length
Spindle S1: 275 mm
Spindle S2: 288 mm
Spindle head, hexagon size
Spindle S1: 19 mm
Spindle S2: 24 mm
Sleeve outer lengths
A: 228 mm
B: 235 mm
Sleeve, outer diameter
A: 25 mm
B: 45 mm
Hammer length 12.4016 in
Hammer width 4.5276 in
Case dimensions (l x h x w) 530 x 110 x 360 mm

Accessory

Extremely high viscosity bearing grease with solid lubricants LGEV 2/0.035
Puller protection blanket TMMX 210

TMMK 10-35 is suitable for the following SKF bearings:



* Mounting *
Deep groove ball bearing Deep groove ball bearing (sealed) Self aligning ball bearing
6000-6007 62200-62207 1200-1207
6200-6207 62300-62307 129
6300-6307 63000-63007 1301-1307
6403-6407 2200-2207
629 Tapered roller bearing 2301-2307
62/22 30203-30207 11207
62/28 30302-30307
63/22 31305-31307 Spherical roller bearing
63/28 32004-32007 21305-21307
16002-16007 32205-32207 22205/20
16100-16101 32303-32307 22205-22207
98203-98206 33205-33207
Cylindrical roller bearing Single-row angular contact ball bearing CARB toroidal roller bearing
N 1005-N 1007 7000-7007 C 2205-C 2207
N 202-N 207 7200-7207 C 6006
N 2203-N 2207 7301-7307
N 2304-N 2307 Double-row angular contact ball bearing
N 3004-N 3007 3200-3207
N 303-N 307 3302-3307
* Dismounting *
Deep groove ball bearing
60.. series 62.. series 63.. series 64.. series 16… series
6000–6017 6200–6211 6300–6307 6403 16002–16003
62/22 63/22 16011
62/28 63/28
Add to Enquiry
SKU: TMMK 10-35-SKF Categories: ,
SKF

Description

Properties

Mounting force generation Hammer
Suitable for workpiece mounting on a Cylindrical seating (straight shaft) Yes
Suitable for bearing mounting on a Tapered seating (conical shaft) Not recommended
Suitable for bearing mounting on a Sleeve (adapter or withdrawal) Not recommended
Suitable for workpiece mounting in a Blind arrangement (housing with shaft) Yes
Suitable for workpiece mounting in a Housing Yes
Dismounting force generation Mechanical spindle or Sliding hammer
Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes
Suitable for bearing dismounting from a Tapered seating (conical shaft) No
Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) No
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) Yes
Suitable for workpiece dismounting from a Housing Yes
Suitable for bearing type(s)
Mounting: All types
Dismounting SKF Deep Groove Ball Bearings (DGBB’s)
Allowed temperature of the mounting object -54  –  198 °F
Number of arms 5 sets of 3, named A1 to A5
Number of rings 24
Models of rings 2, named A and B
Number of sleeves 2, named A and B
Total number of spindles in kit 2
Spindle nose piece No
Hammer type Dead blow hammer
Hammer weight 1.984 lb
Hammerhead Sturdy polyurethane (PU) preventing damage to the sleeve heads
Material
Rings: Impact resistant polyamide (PA)
Sleeve material: Glassfiber filled polyamide (PA)
Hammer: Steel,PU
Puller: Medium carbon steels and alloy engineering steels, black phosphated, hardened and tempered
Colour
Hammer: Black/Blue
Puller: Black metallic
Rings: Black
Sleeves: Black

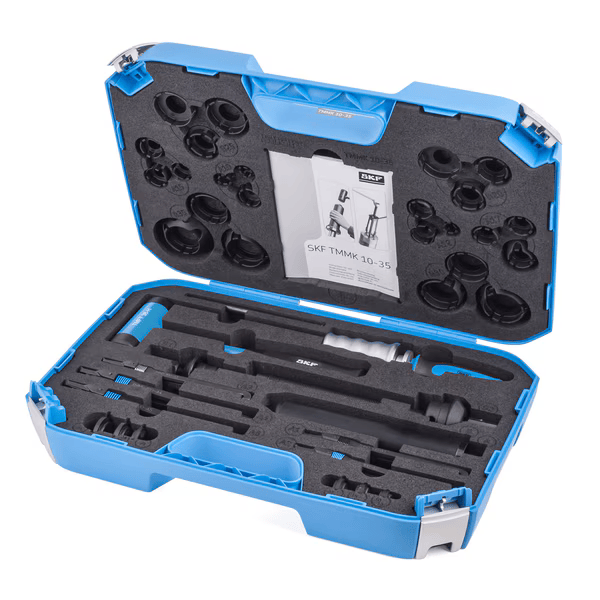

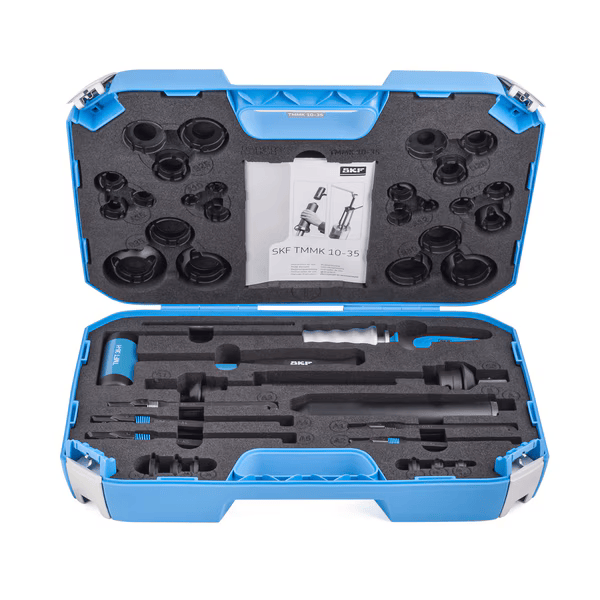

Content
5x sets of 3 arms, size A1 to A5
2x spindles, size S1 and S2
1x Spindle holder
1x Sliding hammer
24x Impact rings sizes A and B
Impact sleeves sizes A and B
1x Dead blow hammer
6x Spindle support rings
1x printed Instruction for Use (language free)
1x Carrying case (size C)
Total product weight 16.755 lb

Logistics

Product net weight 7.63 kg
eClass code 23-05-19-01
UNSPSC code 27111712

Spare part

Spare impact sleeve for Bearing fitting tool TMFT 36 A
Spare impact ring for Bearing fitting tool TMFT 36 A10-26
Spare impact ring for Bearing fitting tool TMFT 36 A10-30
Spare impact ring for Bearing fitting tool TMFT 36 A10-35
Spare impact ring for Bearing fitting tool TMFT 36 A12-28
Spare impact ring for Bearing fitting tool TMFT 36 A12-32
Spare impact ring for Bearing fitting tool TMFT 36 A12-37
Spare impact ring for Bearing fitting tool TMFT 36 A15-32
Spare impact ring for Bearing fitting tool TMFT 36 A15-35
Spare impact ring for Bearing fitting tool TMFT 36 A15-42
Spare impact ring for Bearing fitting tool TMFT 36 A17-35
Spare impact ring for Bearing fitting tool TMFT 36 A17-40
Spare impact ring for Bearing fitting tool TMFT 36 A17-47
Spare impact sleeve for Bearing fitting tool TMFT 36 B
Spare impact ring for Bearing fitting tool TMFT 36 B20-42
Spare impact ring for Bearing fitting tool TMFT 36 B20-47
Spare impact ring for Bearing fitting tool TMFT 36 B20-52
Spare impact ring for Bearing fitting tool TMFT 36 B25-47
Spare impact ring for Bearing fitting tool TMFT 36 B25-52
Spare impact ring for Bearing fitting tool TMFT 36 B25-62
Spare impact ring for Bearing fitting tool TMFT 36 B30-55
Spare impact ring for Bearing fitting tool TMFT 36 B30-62
Spare impact ring for Bearing fitting tool TMFT 36 B30-72
Spare impact ring for Bearing fitting tool TMFT 36 B35-62
Spare impact ring for Bearing Fitting tool TMFT 36 B35-72
Spare impact ring for Bearing fitting tool TMFT 36 B35-80
Spare dead blow hammer for Bearing fitting tool TMFT 36-H
Spare slide hammer small for Internal bearing puller kit TMIP S1
Spare arm for Deep groove ball bearing puller kit 3 x TMMD 100-A1
Spare arm for Deep groove ball bearing puller kit 3 x TMMD 100-A2
Spare arm for Deep groove ball bearing puller kit 3 x TMMD 100-A3
Spare arm for Deep groove ball bearing puller kit 3 x TMMD 100-A4
Spare arm for Deep groove ball bearing puller kit 3 x TMMD 100-A5
Spare spindle with nut, small, for Deep groove ball bearing puller kit TMMD 100-S1
Spare spindle with nut, big, for Deep groove ball bearing puller kit TMMD 100-S2
Spare tool case (empty) with inlay for Combined mounting and dismounting kit for deep groove ball bearings TMMK 10-35-CC

Recommended product

Combined mounting and dismounting kit for deep groove ball bearings TMMK 20-50

(TMMK10-35) (Combi kits)

Additional information

Weight 7.63 kg
