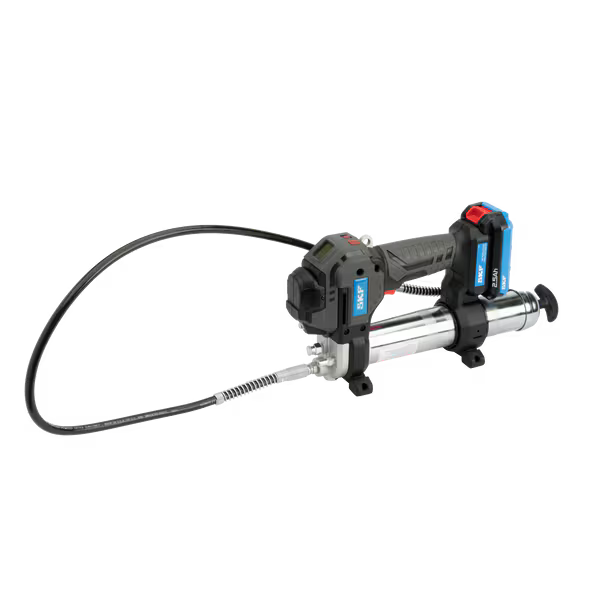

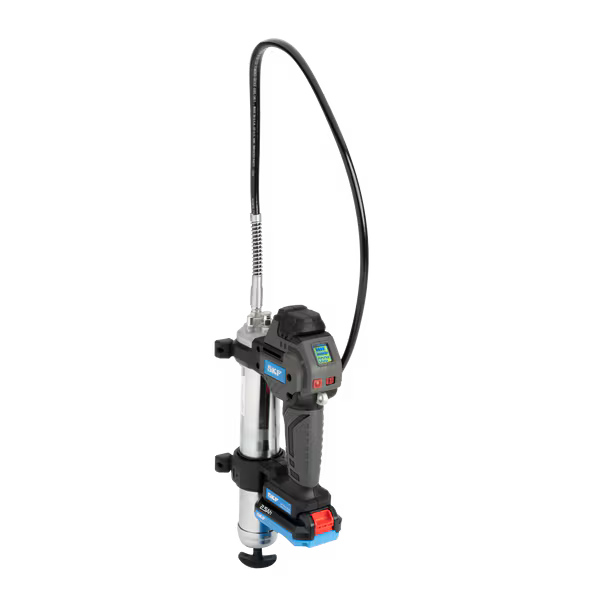

TLGB 21/110V

Battery driven grease gun

Developed for maximum operator efficiency, the SKF Battery Driven Grease Gun TLGB 21 includes an integrated grease meter to help prevent over- and under-lubrication.

This unique tool features a durable, ergonomic design with a four-point stand for operator comfort and convenience and a 2.5 Ah lithium-ion battery for long term use. The tool’s display indicates battery charge level, amount of grease dispensed, pump/motor speed and blocked lubrication points. This powerful and versatile grease gun provides two flow rates – low and high – and can dispense up to 24 grease cartridges per battery charge. The TLGB 21 can deliver pressures up to 690 bar (10000 psi) and features a built-in light to illuminate the work area.

  • Integrated grease meter tracks dispensed grease
  • Display indicates lithium battery charge level and remaining grease level
  • LED light illuminates work area to help locate grease fittings in dimly lit environments
  • 20V 2.5Ah Lithium-ion battery dispenses up to 24 grease cartridges per charge and maintains stable energy output
  • Filler nipple facilitates clean and simple filling from drums using filler pumps
  • Lightweight, ergonomic design with optimized balance for operator comfort
  • including 120V high capacity battery charger and 48 inch high pressure hose

Dimensions

Case dimensions (l x h x w) 640 x 135 x 380 mm
Hose length 1 220 mm

Performance

Battery capacity 2.5 A·h
Grease output at 70 bar (1000 psi) – High speed 170 ml/min
Grease output at 70 bar (1000 psi) – Low speed 110 ml/min
Maximum pressure 400 bar
SKU: TLGB 21/110V-SKF Categories: ,

Description

Properties

Battery 20V Li-ion battery
Battery charge time (max) 90 min
Battery charger 200-240V, 50-60 Hz
Built-in light Yes
Cartridges per battery charge 15
Content
1x Grease gun
1x 2.5 Ah battery
1x charger
1x instructions for use
1x carrying case
Display Yes, can show Grease meter, Battery capacity level, Cartridge grease level, Alerts of blocked fittings and Alerts of loss of prime
Integrated grease metre Yes
Maximum peak pressure 700 bar
NLGI class of lubricant (max) 2
Number of available pump speeds 2
Operating temperature range -20  –  50 °C
Type Battery driven grease gun

Logistics

Product net weight 6.94 kg
eClass code 23-06-91-06
UNSPSC code 15121902

Spare part

Spare carrying strap for battery driven grease gun TLGB 21-1
Spare Li-Ion battery for battery driven grease gun TLGB 21-2
Spare high pressure hose with coupler for battery driven grease gun TLGB 21-3
Spare grease tube assembly for battery driven grease gun TLGB 21-4
Spare charger for battery driven grease gun TLGB 21-5
Spare charger for battery driven grease gun TLGB 21-6
Accessory Li-Ion battery for battery driven grease gun TLGB 21-9
Grease handling tools – Spare part, accessories TLGB 21-10
