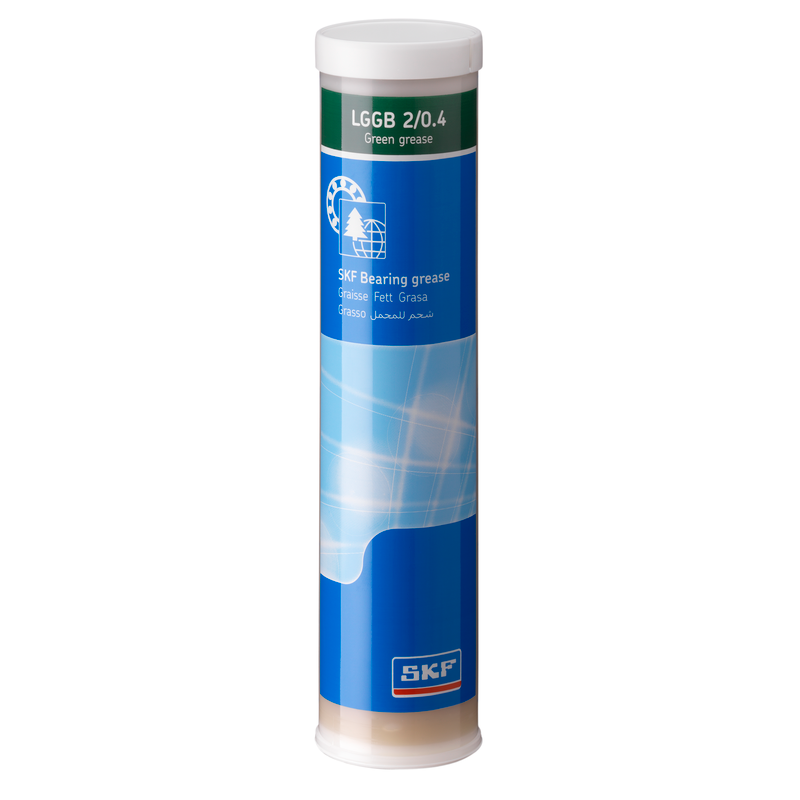

LGGB 2/0.4

EAL Biodegradable bearing grease

An Environmentally Acceptable Lubricant (EAL) made from synthetic ester oil combined with a lithium-calcium thickener.

Its special biodegradable formulation makes it suitable for applications where environmental impact is a concern.

  • Ensuring EAL compliance with contemporary standards on toxicity and biodegradability
  • Good performance in applications with steel-on-steel spherical plain bearings, ball bearings and roller bearings
  • Good low temperature start-up performance
  • Good corrosion inhibiting properties
  • Suitable for medium to high loads

Dimensions

Corrosion protection, Emcor, ISO 11007, Distilled water 0-0

Performance

Suitable for High load applications ⚫⚫⚫⚪⚪
Suitable for Vertical shaft applications ⚫⚫⚫⚪⚪
Suitable for applications with Oscilating movements ⚫⚫⚫⚫⚪
Suitable for applications with Severe vibrations ⚫⚫⚪⚪⚪
Suitable for applications that require Rust protection ⚫⚫⚫⚪⚪
Suitable for applications that require Water resistance ⚫⚫⚫⚫⚪
Suitable for applications that require Frequent start-up ⚫⚫⚫⚫⚪
Operating temperature range -40  –  90 °C
Operating temperature range L, M
Load Range M, H
Load Range Medium – High C/P 4-14
Speed Range L, M
Speed Range Low – Medium
Dropping point (min) ISO 2176 170 °C
Penetration DIN ISO 2137, Worked, 60 strokes (10⁻¹mm) 265 – 295
Penetration DIN ISO 2137, Prolonged (max.), 100 000 strokes, 10⁻¹mm +50
Mechanical stability – Roll stability, ASTM D1831 (max.) 50 hrs at 80°C, 10⁻¹mm +70
Mechanical stability, V2F test, 144 hrs –
Corrosion protection, Emcor, ISO 11007 modified, Water washout –
Corrosion protection, Emcor, ISO 11007 modified, 0.5% NaCl –
Water resistance (max.) DIN 51807/1, 3 hrs at 90 °C 0
Oil separation DIN 51817, 40°C, % 0.8-3
Lubrication ability, R2F test B at 120°C Pass at 100°C
Copper corrosion (max.) DIN 51811 /ASTM D4048, 24 hrs at 100°C –
Rolling bearing grease life (max.) ROF test, L50 life, 10000 r/min, hrs at °C 1000 at 100°C
EP performance – 4 ball – Wear scar (max.) DIN 51350/5, 1400N 1.8 mm
EP performance – 4 ball – Weld load (min.) DIN 51350/4 2600 N
Add to Enquiry
SKU: LGGB 2/0.4-SKF Categories: ,
SKF

Description

Properties

Recommended applications
Applications where grease can leak into the environment
Mining and conveying equipment
Water treatment and irrigation
Locks, dams, bridges
Category Bearing grease
Lubricant LGGB 2
NLGI consistency class 2
Base oil viscosity DIN 51562 at 40 °C 110 mm²/s
Base oil viscosity DIN 51562 at 100 °C 13 mm²/s
Speed (max.) n x dm (x 1000) 300
Speed factor Ball Bearings M: n dₘ < 300 000
Speed factor Cylindrical Ball Bearings (CRB) M: n dₘ ≤ 270 0000
Speed factor other bearings (SRB, TRB, CARB) M: n dₘ ≤ 210 0000
Biodegradable No
DIN 51825 code KPE2K-40
Thickener Lithium calcium
Colour Off white
Base oil type Synthetic ester
Shelf life 2 year
Available for single point lubrication Yes

Logistics

Product net weight 0.4 kg
eClass code 23-06-01-01
UNSPSC code 15121902

Recommended product

EAL Biodegradable bearing grease LGGB 2/18
Biodegredable bearing grease LGGB 2/180
EAL Biodegradable bearing grease LGGB 2/5

Recommended tool

Battery-driven grease guns TLGB 20
Battery-driven grease guns TLGB 20/110V
Battery driven grease gun TLGB 1262-E
Battery driven grease gun TLGB 1886-E
Manual operated grease gun TLGH 1
Manual operated grease gun 1077600
Manual operated grease gun 1077600 H
Manual operated grease gun set 1077600/SET
Manual operated grease gun, one handed LAGH 400

(LGGB2/0.4) (LGGB-2/0.4)
