LGFQ 2/0.4

High load, water resistant and wide temperature food grade grease

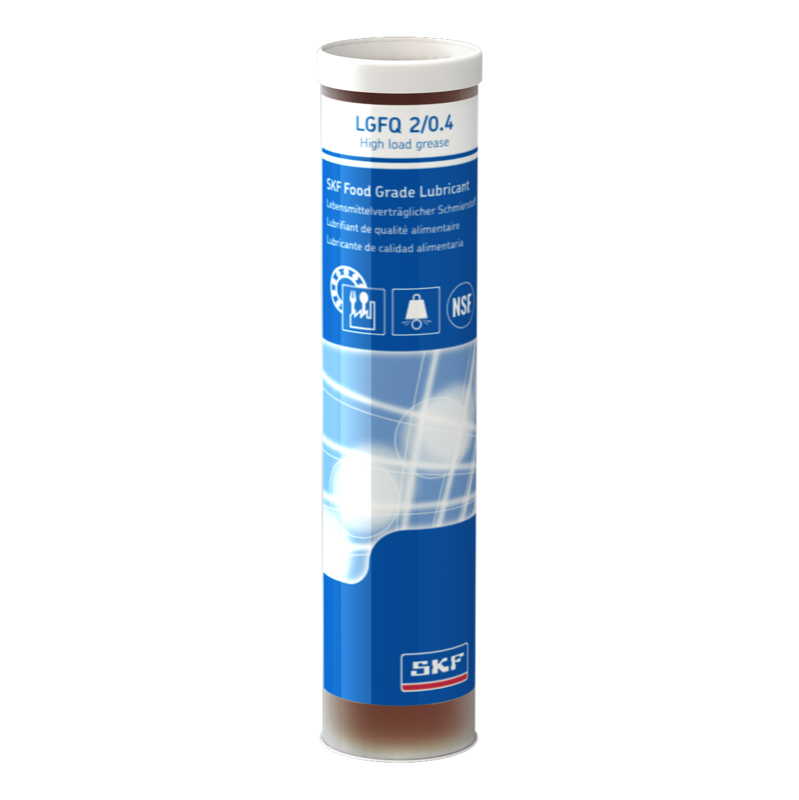

SKF bearing grease LGFQ 2 in 420 ml cartridge

A synthetic oil based grease using the latest complex calcium sulphonate thickener technology. It is suitable for applications subjected to high loads, wet environment and fluctuating temperatures encountered in the food and beverage industry.

  • Excellent corrosion protection
  • Excellent mechanical stability
  • Excellent high load lubricating capacity
  • Good false brinelling protection
  • Good pumpability down to low temperatures
  • NSF H1 registered and Halal and Kosher certified

Dimensions

Corrosion protection, Emcor, ISO 11007, Distilled water 0-0

Performance

Suitable for High load applications ⚫⚫⚫⚫⚫
Suitable for Vertical shaft applications ⚫⚫⚫⚪⚪
Suitable for applications with Oscilating movements ⚫⚫⚫⚫⚫
Suitable for applications with Severe vibrations ⚫⚫⚫⚪⚪
Suitable for applications that require Rust protection ⚫⚫⚫⚫⚪
Suitable for applications that require Water resistance ⚫⚫⚫⚫⚫
Suitable for applications that require Frequent start-up ⚫⚫⚫⚫⚫
Operating temperature range -40  –  140 °C
Operating temperature range L, M, H
Load Range L, VH
Load Range Low – Very High C/P >0
Speed Range VL, L, M
Speed Range Very low – Medium
Dropping point (min) ISO 2176 300 °C
Penetration DIN ISO 2137, Worked, 60 strokes (10⁻¹mm) 280-310
Penetration DIN ISO 2137, Prolonged (max.), 100 000 strokes, 10⁻¹mm +30
Mechanical stability – Roll stability, ASTM D1831 (max.) 50 hrs at 80°C, 10⁻¹mm +30
Mechanical stability, V2F test, 144 hrs –
Corrosion protection, Emcor, ISO 11007 modified, Water washout 0-0
Corrosion protection, Emcor, ISO 11007 modified, 0.5% NaCl 1-1
Water resistance (max.) DIN 51807/1, 3 hrs at 90 °C 1
Oil separation DIN 51817, 40°C, % 1-3
Lubrication ability, R2F test B at 120°C Pass
Copper corrosion (max.) DIN 51811 /ASTM D4048, 24 hrs at 100°C 1b
Rolling bearing grease life (max.) ROF test, L50 life, 10000 r/min, hrs at °C 1000 at 130°C
EP performance – 4 ball – Wear scar (max.) DIN 51350/5, 1400N 1 mm
EP performance – 4 ball – Weld load (min.) DIN 51350/4 4000 N
Add to Enquiry
SKU: LGFQ 2/0.4-SKF Categories: ,
SKF

Description

 Properties

Recommended applications
Pellet presses
Mills
Mixers
Category Food grade bearing grease
Lubricant LGFQ 2
NLGI consistency class 1-2
Base oil viscosity DIN 51562 at 40 °C 320 mm²/s
Base oil viscosity DIN 51562 at 100 °C 30 mm²/s
Speed (max.) n x dm (x 1000) 300
Speed factor Ball Bearings M: n dₘ < 300 000
Speed factor Cylindrical Ball Bearings (CRB) M: n dₘ ≤ 270 0000
Speed factor other bearings (SRB, TRB, CARB) M: n dₘ ≤ 210 0000
Biodegradable No
DIN 51825 code KP1/2N-40
Thickener Calcium sulphonate complex
Colour Brown
Base oil type Synthetic (PAO)
Shelf life 2 year
Certifications
NSF H1
Halal
Kosher
NSF Registration no. 153759
Available for single point lubrication yes

Logistics

Product net weight 0.4 kg
eClass code 23-06-01-01
UNSPSC code 15121902
