Description
Properties
| Alarms | High and low level alarm with warning sound |
| Auto switch off | Automatic, user selectable |
| Battery | 1 x Rechargeable Li-ion Battery 3.7 V, 1 400 mAh, 5.2 W |
| Battery life | 4 h |
| Colour |
Blue
Dark Grey
|
| Connection | Mini USB port, mini USB to USB cable included |

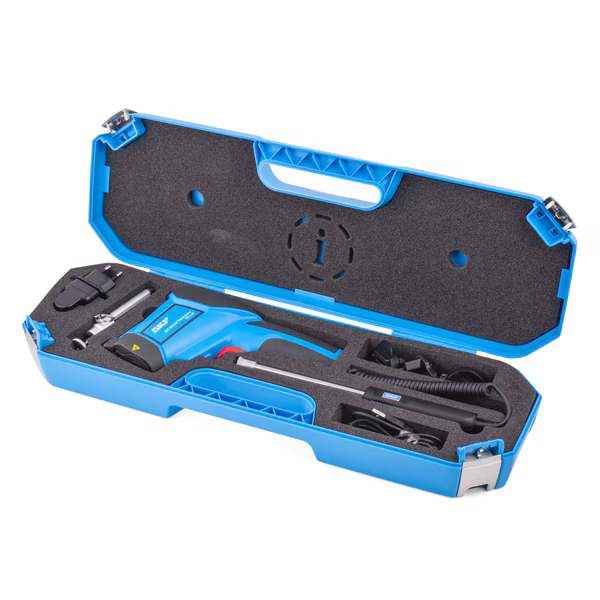

| Content |
1x IR thermometer (TKTL 40)
1x temperature probe (TMDT 2-30)
1x AC battery charger
1x mini USB to USB connection cable
1x mini tripod
1x instructions for use (MP5427)
1x carrying case (size X)
|
| Degree of protection (IP) | IP 40 |
| Display | Colour backlit LCD 2.2″, 320x240px |
| Emissivity | 0.1 – 1 |
| HVAC functions |
Wet bulb
Dew point
Humidity
Air temperature
|
| Housing material | PC/ABS blend, overmoulded with TPU rubber |
| Instrument weight | 460 g |
| Laser power max | 1 mW |
| Laser type | 2 x red targeting laser dots |
| Measurement modes |
Maximum
Minimum
Average
Difference (between min and max)
Probe/IR dual temperature
|
| Memory | 310 MB |
| Operating temperature range | 0 – 50 °C |
| Photo | 640×480 px visual camera (JPG) |
| Power adapter | 110–240 V, 50/60 Hz, EU/US/UK/AUS plugs |
| Probe | K type probe, TMDT 2-30 included (max. 900 °C) |
| Recommended applications | Used in applications where knowing the right temperature is key. E.g. rotating equipment monitoring, HVAC installations, food safety monitoring, fire detection/prevention, and plastic moulding |
| Recommended storage temperature | -10 – 60 °C |
| Relative humidity | 10 to 90%, non-condensing |
| Resolution |
0.1 °C/F (below 999.9)
1 °C/F (above 1000)
|
| Response time | 300 ms |
| Spectral response | 8 – 14 µm |
| Tripod connector | Yes, (1/4-20 UNC) |
| Video | 640×480 px visual camera (3 GP) |
Logistics
| Product net weight | 1.84 kg |
| eClass code | 23-05-19-01 |
| UNSPSC code | 41112202 |
Accessory
| Magnetic surface probe, K-type thermocouple | TMDT 2-31 |
| Temperature probes | TMDT 2-32 |
| Right angle surface probe, K-type thermocouple | TMDT 2-33 |
| Gas and liquid probe, K-type thermocouple | TMDT 2-34 |
| Gas and liquid probe, K-type thermocouple, with thin shank and faster response | TMDT 2-34/1.5 |
| Probe with sharp tip, K-type thermocouple | TMDT 2-35 |
| Pipe clamp probe, K-type thermocouple | TMDT 2-36 |
| Extension cable, K-type thermocouple | TMDT 2-37 |
| Temperature probes | TMDT 2-37/4M |
| Wire probe, K-type thermocouple | TMDT 2-38 |
| High temperature wire probe, K-type thermocouple | TMDT 2-39 |
| Rotating probe, K-type thermocouple | TMDT 2-40 |
| Temperature probes | TMDT 2-41 |
| Ambient temperature probe, K-type thermocouple | TMDT 2-42 |
| Heavy duty surface probe, K-type thermocouple | TMDT 2-43 |
Spare part
| Standard surface probe, K-type thermocouple | TMDT 2-30 |
(TKTL40)
