TKBA 31

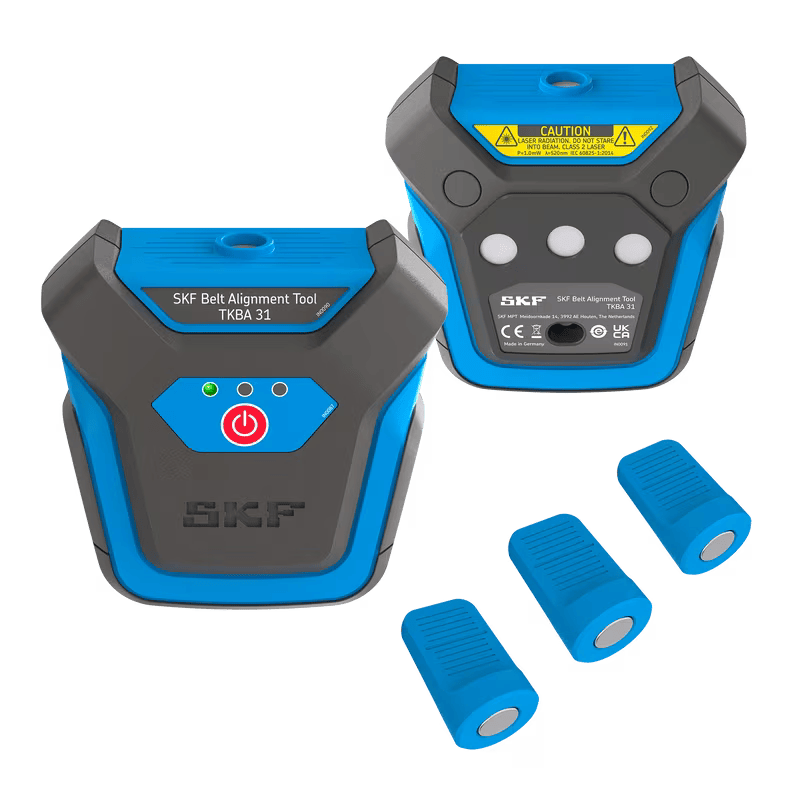

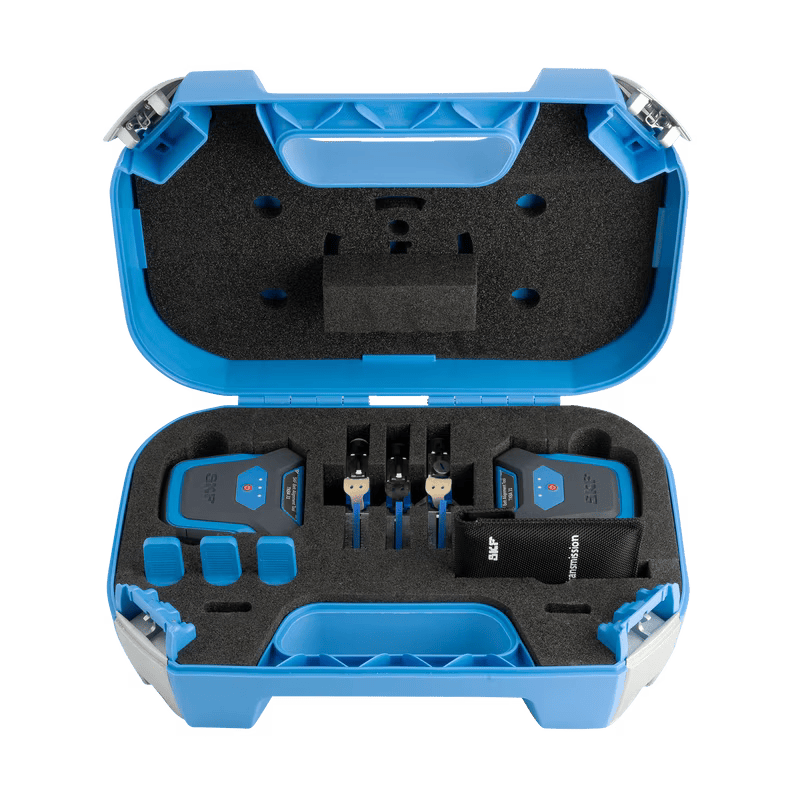

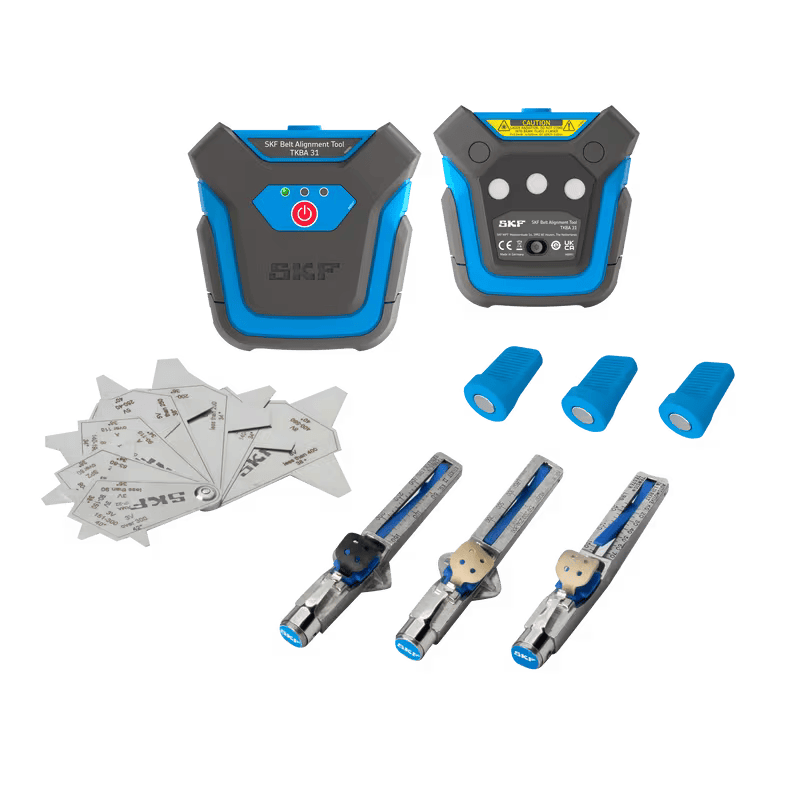

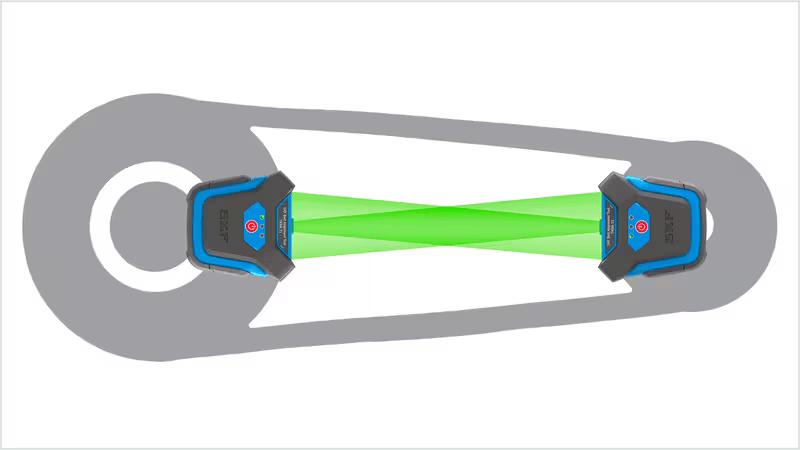

The TKBA 31 alignment tool has two components: a laser-emitting unit and a receiver unit. Each is attached quickly and easily – using a powerful magnet – to the inside or outside face of a belt pulley or chain sprocket. The TKBA 31 can be applied to most machines that use V belts, banded belts and ribbed belts – as well as those with chain sprockets. The TKBA 31 uses a green laser diode and can be used for long distances – including outdoors in sunny conditions. The alignment tool is delivered in a case with additional items like belt tension checkers and extra targets to support a professional alignment job.

• Fast, easy attachment – using powerful magnets
• Two laser receiver units
• Three targets – for simple alignment jobs

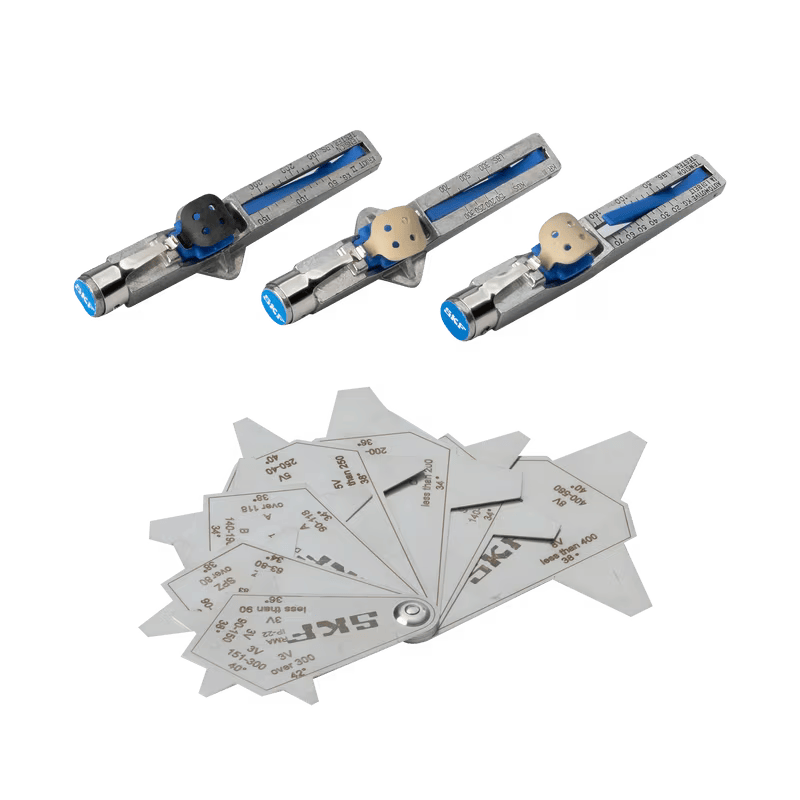

• Belt tension checkers – to support a correct belt tension and avoid wear of the belt and pulley
• Wear check gauges – helps to detect early wear on pulleys
• Simultaneous adjustment of tension and alignment
• Applicable to most machines using V belts, banded belts, ribbed belts – as well as chain sprockets
• Uses a green laser diode which is highly visual in day light and can be used for long distances

Dimensions
