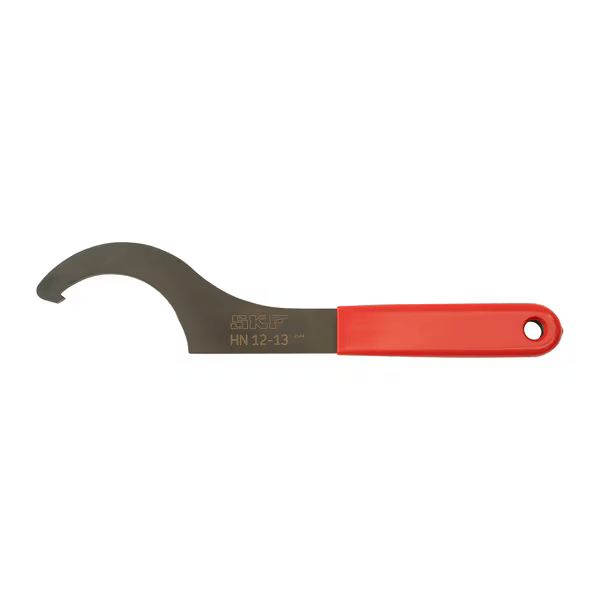

Hook spanner
The SKF Hook spanner, size 12 – 13, is designed for easy tightening and loosening of lock nuts.
They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves. They fit on a variety of lock nuts with outer diameter(s) 80 – 90 mm. To be more specific for locknuts: KM 12, KM 13, KMK 12, KMK 13, KMFE 12, KMFE 13, KMT 11, KMT 12, N 12, N 13 and M52x1,5, M55x1,5, M58x1,5, M60x1,5 (DIN 1804).
- Optimised design allow use in narrow spaces while maintaining maximum force
- Sturdy plastic handle that is oil, dirt and grease resistant to provide a better grip
- Drilled hole for easy hanging storage
- Laser-engraved designation for easy identification
- They fit on a variety of locknuts with outer diameter(s) 80 – 90mm
- Available as part of the set HN 4-16/SET, supplied in a handy tool case
Dimensions
| Outer diameter lock nut range |
80 to 90 mm |
| Working length |
240 mm |
| Thickness |
8 mm |
| Length |
281 mm |
