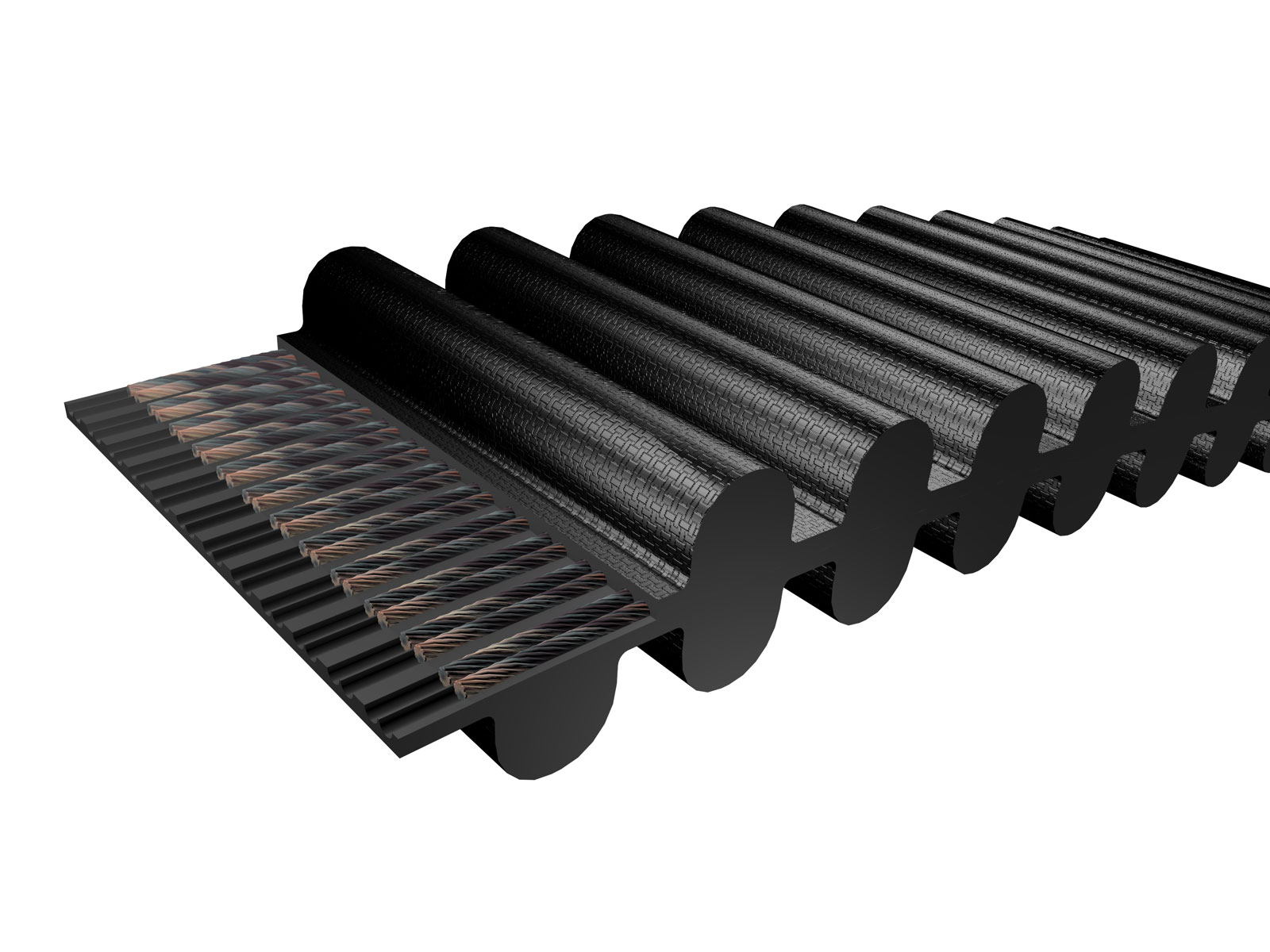

Double-sided high torque drive (HTD) timing belts have teeth on both sides of the belt that interlock with the corresponding grooves on the pulleys to ensure a constant speed ratio. The low stretch glass fibre cords guarantee excellent dimensional stability. The oil and heat resistant neoprene rubber cushion provides high shear resistance.
| Pitch length | 2 100 mm |
| Thickness between teeth | 2.8 mm |
| Tooth height | 14.8 mm |
| Tooth pitch | 14 mm |
| Width | 40 mm |
| Number of teeth | 150 |
| Section | D-14M |
| Product net weight | 1.11 kg |
| eClass code | 23-17-02-90 |
| UNSPSC code | 26111504 |
| Belt tension meter | TKBT 10 |
| Basic belt alignment, pulley side, red laser, 1 laser unit | TKBA 11 |
| Belt alignment, pulley side, red laser, 2 laser units | TKBA 21 |
| Belt alignment, pulley side, red laser, 2 laser units with belt measurement accessories | TKBA 31 |
| Belt alignment, pulley groove | TKBA 40 |
(DA2100-14M-40)
| Weight | 1.11 kg |
|---|---|
| Colour |
