Description
Properties
| Recommended applications |

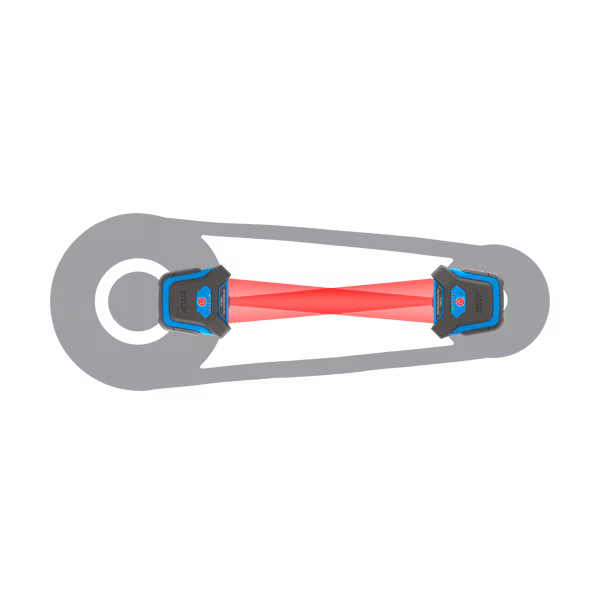

Most machines using V belts, banded belts, ribbed belts, most other belts
Chain sprockets
|
| Mounting | Magnetic, side mounted |
| Laser type | Visible red line laser |
| Laser wavelength | 635 nm |
| Laser power max | 1 mW |
| Laser line length (at 2 m) | 2.4 m |
| Measurement accuracy angular (at 2 m) | 0.02 ° |
| Measurement accuracy offset | 0.5 mm |
| Transmitter weight | 0.25 kg |
| Target type | Second transmitter unit |
| Target weight | 0.25 kg |
| Housing material | PC/ABS blend, overmoulded with TPU rubber |
| Colour |
Blue
Dark Grey
|
| Battery | 3x AAA (Alkaline (incl.) or Rechargable) |
| Battery life | 32 h |
| Degree of protection (IP) | IP 40 |
| Operating temperature range | 0 – 40 °C |
| Recommended storage temperature | -20 – 60 °C |
| Relative humidity | 10 to 90%, non-condensing |
| Content |

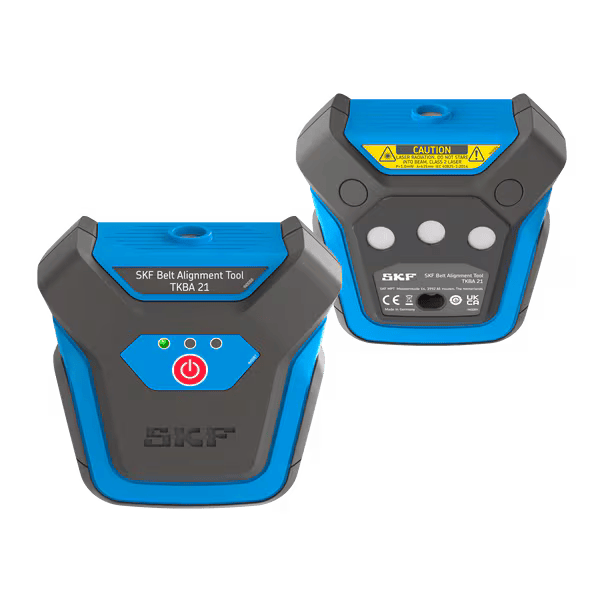

2x TKBA 21 transmitter units
6x AAA batteries
1x printed instructions for use

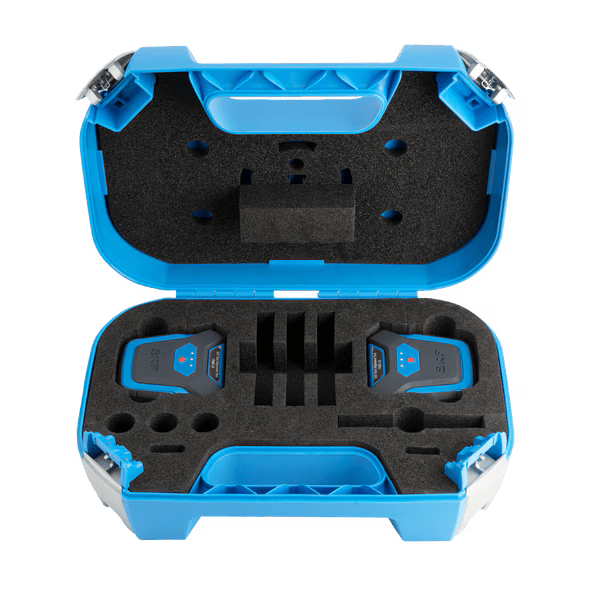

1x Carrying case (size B)
|
Logistics
| Product net weight | 1.55 kg |
| eClass code | 23-05-19-01 |
| UNSPSC code | 41112202 |
Spare part
| Spare tool case (empty) with inlay for Belt Alignment tool | TKBA 31-CB |
Accessory
| Spare set of passive targets for Belt alignment tool | TKBA TARGETS |
(TKBA21)
