Description
Properties
| Recommended applications |
Grease pump for drums or pails designed for high pressure applications
can be connected directly on greasing points
suitable for filling centralised lubricating grease systems
|
| For type/size of grease drum | 50 kg grease drum |
| Operation | Air operated grease pump |
| Mobility | Stationary / mobile (trolley as an option) |
| NLGI class of lubricant (max) | 2 |
| Connection |
Greasing point: DIN 71412
Airinlet connector: 1/4″BSP(F)
|
| Air pressure | 2 – 10 bar |
| Pressure ratio | 50:1 |
| Flow rate (max) | 1 200 cm³/min |
| Hose | Yes, 2.1 Meter |

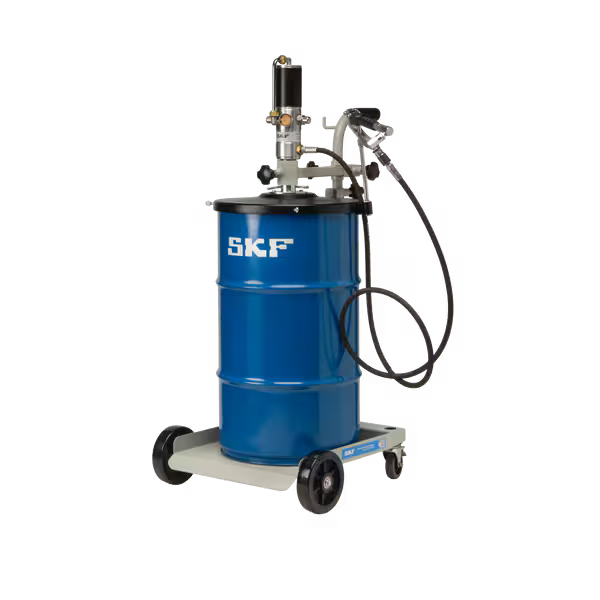

| Optional Trolley | LAGT 18 – 50F |
| Power source | Pneumatic |
| Material | Steel, rubber hose |
| Material handle | Steel |
| Ambient temperature range | 5 – 50 °C |
| Recommended storage temperature | 10 – 40 °C |
| Relative humidity | < 65 % |

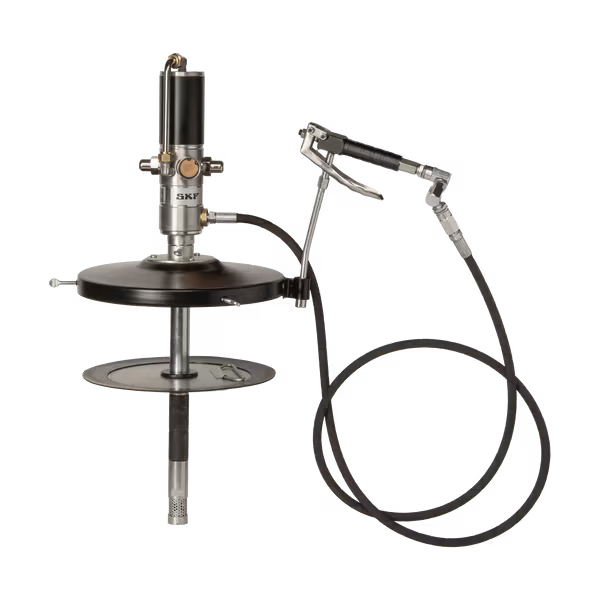

| Content | grease pump with pump handle, drum cover plate, drum followerplate, high pressure hose, swivel gun with extension pipe |
Logistics
| Product net weight | 9.38 kg |
| eClass code | 23-06-91-06 |
| UNSPSC code | 15121902 |
Spare part
| Spare pistol for Air-driven grease pumps | LAGG-P1 |
Accessory
| Grease coupler | LAGC S |
| Grease trolley for grease drums/ pails, for Air-driven grease pumps | LAGT 18-50 |
Recommended product
| Grease meter, measuring grease discharge | LAGM 1000E |
| High load, extreme pressure bearing grease | LGEP 2/50 |
| Extremely high viscosity bearing grease with solid lubricants | LGEV 2/50 |
| High load, water resistant and wide temperature food grade grease | LGFQ 2/50 |
| High load, high temperature, high viscosity bearing grease | LGHB 2/50 |
| High load, water resistant, high temperature bearing grease | LGHC 2/50 |
| High performance, high temperature bearing grease | LGHP 2/50 |
| Wide temperature lubrication systems grease | LGLS 0/50 |
| High viscosity lubrication systems grease | LGLS 2/50 |
| General purpose industrial and automotive bearing grease | LGMT 2/50 |
| General purpose industrial and automotive bearing grease | LGMT 3/50 |
| Wide temperature range, extreme pressure, high load bearing grease | LGWA 2/50 |
| Extreme pressure low temperature bearing grease | LGWM 1/50 |
| High loads, wide temperature bearing grease | LGWM 2/50 |
(LAGG50AF)
