LGHB 2/50

High load, high temperature, high viscosity bearing grease

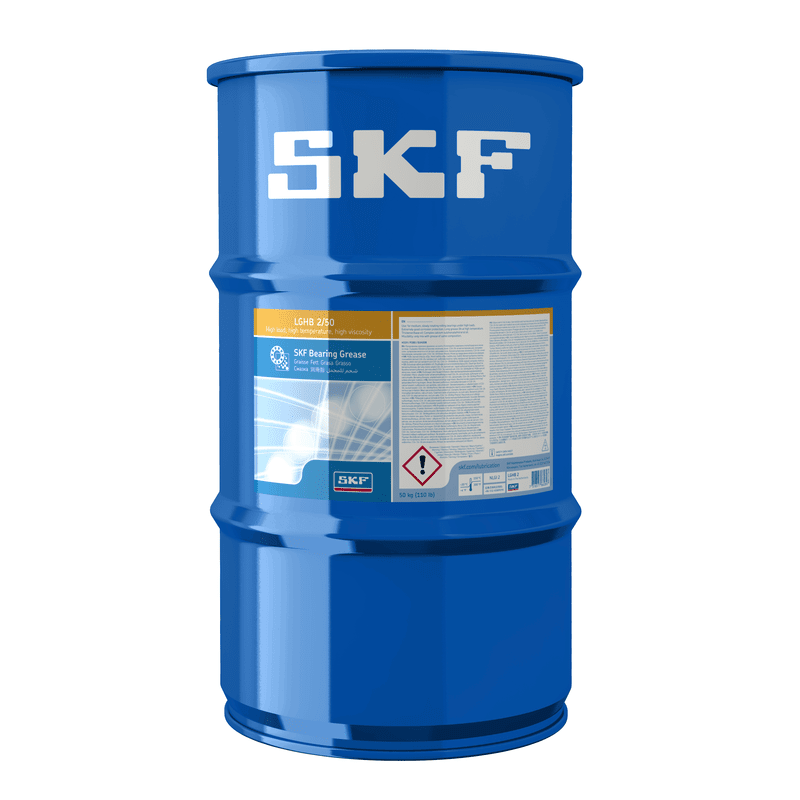

SKF bearing grease LGHB 2 in 50 kg drum

A high viscosity, mineral oil based grease, using the latest complex calcium-sulphonate soap technology. Formulated to withstand high temperatures and extreme loads, it is suitable for a wide range of applications, especially in cement, mining and metal segments. This grease contains no additives and the extreme pressure properties arise from the soap structure.

  • Excellent load capacity, anti-oxidation and corrosion protection even with large water ingress
  • Withstands high peak temperature

Dimensions

Corrosion protection, Emcor, ISO 11007, Distilled water 0-0

Performance

Suitable for High load applications ⚫⚫⚫⚫⚫
Suitable for Vertical shaft applications ⚫⚫⚫⚪⚪
Suitable for applications with Oscilating movements ⚫⚫⚫⚫⚫
Suitable for applications with Severe vibrations ⚫⚫⚫⚫⚪
Suitable for applications that require Rust protection ⚫⚫⚫⚫⚫
Suitable for applications that require Water resistance ⚫⚫⚫⚫⚫
Suitable for applications that require Frequent start-up ⚫⚫⚫⚫⚫
Operating temperature range -20  –  150 °C
Operating temperature range M, H
Load Range L, M, H, VH
Load Range Low – Very High C/P >0
Speed Range VL, L, M
Speed Range Very low – Medium
Dropping point (min) ISO 2176 220 °C
Penetration DIN ISO 2137, Worked, 60 strokes (10⁻¹mm) 265 – 295
Penetration DIN ISO 2137, Prolonged (max.), 100 000 strokes, 10⁻¹mm -20 to +50
Mechanical stability – Roll stability, ASTM D1831 (max.) 50 hrs at 80°C, 10⁻¹mm -20 to +50
Mechanical stability, V2F test, 144 hrs M
Corrosion protection, Emcor, ISO 11007 modified, Water washout 0-0
Corrosion protection, Emcor, ISO 11007 modified, 0.5% NaCl 0-0
Water resistance (max.) DIN 51807/1, 3 hrs at 90 °C 1
Oil separation DIN 51817, 40°C, % 1-3 at 60°C
Lubrication ability, R2F test B at 120°C Pass at 140°C
Copper corrosion (max.) DIN 51811 /ASTM D4048, 24 hrs at 100°C 2 max. at 150°C
Rolling bearing grease life (max.) ROF test, L50 life, 10000 r/min, hrs at °C 1000 at 130°C
EP performance – 4 ball – Wear scar (max.) DIN 51350/5, 1400N 2 mm
EP performance – 4 ball – Weld load (min.) DIN 51350/4 4000 N
Add to Enquiry
SKU: LGHB 2/50-SKF Categories: ,
SKF

Description



Properties

Recommended applications
Plain bearings
Conveyors
Applications with high loads and low speed
Category Bearing grease
Lubricant LGHB 2
NLGI consistency class 2
Base oil viscosity DIN 51562 at 40 °C 425 mm²/s
Base oil viscosity DIN 51562 at 100 °C 27.5 mm²/s
Speed (max.) n x dm (x 1000) 300
Speed factor Ball Bearings M: n dₘ < 300 000
Speed factor Cylindrical Ball Bearings (CRB) M: n dₘ ≤ 270 0000
Biodegradable No
DIN 51825 code KP2N-20
Thickener Calcium sulphonate complex
Colour Brown
Base oil type Mineral
Shelf life 5 year
Available for single point lubrication yes

Logistics

Product net weight 50 kg
eClass code 23-06-01-01
UNSPSC code 15121902
