Description
Properties

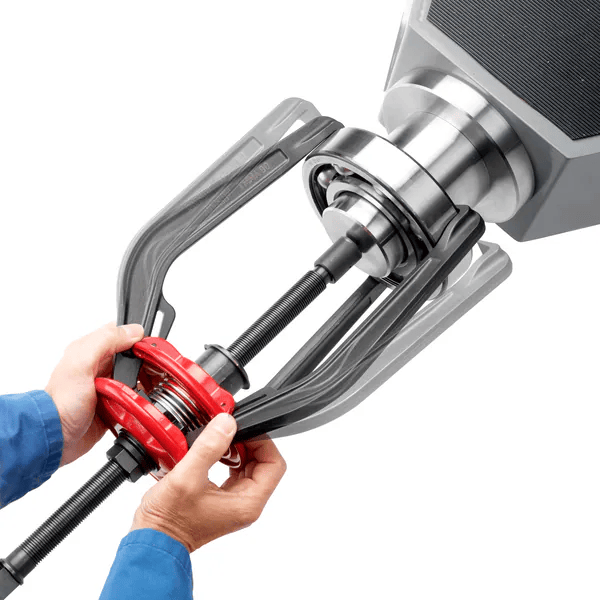

| Recommended applications | For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft |
| Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) | Yes |
| Suitable for bearing dismounting from a Tapered seating (conical shaft) | Yes |
| Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) | Yes |
| Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) | No |
| Suitable for workpiece dismounting from a Housing | No |
| Suitable for bearing type(s) | All |
| Dismounting force generation | Spindle |
| Special features | Spring operated opening mechanism |
| Number of arms | 3 |
| Pulling force (max) | 80 kN |
| Spindle torque (max) | 175 N·m |
| Spindle nose piece | yes, ⌀26 mm |
| Colour | Black, with red handle |
| Material | Alloy engineering steels, hardened and tempered |
| Coating | Black phosphated, red powdercoated |
| Content |

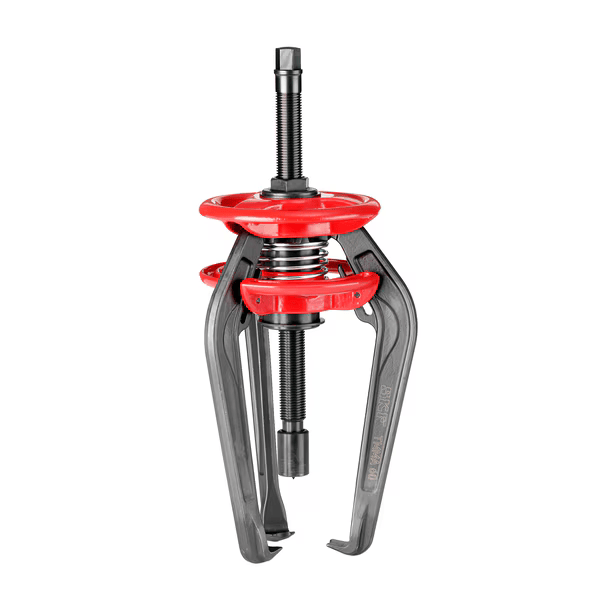

1x Puller TMMA 80 with mechanical spindle
1x Tube of spindle grease LGEV2/0.035
1x Printed instructions for use
|
Logistics
| Product net weight | 5.68 kg |
| eClass code | 23-05-19-01 |
| UNSPSC code | 27111712 |
Refill
| Extremely high viscosity bearing grease with solid lubricants | LGEV 2/0.035 |
Spare part
| Spare arm with bolt for Easypull puller | 3 x TMMA 80-1 |
| Spare spindle with nose piece for EasyPull mechanical puller | TMMA 80-2 |
| Spare opening mechanism for EasyPull hydraulic puller or EasyPull mechanical puller | TMMA 75H/80-3 |
Accessory
| Advanced hydraulic spindle | TMHS 75 |
| Tri-section pulling plate | TMMS 50 |
| Tri-section pulling plate | TMMS 100 |
| Puller protection blanket | TMMX 280 |
(TMMA80)
