Description
Properties
| Recommended applications | For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit inside a housing |
| Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) | No |
| Suitable for bearing dismounting from a Tapered seating (conical shaft) | No |
| Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) | No |
| Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) | No |
| Suitable for workpiece dismounting from a Housing | Yes |
| Suitable for bearing type(s) | All |
| Dismounting force generation | Sliding hammer |
| Special features | With unique spring-loaded grip system for easy operation |

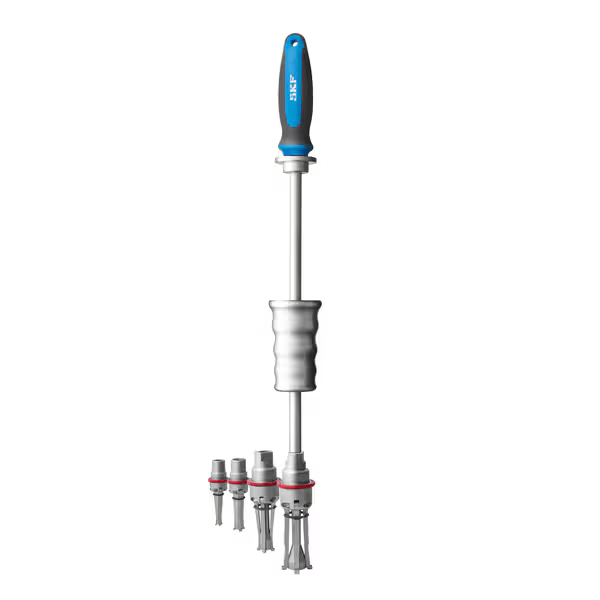

| Total number of extractors in kit | 4x : TMIP E7-9, TMIP E10-12 , TMIP E15-17, TMIP E20-28 |
| Slide hammer weight(s) | 1.0 kg |
| Total number of sliding hammers in kit | 1x :TMIP S1 |
| Material | Medium carbon steels and alloy engineering steels, hardened and tempered |
| Material handle | Opener handle: steel, Slidehammer: thermoplastic elastomer |
| Coating | Zinc coated |
| Content |
4x Extractors size E7-9 to E20-28
1x slidehammer, size S1
1x Printed Instructions for Use (language free)
1x Carrying case (size X)
|
| Total product weight | 3.1 kg |
Logistics
| Product net weight | 3.09 kg |
| eClass code | 23-05-19-01 |
| UNSPSC code | 27111712 |
Spare part
| Spare tool case (empty) with inlay for Internal bearing puller kit | TMIP 7-28-CX |
| Spare extractor for Internal bearing puller kit | TMIP E10-12 |
| Spare extractor for Internal bearing puller kit | TMIP E15-17 |
| Spare extractor for Internal bearing puller kit | TMIP E20-28 |
| Spare extractor for Internal bearing puller kit | TMIP E7-9 |
| Spare slide hammer small for Internal bearing puller kit | TMIP S1 |
(TMIP7-28)
