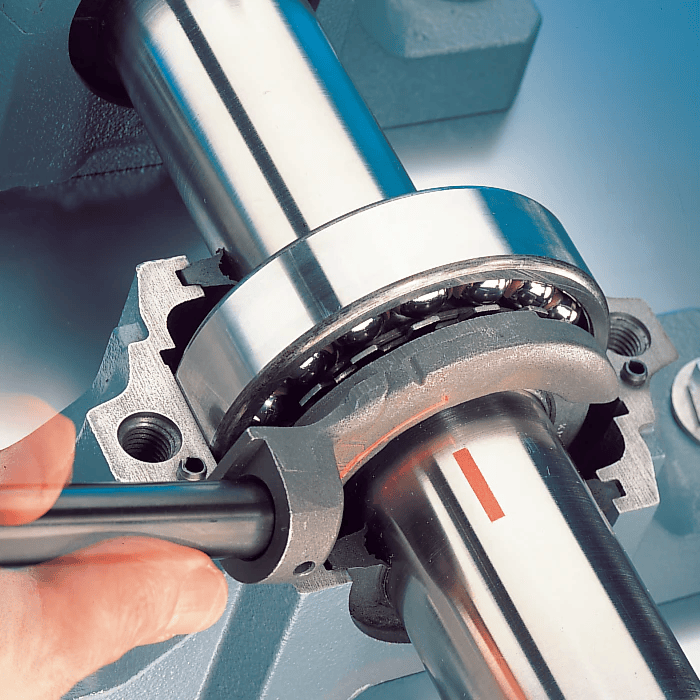

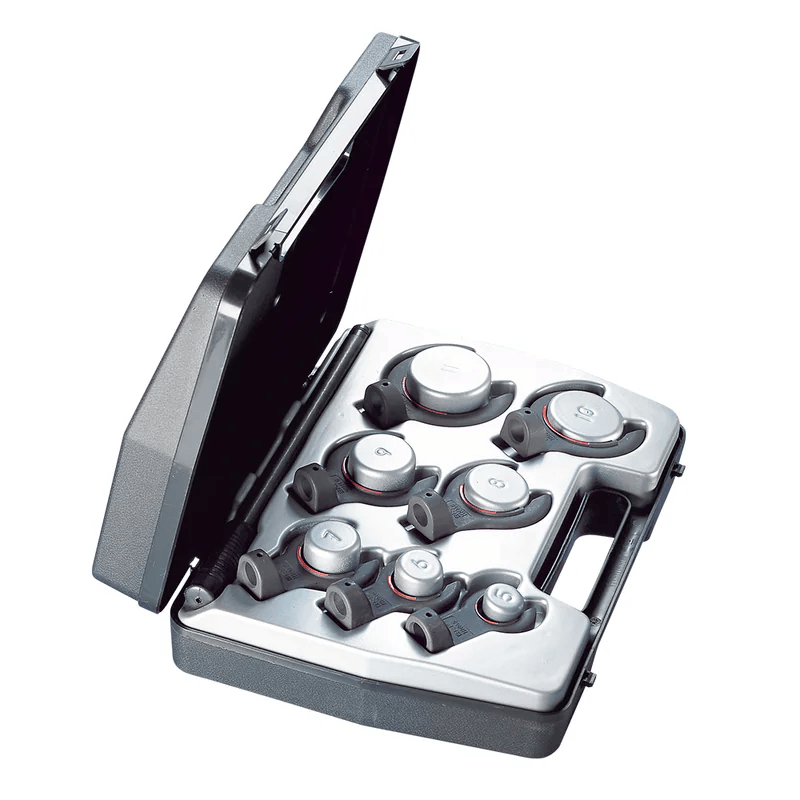

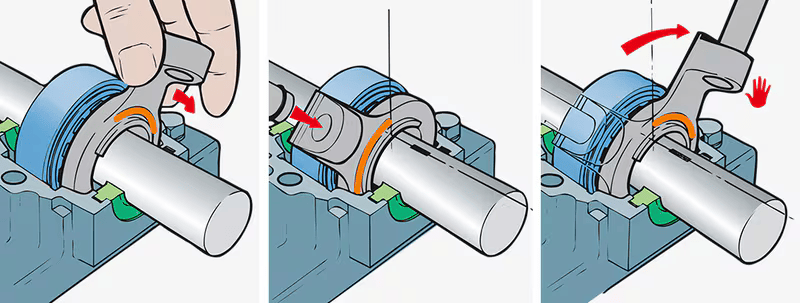

The set makes of use the drive-up method by controlled rotation of the locknut to the desired end position. Supplied in a carrying case with seven different–sized spanners to fit nut sizes 5 to 11, it is suitable for use with lock nuts of the KM series either on shaft or in SNL housings.
Spanner Selection Chart
| Spanner |
Bearing designation |
|||
| HNM 5 | 1205 EK | 2205 EK | 1305 EK | |
| HNM 6 | 1206 EK | 2206 EK | 1306 EK | 2306 K |
| HNM 7 | 1207 EK | 2207 EK | 1307 EK | 2307 EK |
| HNM 8 | 1208 EK | 2208 EK | 1308 EK | 2308 EK |
| HNM 9 | 1209 EK | 2209 EK | 1309 EK | 2309 EK |
| HNM 10 | 1210 EK | 2210 EK | 1310 EK | 2310 K |
| HNM 11 | 1211 EK | 2211 EK | 1311 EK | 2311 K |
| Weight | 2.17 kg |
|---|
