TLSD 250/EM2

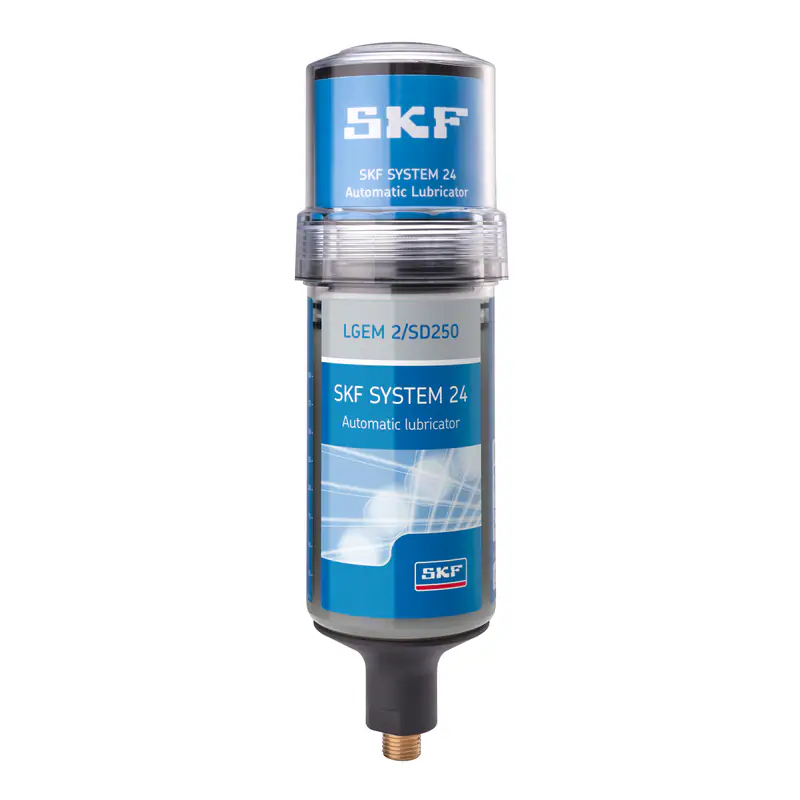

SKF SYSTEM 24 single point lubricator TLSD 250/EM2

Elecro-mechanical single point automatic lubricator filled with 250 ml LGEM 2

TLSD 250/EM2 is filled with SKF LGEM 2 high viscosity bearing grease with solid lubricants, recommended for low speeds and high loads and vibrations.

SKF electro-mechanical single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants, both as battery or cable driven. Using automatic lubricators improves employee safety, increases machine reliability and optimizes maintenance operations.

  • Flexible dispense rate from 1 to 12 months
  • Maximum discharge pressure of 5 bar during the dispensing period
  • LED status indicators
  • Compact size allows installation in restrictive areas
  • Suitable for both direct and remote installation
  • Supplied with support flange for enhanced sturdiness

Dimensions

Lubricant quantity 250 ml

Performance

Nominal emptying time User adjustable: 1, 2, 3, 4, 6, 8, 10 and 12 months
Lowest dispense setting 0.7 ml/d
Highest dispense setting 8.3 ml/d
Maximum Pressure 5 bar
Maximum feed line length 3 m
Product weight 0.72 kg
Degree of protection (IP) IP 65
Add to Enquiry
SKU: TLSD 250/EM2-SKF Categories: ,
SKF

Description

Properties

Lubricant LGEM 2
Lubricant description High viscosity bearing grease with solid lubricants for heavy loads, heavy vibrations and slow rotations
Lubricant operating temperature range –20 to +120 °C
Ambient temperature range 0  –  50 °C
Recommended applications
Rolling element bearings running at low speed and very high loads
Jaw crushers
Crane arms
Drive mechanism Electro mechanical
Connecting thread G 1/4
Battery Battery pack, TLSD 1-BAT
Battery capacity 2.7 A·h
Battery type Alkaline manganese
Battery voltage 4.5 V
Power source Battery pack
LED indicator
Green LED (every 30 sec): OK
Yellow LED (every 30 sec): Pre-warning low battery power
Yellow LED (every 5 sec): Pre-warning high back pressure
Red LED (every 5 sec): Warning, stopped on error
Red LED (every 2 sec): Warning, empty cartridge

Accessory

Pack of 10 battery packs for TLSD TLSD 1-BATC

Spare part

TLSD battery pack TLSD 1-BAT
TLSD drive unit cap TLSD 1-CAP
TLSD drive unit with support plate for grease TLSD 1-DS
Support plate for TLSD lubricators TLSD 1-SP

Refill

SKF SYSTEM 24 TLSD refill set LGEM 2/SD125
SKF SYSTEM 24 TLSD refill set LGEM 2/SD250

(TLSD250/EM2)

Additional information

Weight 0.72 kg
