TLGH 1

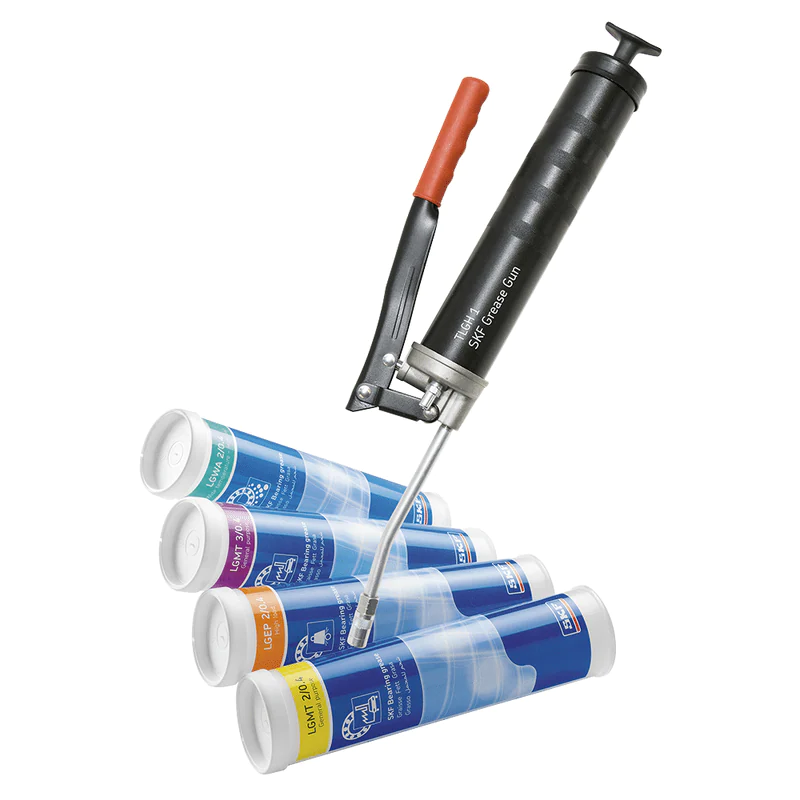

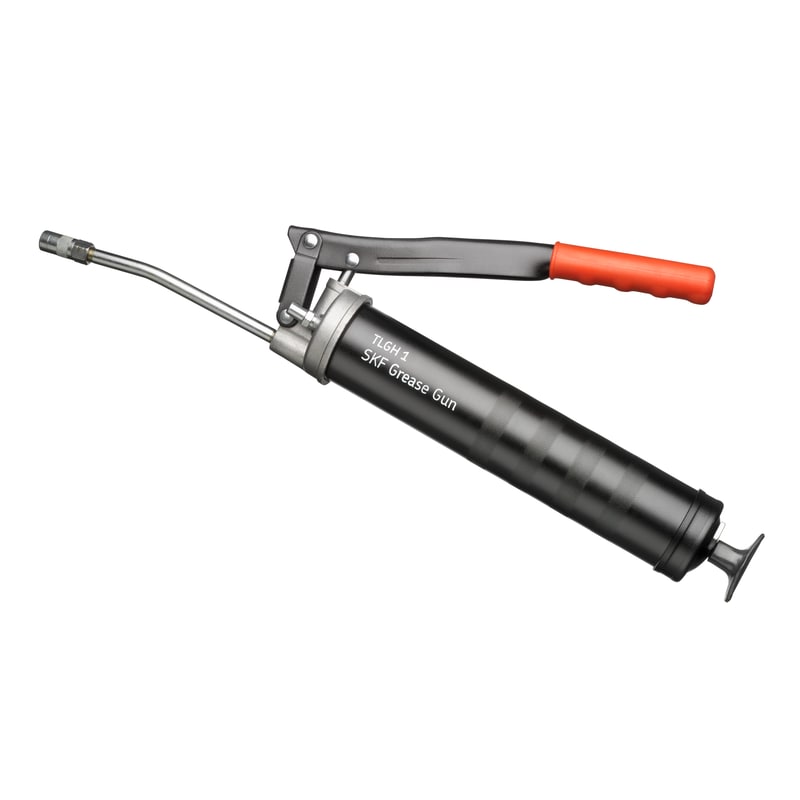

SKF Grease Gun TLGH 1

The SKF Grease guns are ideal for agricultural, industrial and construction industries and for private use.

The SKF Grease Guns are delivered with a 175 mm (6.9 in.) long extension pipe with hydraulic gripping nozzle. A flexible 500 mm (19.7 in.) long pressure hose with hydraulic gripping nozzle is available as an accessory.

  • For use with cartridges and loose grease
  • Knurled body for firm and safe grip
  • High quality steel is dent-resistant for easy cartridge loading
  • Special piston design for smooth emptying of cartridges
  • 40 MPa (5 800 psi) maximum pressure
  • TLGH 1: 0,9 cm³ (0.055 in.³ ) volume/stroke

Dimensions

Reservoir volume 500 ml
Filling connection DIN 1283
Length 380 mm

Performance

Maximum pressure 40 MPa
Maximum pressure 400 bar
Volume per stroke 0.9 ml
Add to Enquiry
SKU: TLGH 1-SKF Categories: ,
SKF

Properties

Recommended applications For manual filling of greasing points in industrial, construction and agricultural applications
Grease supply Loose or Cartridge
Use of standard grease cartridges Yes, type DIN 1284
NLGI class of lubricant (max) 2
Suitable for grease nipples Standard nipples as per DIN 71412
Operation Two hands
Pipe/Hose thread connection M10x1
Extension pipe Yes, 175 mm
Hose Optional
Can be filled with Grease filler pump Yes, with SKF LAGF 18 or LAGF 50
Total product weight 1.16 kg

Recommended product

SKF Grease Gun 1077600 1077600
SKF Grease Gun 1077600 H 1077600 H
SKF Grease Gun 1077600/SET 1077600/SET
SKF Grease Gun LAGH 400 LAGH 400

(TLGH1)

Additional information

Weight 1.16 kg
Dimensions 7 × 40 × 15 cm
