LGEM 2/5

High viscosity bearing grease with solid lubricants

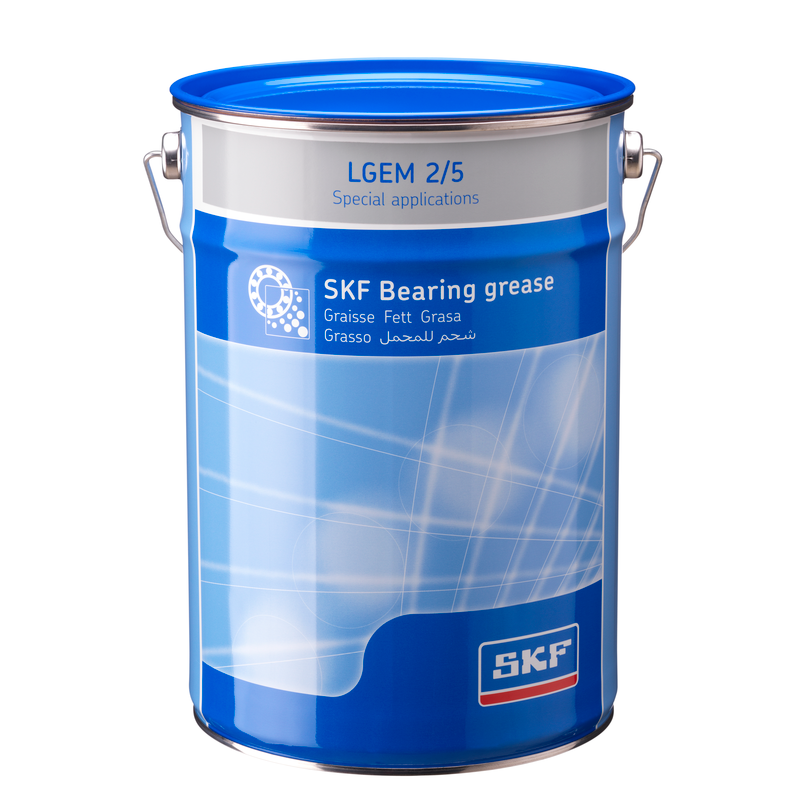

SKF bearing grease LGEM 2 in 5 kg can

A high viscosity, mineral oil based grease using a lithium soap. Its content of molybdenum disulphide and graphite provides extra protection for harsh applications subjected to high loads, heavy vibrations and slow rotations.

  • High oxidation stability
  • Molybdenum disulphide and graphite provide lubrication even if the oil film breaks down.

Performance

Recommended applications
Rolling element bearings running at kow speed and very high loads
Jaw crushers
Crane arms
Suitable for High load applications ++
Suitable for Vertical shaft applications +
Suitable for applications with Oscilating movements Ο
Suitable for applications with Severe vibrations +
Suitable for applications that require Rust protection +
Suitable for applications that require Water resistance +
Suitable for applications that require Frequent start-up ++
Speed (max.) n x dm (x 1000) 300
Operating temperature range -20  –  120 °C
Dropping point (min) ISO 2176 180 °C
Penetration DIN ISO 2137, Worked, 60 strokes (10⁻¹mm) 265 – 295
Penetration DIN ISO 2137, Prolonged (max.), 100 000 strokes, 10⁻¹mm +50
Mechanical stability – Roll stability, ASTM D1831 (max.) 50 hrs at 80°C, 10⁻¹mm +50
Mechanical stability, V2F test, 144 hrs M
Corrosion protection, Emcor, ISO 11007, Distilled water 0-0
Corrosion protection, Emcor, ISO 11007 modified, Water washout 0-0
Corrosion protection, Emcor, ISO 11007 modified, 0.5% NaCl 2-2
Water resistance (max.) DIN 51807/1, 3 hrs at 90 °C 1
Oil separation DIN 51817, 40°C, % 1-5
Lubrication ability, R2F test B at 120°C Pass at 100°C
Copper corrosion (max.) DIN 51811 /ASTM D4048, 24 hrs at 100°C 2 max.
Rolling bearing grease life (max.) ROF test, L50 life, 10000 r/min, hrs at °C 1000 at 100°C
EP performance – 4 ball – Wear scar (max.) DIN 51350/5, 1400N 1.2 mm
EP performance – 4 ball – Weld load (min.) DIN 51350/4 3 400 N
Low temperature torque, Start/Running, mNm 150/50 at -20°C
Add to Enquiry
SKU: LGEM 2/5-SKF Categories: ,
SKF

Description

Properties

DIN 51825 code KPF2K-20
NLGI consistency class 2
Thickener Lithium/calcium
Colour Black
Base oil type Mineral
Base oil viscosity DIN 51562 at 40 °C 500 mm²/s
Base oil viscosity DIN 51562 at 100 °C 32 mm²/s
Pack size 5kg can
Available for single point lubrication yes

(LGEM2/5) (LGEM-2/5)

Additional information

Weight 5 kg
