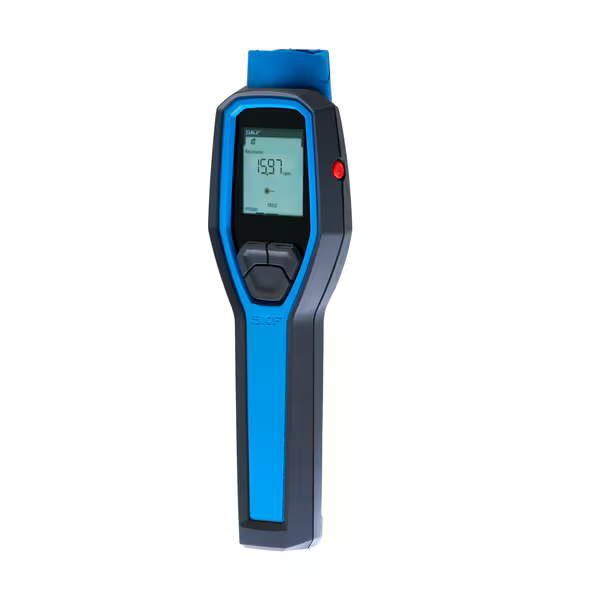

TKRT 21

Multi-functional digital tachometer

The TKRT 21 is a multi-functional digital tachometer that uses laser or contact measurement to determine rotational and linear speeds.

The device allows fast, easy measurement at a safe distance from rotating machinery. It offers high speed and distance versatility in several measurement modes. In addition, it facilitates easy measurement when straight-line access is difficult. The TKRT 21 is supplied with a basic set of contact adaptors and can be used with either standard or rechargeable batteries.

  • Laser/contact measuring system
  • Wide speed measurement range
  • Multiple measurement modes
  • Large LCD display
  • Includes basic set of contact adaptors
  • Uses standard or rechargeable batteries
  • Supplied in a handy toolcase for easy storage

Dimensions

Instrument dimensions 295 x 70 x 38 mm
Case dimensions (l x h x w) 260 x 85 x 180 mm

Performance

Optical measurement rotational speed (range) 1  –  99999 r/min
Contact measurement rotational speed (range) 0  –  20000 r/min
Contact measurement linear speed (range) 0.1  –  2000 m/min
Contact measurement distance (range) 25  –  1200 mm
Add to Enquiry
SKU: TKRT 21-SKF Categories: , , ,
SKF

Description

Properties

Recommended applications Used to determine the speed of motors or shafts, as well as for measuring the speed and length of moving surfaces such as V-belts and conveyor belts.
Display LCD display
Measurement types Actual, Minimum, Maximum, Average, Total
Optical measurement method Built in laser
Optical measurement modes r/min, Hz
Optical measurement accuracy (+/-) 0.01 %
Angle of operation (max) 30 °
Contact measurement rotational speed modes r/min, Hz
Contact measurement accuracy (+/-) 0.1 %

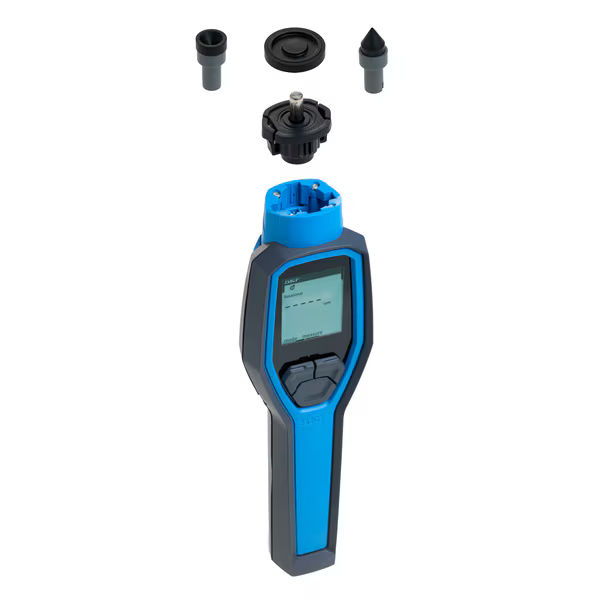

Contact accessories
Contact adaptor
Extension shaft
2x Conical tips
2 x Contact wheels C=0.1 m and C=6 in
Linear measurement modes (with contact adaptor) m/min, m/s, feet/min, feet/s, inch/min, inch/s
Contact measurement accuracy (+/-) 0.1 %
Distance measurement modes (with contact adaptor) metres, feet, inch
Memory – MB
Laser type Visible red line laser
Laser wavelength 650 nm
Laser power max 1 mW
Auto switch off 10 min, 5 min, off
Tripod connector Yes, (1/4-20 UNC)
Housing material ABS plastics
Colour
Blue
Dark Grey
Battery 2x AA (Alkaline (incl.) or Rechargable)
Battery life 12 h
Power adapter No
Instrument weight 270 g
Degree of protection (IP) IP40
Operating temperature range 0  –  40 °C
Recommended storage temperature -20  –  45 °C
Relative humidity 10 to 90%, non-condensing
Content
1 x Tachometer TKRT 21
1x Contact adaptor
1 x Extension shaft
2 x conical tips
2 x wheels C=0.1 m and C=6 in
2 x AA batteries
1 x Set of reflective tape
​​​​​​​1 x Instructions for use MP5508
1x Carrying case size A

Logistics

Product net weight 0.77 kg
eClass code 23-05-19-01
UNSPSC code 41112202

Spare part

Spare tool case (empty) with inlay for Multi-functional digital tachometer TKRT 21-CA
Spare set of contact adapter, tips and wheels for Multi-functional and Advanced digital tachometer TKRT TIPS
Accessory large contact wheel for Multi-functional and Advanced digital tachometer TKRT WHL12

(TKRT21)
