TKES 10S

Video endoscope with semi-rigid tube

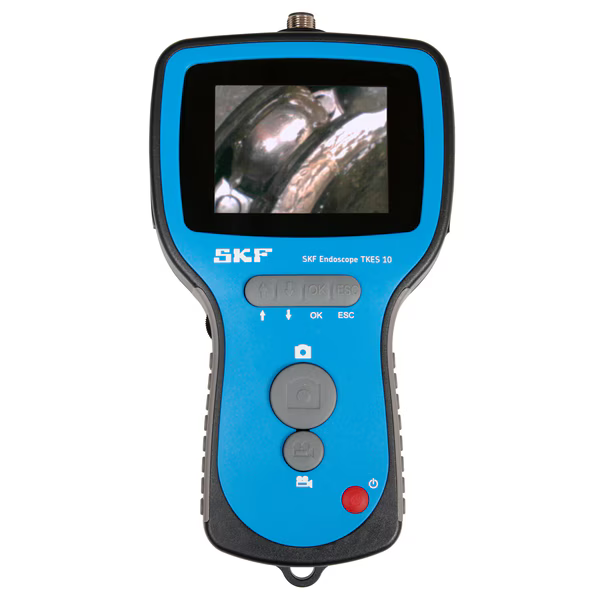

The SKF Endoscope TKES 10S is a first line visual inspection tool to examine the internals of your machinery.

It helps to reduce the need to disassemble machinery for inspection, saving time and money. The compact display unit, with 3.5 inch backlit screen, allows images and video to be saved for reporting and sharing with others. This model features an articulated tip with powerful variable LED lighting that can be controlled from the display unit, allowing inspections in dark and difficult to reach locations.

  • High resolution miniature camera, with up to 2× digital zoom, gives a clear and sharp full screen image
  • Supplied with a 1 m (3.3 ft) semi-rigid insertion tube
  • Small tip diameter of 5.8 mm (0.23 in), with a wide field of view, allows easy access to most applications
  • Supplied with a side view adapter allowing inspection of applications such as pipe walls
  • Powerful magnets, and a tripod mount on the back of the display unit, allow the display unit to be used “hands free”
  • Up to 50 000 photos or 120 minutes of video can be stored on the SD memory card supplied
  • Longer flexible and semi-rigid insertion tubes are available as accessories
  • Supplied in a sturdy carrying case and ready-to-use with all necessary cables, universal mains charger and cleaning kit
Add to Enquiry
SKU: TKES 10S-SKF Categories: , , ,
SKF

Description

Properties

Operating temperature range -20  –  60 °C
Recommended applications inspection tool for internal inspection of machinery
Insertion Tube Semi-rigid tube with fixed tip
Adjustability
Semi flexible tube that can be bent to steady shape
Fixed tip
Light source 20x white LED with adjustable brightness
Tube length 1 000 mm
Field of view 67 °
Depth of Field 15  –  60 mm
Special features
Comes with integrated magnets and tripod connection for handsfree use
TV out connection
Upto 2x digital zoom
USB out
Mirroring functions
Auto power-off
Sideview adapter included
Image resolution 640 x 480 pixels
Video resolution 640 x 480 pixels, 30 fps
Display 3.5″ TFT LCD monitor with 320 x 240 pixels
Measurement method CMOS
Memory SD Card MB
Insertion tube and tip diameter 5.8 mm
Bending radius (min) 50 mm
Tripod connector Yes, (1/4-20 UNC)
Battery Rechargeable Li-Polymer Battery (3.7 V)
Battery life 4 h
Power adapter
Input: 100 – 240V 50/60 Hz EU/UK/US/AUS or via 5V USB 2.0 with cable included
Output: 5V DC 2A
Colour Blue,Black
Degree of protection (IP)
Tube: IP 67
Display device: IP 55
Case dimensions (l x h x w) 360 x 110 x 260 mm
Content
Display unit (TKES 10-DU)
Semi-rigid insertion tube 1m (TKES TS-1)
SD memory card
Side view adapter 90° (TKES 1-M1)
Video cable for s-video
Power adapter and charger with country plugs (TKES 10-CHARG)
mini USB to USB cable
Cleaning accessories
Carrying case
Instructions for use

Logistics

Product net weight 2.01 kg
eClass code 23-05-19-01
UNSPSC code 41112202

Accessory

Accessory articulated tube for Video endoscope TKES TA-3
Accessory flexible tube for Video endoscope TKES TF-2
Accessory flexible tube for Video endoscope TKES TF-3
Accessory flexible tube for Video endoscope TKES TF-5
Accessory semi-rigid tube for Video endoscope TKES TS-2
Accessory semi-rigid tube for Video endoscope TKES TS-3
Accessory semi-rigid tube for Video endoscope TKES TS-5

Spare part

Spare tool case, size B, generic, no inlay, empty TDTC 1/B
Visual inspection – Spare parts, accessories TKES 1-M1
Spare battery for Video endoscopes TKES 10-BAT
Spare power adapter for Video endoscopes TKES 10-CHARG
Spare endoscope without tube TKES 10-DU
Spare semi-rigid tube for Video endoscope TKES TS-1

(TKES10S)
