Description
Properties
| Lubricant | LGHB 2 |
| Lubricant description | High viscosity, high loads and high temperatures grease |
| Lubricant operating temperature range | –20 to +150 °C |
| Ambient temperature range | -20 – 60 °C |
| Recommended applications |
Plain bearings
Conveyors
Applications with high loads and low speed
|
| Drive mechanism | Gas cell producing inert gas |
| Connecting thread | R 1/4 |
| Intrinsically safe approval | II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma |
| Power source | Gas cell |
| Recommended storage temperature | 20 °C |
Accessory
| Angle connection 45 degrees | LAPA 45 |
| Angle connection 90 degrees | LAPA 90 |
| Bracket | LAPC 13 |
| Clamp (d=50 mm) | LAPC 50 |
| Extension 35 mm | LAPE 35 |
| Extension 50 mm | LAPE 50 |
| Tube connection, female G1/4 | LAPF F1/4 |
| Tube connection, male G1/4 | LAPF M1/4 |
| Tube connection, male G1/8 | LAPF M1/8 |
| Tube connection, male G3/8 | LAPF M3/8 |
| Grease nipple with male thread G1/4 | LAPG 1/4 |
| Y connection, with male threads G1/4 to female G1/4 | LAPM 2 |
| Nipple with thread female G1/4 to male G1/2 | LAPN 1/2 |
| Nipple with thread female G1/4 to male G1/4 | LAPN 1/4 |
| Nipple with threads female G 1/4 to male 1/4 -28 UNF | LAPN 1/4UNF |
| Nipple with threads female G 1/4 to male G1/8 | LAPN 1/8 |
| Nipple with threads female G 1/4 to male M10x1.5 | LAPN 10 |
| Nipple with threads female G 1/4 to male M10x1 | LAPN 10X1 |
| Nipple with threads female G 1/4 to male M12 | LAPN 12 |
| Nipple with threads female G 1/4 to male M12x1.5 | LAPN 12X1.5 |
| Nipple with threads female G 1/4 to male G 3/8 | LAPN 3/8 |
| Nipple with threads female G 1/4 to male M6 | LAPN 6 |
| Nipple with threads female G 1/4 to male M8x1.25 | LAPN 8 |
| Nipple with threads female G 1/4 to male M8x1 | LAPN 8X1 |
| Support plate SYSTEM 24 LAGD | LAPP 4 |
| Protection Cap | LAPP 6 |
| Flexible tube, 1000 mm long, 8 x 6 mm | LAPT 1000 |
| Flexible tube, 5000 mm long, 8 x 6 mm | LAPT 5000 |

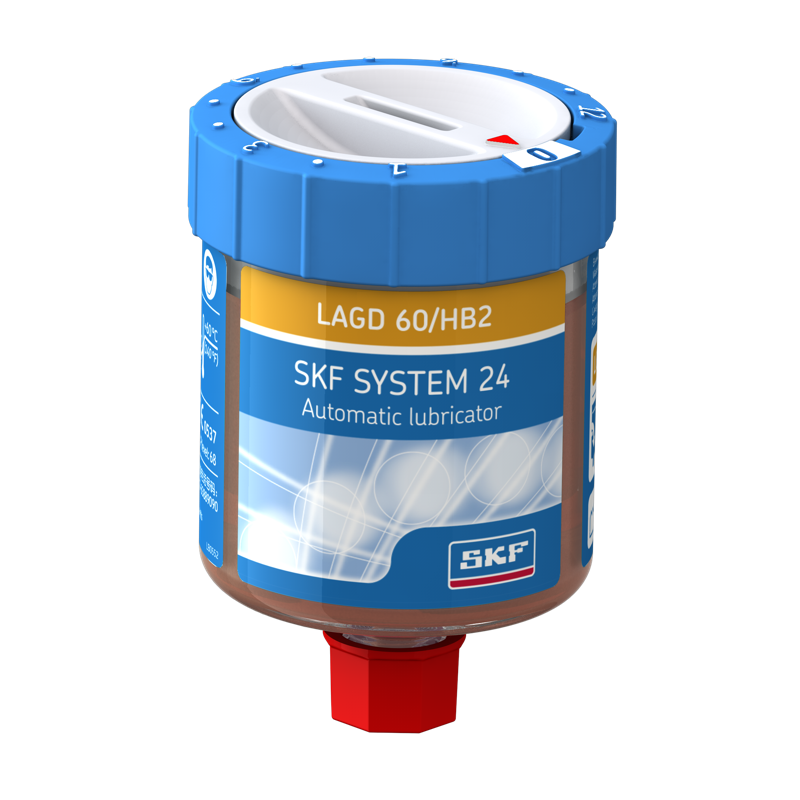

(LAGD60/HB2)
