HMV 190E

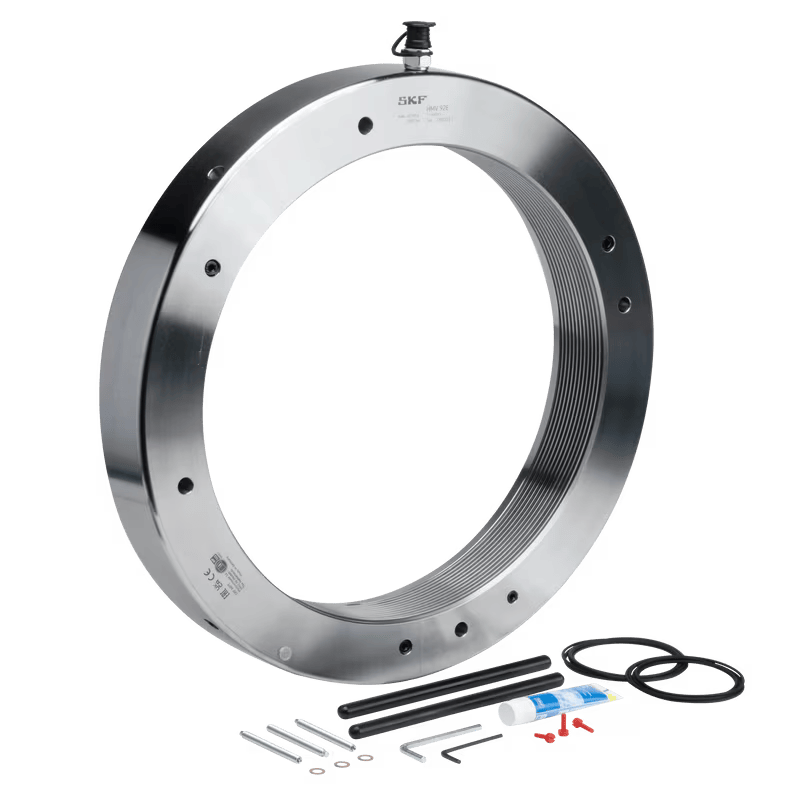

SKF Hydraulic Nut – HMV 190E

Hydraulic nut for mounting or dismounting of bearings

Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.

  • Quick connection coupling can be fitted on the face or side of the nut
  • A spare set of piston seals and maintenance kit is included
  • Supplied with a quick connection coupling to fit the SKF hydraulic pumps
  • Equipped with eyebolts, two tommy bars and four mating holes on their front face

Dimensions

Connecting thread Tr 950×8
Thread form ISO 2901-1977 tolerance class 7H
Maximum piston displacement 30 mm
Outer diameter 1 126 mm
Piston area 135 700 mm²
Piston inner diameter 952 mm
Piston outer diameter 1 097 mm
Piston width 17 mm
Width 86 mm
Product weight 218 kg

Performance

Maximum pressure 250 bar
Maximum pressure 25 MPa
Add to Enquiry
SKU: HMV 190E-SKF Categories: ,
SKF

Description

Accessory

SKF Feeler Gauges 729865 A 729865 A
SKF Feeler Gauges 729865 B 729865 B
Horizontal dial gauge for HMV E series nuts, 0-0.5 inch TMCD 1/2R
Horizontal dial gauge for HMV E series nuts, 0-10 mm TMCD 10R
Vertical dial gauge for HMV E series nuts, 0-5 mm TMCD 5P
SKF Hydraulic Pump TMJL 50DU TMJL 50DU

Spare part

Quick connecting nipple 729832 A
O-ring set for Hydraulic nut, metric, size 190 HMV 190/233983
M5x17 nylon screw for HMV E nuts for size 70 and larger, 10 pcs HMVE M5X17
Maintenance set for HMV E size 70 to 200 HMVM 70/200

Recommended product

SKF Hydraulic Pump 728619 E 728619 E
Flexible high pressure hose 100 MPa, 1.5m long 729126
Flexible high pressure hose 150 MPa, 3m long 729834
Mounting or Dismounting fluid LHMF 300/1
Mounting or Dismounting fluid LHMF 300/5
SKF Hydraulic Pump TMJL 50 TMJL 50

(HMV190E)
