Description
Properties
| Recommended applications | For dismounting of bearings, gears, pulleys and other industrial ring shaped components from shafts in industrial, construction and agricultural applications, where there is limited space behind the component and traditional jaw pullers won’t fit. |
| Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) | Yes |
| Suitable for bearing dismounting from a Tapered seating (conical shaft) | Yes |
| Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) | Yes |
| Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) | No |
| Suitable for workpiece dismounting from a Housing | No |
| Suitable for bearing type(s) | All |
| Dismounting force generation | Hydraulic spindle (TMHS 100) |
| Special features |
Provide the possibility to engage the inner ring of the bearing, thus making sure that no withdrawal force is transmitted through the rolling elements
Comes with various extension rods to allow useage on longer shafts
Hydraulic spindle with integrated safety valve for safer use
|
| Pulling force (max) | 100 kN |
| Separator height | 34 mm |
| Spindle nose piece | yes, ⌀ 30mm |
| Colour |
Black
Silver
|
| Material | Alloy engineering steels, hardened and tempered |
| Coating | Black phosphated, Hydraulic spindle with trivalent chromium parts |
| Recommended storage temperature | 5 – 40 °C |
| Relative humidity | max 75% |
| Case dimensions (l x h x w) | 580 x 410 x 70 mm |

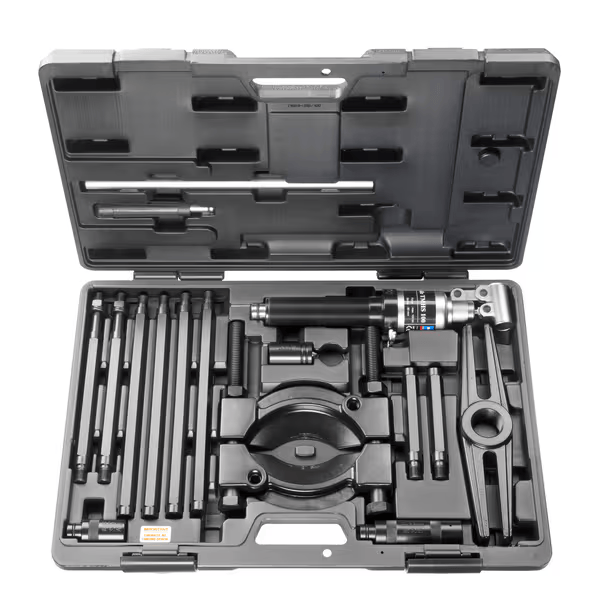

| Content |
1 x separator set
1 x beam
2 x main rods
4 x extension rods, 285 mm
2 x extension rods, 125 mm
1 x hydraulic spindle TMHS 100 (with handle bar)
2 x extension pieces for hydraulic spindle
50, 100 mm
1 x nosepiece with centre point for hydraulic spindle
IFU QR Code card
Case
|
Logistics
| Product net weight | 17.6 kg |
| eClass code | 23-05-19-01 |
| UNSPSC code | 27111712 |
Accessory
| Puller protection blanket | TMMX 350 |
Spare part
| Spare main rods set with washers and nuts for Strong back pullers or Hydraulic puller kit | TMBS 100E-2 |
| Spare extension rods set, short, for Strong back pullers or Hydraulic puller kit | TMBS 100E-3 |
| Spare extension rods set, long, for Strong back pullers | TMBS 100E-4 |
| Spare beam for Strong back puller | TMBS 150E-1 |
| Spare separator with bolts and nuts, for Strong back pullers | TMBS 150E-5 |
| Advanced hydraulic spindle | TMHS 100 |
| Spare advanced hydraulic spindle, spindle only | TMHS 100-1 |
| Spare set of extension pieces and nose piece for Hydraulic spindles | TMHS 8T |
(TMBS150E)
