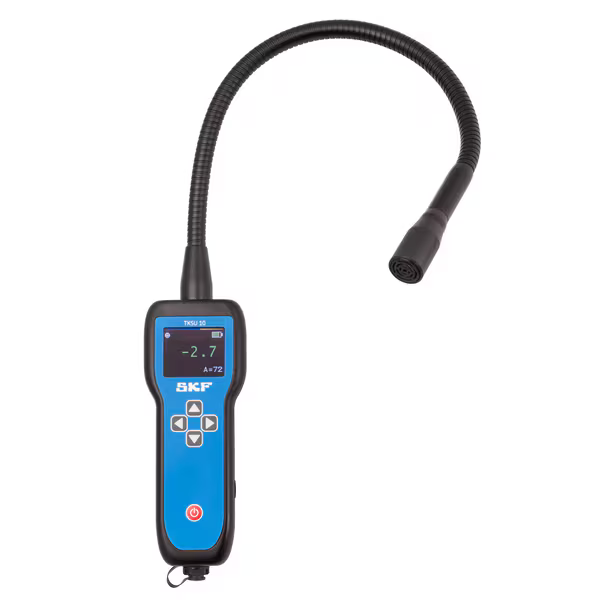

TKSU 10

Ultrasonic leak detector

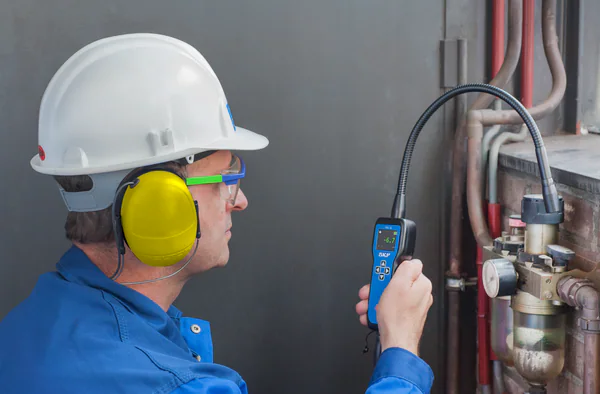

The SKF TKSU 10 is an ultrasonic leak detector that helps users to quickly find leakages in compressed air or vacuum systems.

Leakages increase the load on the equipment and result in higher operation and maintenance costs. The TKSU 10 is very simple to use and helps users to easily find leaks from a distance, even in noisy industrial environments, via its ultrasound measurement sensor. The instrument features adjustable sensitivity and intuitive LED display gives guidance for superior leak detection results. The TKSU 10 is designed for use in all industries utilizing compressed air, and it is particularly recommended for paper and chemical industries, as well as workshops with air-driven power tools.

  • Easy and intuitive to use. No training required
  • Leak detection from a distance in noisy industrial environments
  • High quality neckband headset for usage with protective helmets included
  • Color LED display assists users in adjusting sensitivity settings and shows measurement values
  • Independently adjustable sensor sensitivity and headset volume
Add to Enquiry
SKU: TKSU 10-CC-SKF Categories: , , ,
SKF

Description

Properties

Recommended applications Detection of leaks in compressed air systems, pneumatics brake systems, vacuum systems, pressurized gas storage, and steam traps
Special features Graphical or default streaming screen, Historical values, Amplification guidance, Continuous use mode, Volume control, Battery level, Auto switch off
Measurement method Piezoelectric crystal
Measurement frequency 35 to 42 kHz
Measurement range -6 to 99,9 dBµV, reference 0 dB = 1 µV
Signal amplification +30 to +102 in steps of 6 dB
Display 160×128 pixels Colour OLED
Sound pressure level (max) +83 dB with supplied headset
Headset impedance 230 Ω
Headset connector Stereo jack connector of 6,35 mm
Headset weight 255 g
Volume adjustment steps 5
Battery 2x AA (LR6) Alkaline (incl.)
Battery life 7 h
Auto switch off Continues, 10 min, off
Power adapter Not included but provided with mini-USB connection for continuous use
Instrument weight 350 g
Housing material ABS plastic
Colour Blue,Black
Degree of protection (IP) IP 42
Operating temperature range -10  –  50 °C
Recommended storage temperature -30  –  60 °C
Relative humidity 10 to 90%, non-condensing

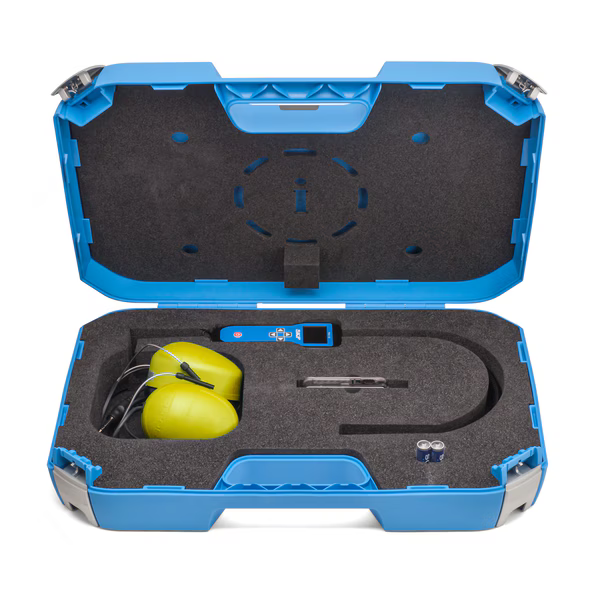

Content
Instrument
Peltor HQ neckband headset
Sensor
USB charging cable
Screwdriver
Rubber nozzle for the sensor
Instructions for Use MP5480
2x Battery AA
Carrying case, size C

Logistics

Product net weight 3.13 kg
eClass code 23-05-19-01
UNSPSC code 41112202

Spare part

Spare tool case (empty) with inlay for Ultrasonic leak detector TKSU 10-CC
Spare headset with neckband for Ultrasonic leak detector and Ultrasound lubrication checker TKSU 10-HEADS
Spare ultrasound sensor for Ultrasonic leak detector TKSU 10-PROBE
(TKSU10)
