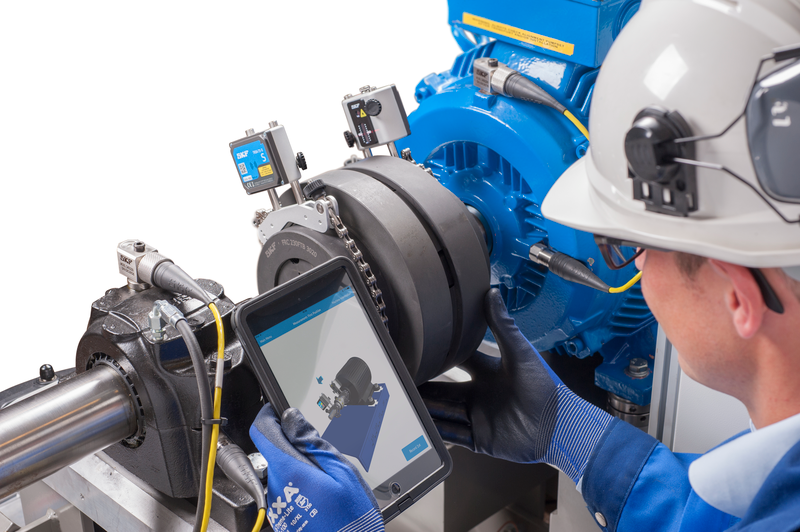

Description
Properties
| Alignment methods |
3 position measurement 9 -12 -3
Automatic measurement
Free measurement (only 40° shaft rotation needed)
|
| Recommended applications |
Horizontal shafts
Vertical shafts
Machine trains
Spacer shafts
Soft foot
Values
|
| Live correction values | Vertical and horizontal |
| Special features |
Machine library
Pictures in reports
QR code reading
Target values
Disturbance compensation
Free 3D machine view
Screen rotation on tablets
Automatic .pdf report
|
| Sensors |
20 mm PSD
Inclinometer ±0.1°
|
| Communications | Bluetooth 4.0 LE |
| Measurement distance | 0.07 to 10 m |
| Measuring error (percent) | 1 % |
| Material | Measurement units: anodized aluminum front and PC/ABS plastic back cover |
| Battery | Measuring units: rechargable 1000 mAh Li-ion battery |
| Battery life | 8 h |
| Operating temperature range | 0 – 45 °C |
| Display | None, Smartphone or tablet needed |
| Operating system |
min. Android 9
min. Apple iOS 9
|
| Software update | Via Apple AppStore and Google Play Store |
| Suitable operating devices |
Android Tablet or Smartphone with min. Android 9
Apple iPad, iPhone with min. iOS 9
|
| Laser type | Red line |

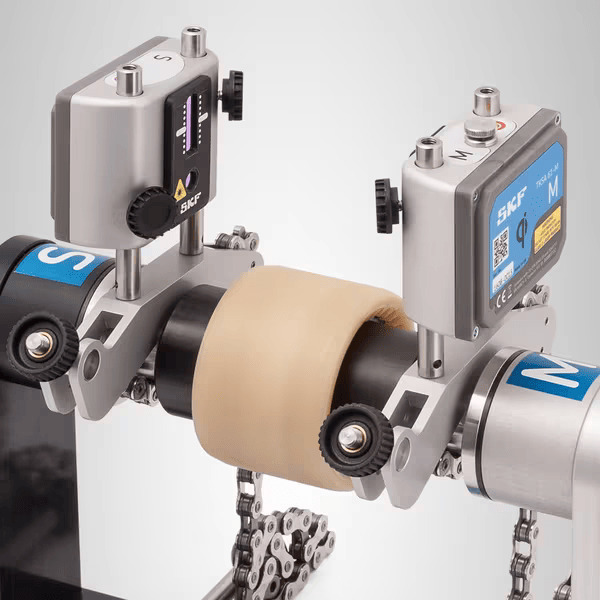

| Mounting | 2x V-brackets (width 15 mm) with chains and magnets |
| Shaft diameter | 20 to 150 mm |
| Shaft diameter with extension | Up to 450 mm with extension chains (included) |
| Power adapter |
Wireless charging via supplied charging pods
Micro USB to USB split charging cable included
Compatible with standard 5V USB chargers (not included)
|
| Degree of protection (IP) | IP 67 for measuring units and carrying case |
| Certifications | Calibration certificate (2 years validity) |
| Part of a kit | no, but also available as TKSA 71/KIT380 or TKSA 71/KIT720 |
| Case dimensions (l x h x w) | 365 x 170 x 295 mm (14.4 x 6.7 x 11.6 in.) |

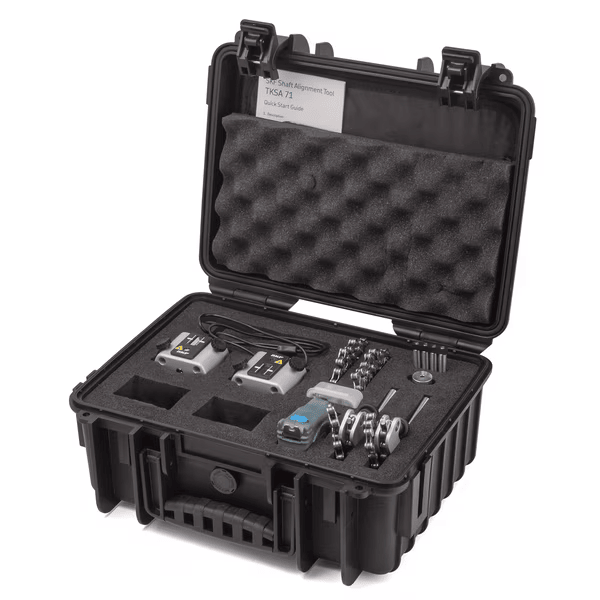

| Content |
Set of 2 Measuring units (M and S)
Set of 2 shaft brackets with chains 480 mm (18.9 in) and threaded rods 80 mm (3.2 in) and magnets
Set of 4 threaded extension rods 120 mm (4.7 in)
Set of 2 extension chains 1 m (3.3 ft)
Micro USB to USB split charging cable
Set of 2 wireless charging pads
Measuring tape
Certificate of calibration and conformance
Quick start guide
Carrying case
|
