Description
Properties
| Recommended applications |
OK Couplings
Large pressure joints
Oil injection for large gears and railway wheels
|
| Air pressure | 3 – 7 bar |
| Air pressure limiter | 7 bar |
| Volume per stroke | 0.83 ml |
| Air consumption | 200 l/min |
| Pressure ratio | 1:500 |
| Oil container | No |
| Pressure gauge | Yes |
| Oil outlet thread | G 3/4 |
| Oil viscosity (maximum) | 1 500 mm²/s |
| Housing material |
Aluminium
Alloy tool steel
|
| Colour |
Blue
Metallic grey
|
| Operating temperature range | 0 – 45 °C |
| Product weight | 16.4 kg |

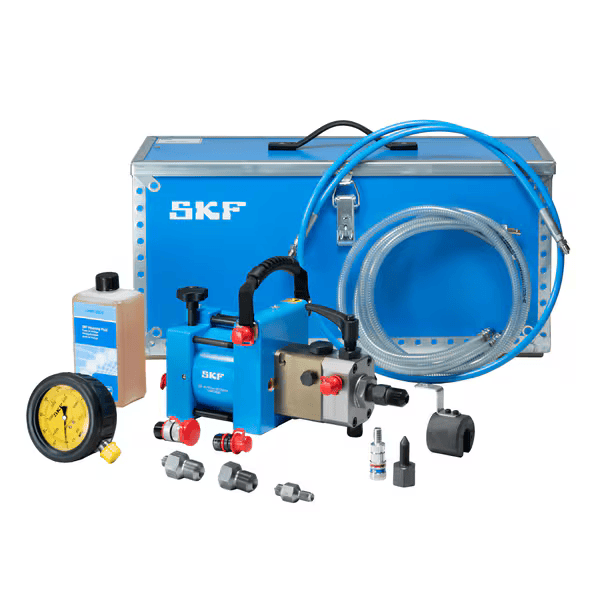

| Content |

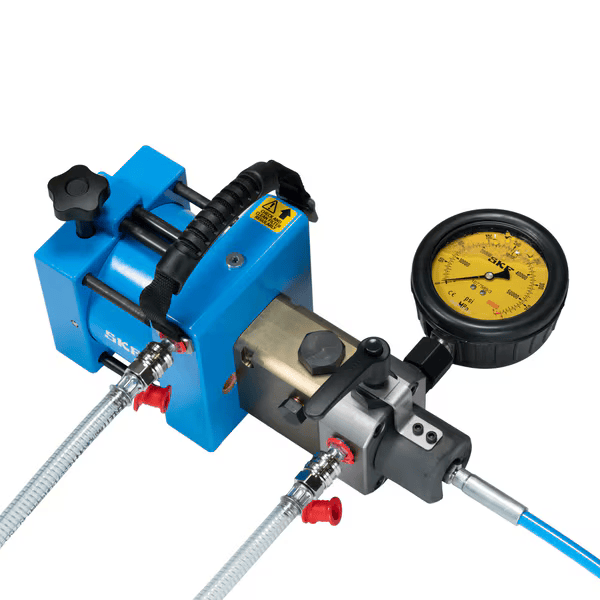

Air driven pump 300 MPa (43 500 psi)
2x Low pressure hoses with couplings(1.5 m/4.9 ft)
Air hose coupling(f)
Mounting fluid (1 ltr/0.22 gal)
Pressure gauge, 400 MPa (58 000 psi) with protection sleeve (TMJG S100)
Protection device
Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58 000 psi)
High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 2 m (6.5 ft.)
Quick connection coupling, M16x1.5 cone female, 300 MPa (43 500 psi)
Quick connection nipple, M16x1.5 cone female, 300 MPa (43 500 psi)
Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi)
Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi)
Instructions for use
Carrying case
|
Logistics
| Product net weight | 24.1 kg |
| eClass code | 23-05-19-01 |
| UNSPSC code | 27112908 |
Accessory
| Accessory hydraulic high pressure hose for Air driven hydraulic pump | THAP 300-H/3 |
| Accessory hydraulic high pressure hose for Air driven hydraulic pump | THAP 300-H/4 |
| Hydraulic connection nipple with male-male application connection | THPN M16G1/2 |
| Hydraulic connection nipple with male-male application connection | THPN M16G1/8 |
| Hydraulic connection nipple with male-male application connection | THPN M16G3/8 |
Spare part
| Hydraulic pressure gauge | 1077589/3 |
| Spare tool case (empty) for various hydraulic tools | 728245/3 A-UNP |
| Spare hydraulic high pressure hose for Air driven hydraulic pump | THAP 300-H/2 |
| Air-driven hydraulic pump | THAP 300E |
| Spare repair kit for Air-driven hydraulic pump | THAP 300E-10 |
| Spare oil injector assembly for Air-driven hydraulic pump | THAP 300E-7 |
| Spare gauge plug assembly consisting of a plug nipple and connection nipple for air driven pumps | THAP E-11 |
| Spare carrying handle for Air-driven hydraulic pumps | THAP E-12 |
| Spare set of hoses for air driven pumps | THAP E-2 |
| Spare air valve assembly for Air-driven hydraulic pumps | THAP E-3 |
| Spare air inlet block for Air-driven hydraulic pumps | THAP E-4 |
| Spare air motor assembly for Air-driven hydraulic pumps | THAP E-5 |
| Spare oil inlet block for Air-driven hydraulic pumps | THAP E-6 |
| Spare release valve assembly for Air-driven hydraulic pumps | THAP E-8 |
| Spare connection nipple assembly for Air-driven hydraulic pumps | THAP E-9 |
| Spare protection cover for Air-driven hydraulic pumps | THAP E-PC2 |
| Quick connection coupling | THPC 300-1 |
| Quick connection nipple | THPN 300-1 |
| Hydraulic connection nipple with female-male application connection | THPN FM16G3/4 |
| Hydraulic connection nipple with male-male application connection | THPN M16G1/4 |
| Hydraulic connection nipple with male-male application connection | THPN M16G3/4 |
Refill
| Mounting or Dismounting fluid | LHDF 900/5 |
| Mounting or Dismounting fluid | LHMF 300/1 |
| Mounting or Dismounting fluid | LHMF 300/5 |
(THAP300EK10) (THAP300E/K10)
