Additional information
| Weight | 0.41 kg |
|---|---|
| Dimensions | 11 × 11 × 7 cm |

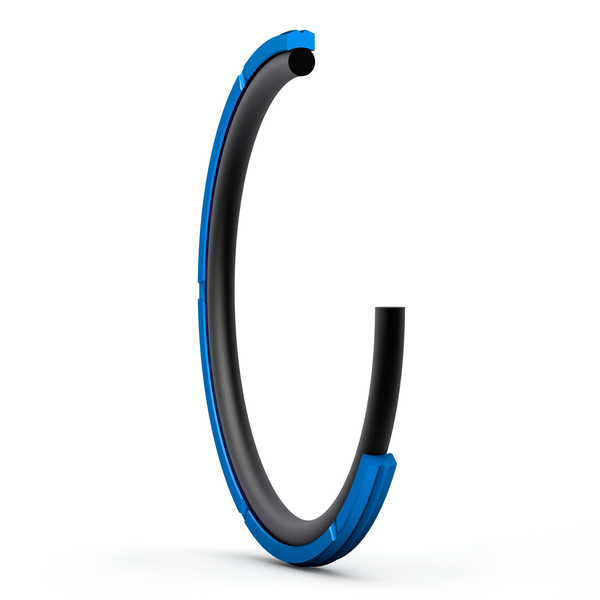

LPV 100X84.5X6.3

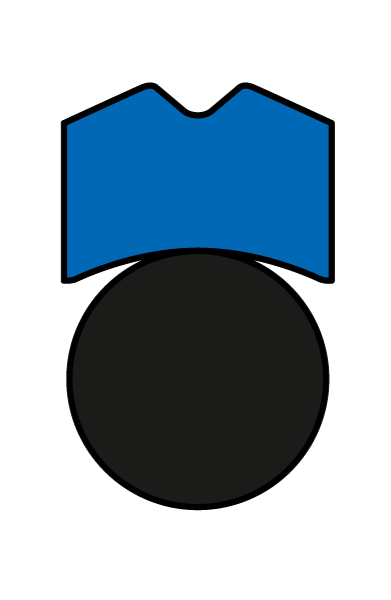

Rubber-energized polyurethane piston seal
LPV seals are double-acting piston seals with a polyurethane slide ring and a nitrile rubber O-ring energizer. They are available in metric sizes. Notches in the edges of the slide ring enable the seal to be rapidly pressurised in response to changes in pressure and direction. Typically, these profiles may be placed without specialised equipment.
- Cost-effective sealing solution
- Suitable for light to medium duty applications
- Available in metric sizes
- Fit seal housings in accordance with ISO 7425-1 for some sizes
- If not in stock alternatives can be produced by SKF SEAL JET systems
EAN code : 07316575583415
Cylindrical bore diameter, D : 100mm (0mm to +0.087mm) H9
Piston groove diameter, d : 84.5mm (-0.087mm to 0mm) h9
Piston groove width, L : 6.3mm (0mm to 0.2mm)
Primary sealing element : Polyurethane (X-ECOPUR PS)
Additional element : Nitrile Rubber (NBR A-8501)
Pressure limit : max.400 bar
Speed : max.1 m/s
