LGFG 2/1

General purpose food grade grease

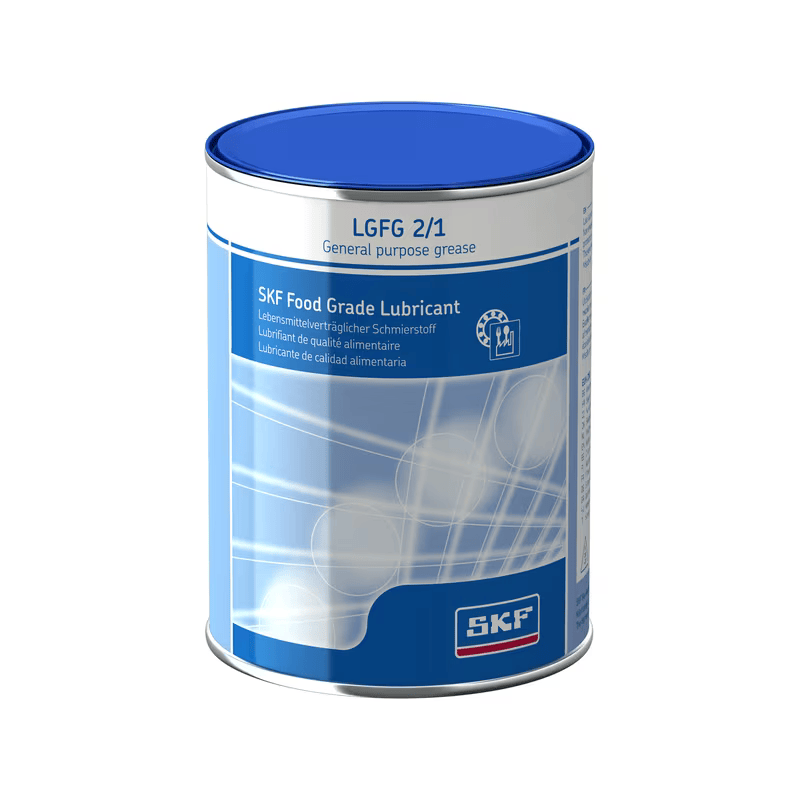

SKF bearing grease LGFG 2 in 1 kg can

A high performance food grade grease using complex calcium sulphonate thickener technology and a white mineral oil. It is suitable for applications subjected to high loads, wet environment and fluctuating temperatures encountered in the among others food and beverage industry.

  • Wide temperature range
  • Outstanding water resistance and corrosion protection
  • Excellent mechanical stability
  • Great dispensability in single point automatic lubricators
  • Excellent protection against high loads and wear
  • NSF ISO 21469 registered as well as Halal and Kosher certified

Dimensions

Corrosion protection, Emcor, ISO 11007, Distilled water 0-0

Performance

Suitable for High load applications ⚫⚫⚫⚫⚪
Suitable for Vertical shaft applications ⚫⚫⚫⚪⚪
Suitable for applications with Oscilating movements ⚫⚫⚫⚫⚫
Suitable for applications with Severe vibrations ⚫⚫⚫⚫⚪
Suitable for applications that require Rust protection ⚫⚫⚫⚫⚪
Suitable for applications that require Water resistance ⚫⚫⚫⚫⚫
Suitable for applications that require Frequent start-up ⚫⚫⚫⚫⚪
Operating temperature range -30  –  140 °C
Operating temperature range M
Load Range L, H
Load Range Low – High C/P >4
Speed Range L, H
Speed Range Low – High
Dropping point (min) ISO 2176 280 °C
Penetration DIN ISO 2137, Worked, 60 strokes (10⁻¹mm) 265-295
Penetration DIN ISO 2137, Prolonged (max.), 100 000 strokes, 10⁻¹mm +50
Mechanical stability – Roll stability, ASTM D1831 (max.) 50 hrs at 80°C, 10⁻¹mm +50
Mechanical stability, V2F test, 144 hrs –
Corrosion protection, Emcor, ISO 11007 modified, Water washout 0-0
Corrosion protection, Emcor, ISO 11007 modified, 0.5% NaCl 0-0
Water resistance (max.) DIN 51807/1, 3 hrs at 90 °C 1
Oil separation DIN 51817, 40°C, % 1-5
Lubrication ability, R2F test B at 120°C Pass
Copper corrosion (max.) DIN 51811 /ASTM D4048, 24 hrs at 100°C 1 max.
Rolling bearing grease life (max.) ROF test, L50 life, 10000 r/min, hrs at °C 1000 at 120°C
EP performance – 4 ball – Wear scar (max.) DIN 51350/5, 1400N 1 mm
EP performance – 4 ball – Weld load (min.) DIN 51350/4 400 N
Maximum pressure 164513 bar
Add to Enquiry
SKU: LGFG 2/1 Categories: ,
SKF

Description

 Properties

Recommended applications
Conveyor bearings
Wrapping machines
Bottling machines
Category Food grade bearing grease
Lubricant LGFG 2
NLGI consistency class 2
Base oil viscosity DIN 51562 at 40 °C 150 mm²/s
Base oil viscosity DIN 51562 at 100 °C 16 mm²/s
Speed (max.) n x dm (x 1000) 500
Speed factor Ball Bearings M: n dₘ < 500 000
Speed factor Cylindrical Ball Bearings (CRB) M: n dₘ > 270 000
Speed factor other bearings (SRB, TRB, CARB) M: n dₘ > 210 000
Biodegradable No
DIN 51825 code KP2N-30
Thickener Calcium sulphonate complex
Colour Brown
Base oil type White mineral
Shelf life 2 year
Certifications
NSF H1
Halal
Kosher
NSF Registration no. 164513
Available for single point lubrication yes

Logistics

Product net weight 1 kg
eClass code 23-06-01-01
UNSPSC code 15121902

Recommended product

General purpose food grade grease LGFG 2/0.4
General purpose food grade grease LGFG 2/18
General purpose food grade grease LGFG 2/180
SKF SYSTEM 24, gas driven single point automatic lubricator LAGD 60/FG2
SKF SYSTEM 24, gas driven single point automatic lubricator LAGD 125/FG2
Refill cartridge grease filled, with battery for Electro-mechanical single point lubricator LGFG 2/SD125
Refill cartridge grease filled, with battery for Electro-mechanical single point lubricator LGFG 2/SD250
SKF SYSTEM 24 single point lubricator TLSD 125/FG2
SKF SYSTEM 24 single point lubricator TLSD 250/FG2
Refill cartridge grease filled, with battery for Electro-mechanical single point lubricant dispenser LGFG 2/MR380B
Refill cartridge grease filled, without battery for Electro-mechanical single point lubricant dispenser LGFG 2/MR380

(LGFG2/1) (LGFG-2/1)
