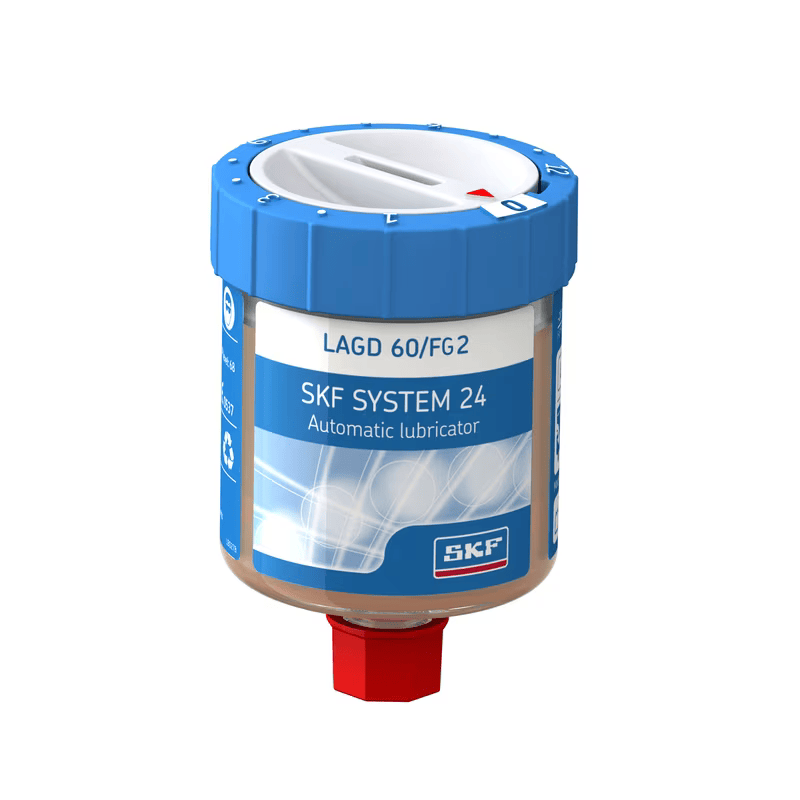

LAGD 60/FG2

SKF SYSTEM 24 gas driven single point automatic lubricator

LAGD 60/FG2 is filled with SKF LGFG 2 food compatible bearing grease, recommended for applications in the food and beverage industry.

SKF gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

  • Flexible dispense rate from 1 to 12 months
  • ATEX zone 0 approved
  • Transparent lubricant container allows visual inspection of dispense rate
  • Compact size, suitable for restrictive areas
  • Improved reliability and optimized maintenance

Dimensions

Lubricant quantity 60 ml

Performance

Nominal emptying time Adjustable, 1–12 months
Maximum pressure 5 bar
Maximum feed line length 0.3 m
Product weight 0.12 kg
Degree of protection (IP) IP 68

(LAGD 60/FP2)

Add to Enquiry
SKU: LAGD 60/FG2-SKF Categories: ,
SKF

Description

Properties

Lubricant LGFG 2
Lubricant description General purpose food grade grease
Certifications
NSF H1
Halal
Kosher
Lubricant operating temperature range –30 to +140 °C
Ambient temperature range -20  –  60 °C
Recommended applications
Conveyor bearings
Wrapping machines
Bottling machines
Drive mechanism Gas cell producing inert gas
Connecting thread R 1/4
Intrinsically safe approval II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Power source Gas cell
Recommended storage temperature 20 °C

(LAGD60/FG2)

Additional information

Weight 0.12 kg
Colour
