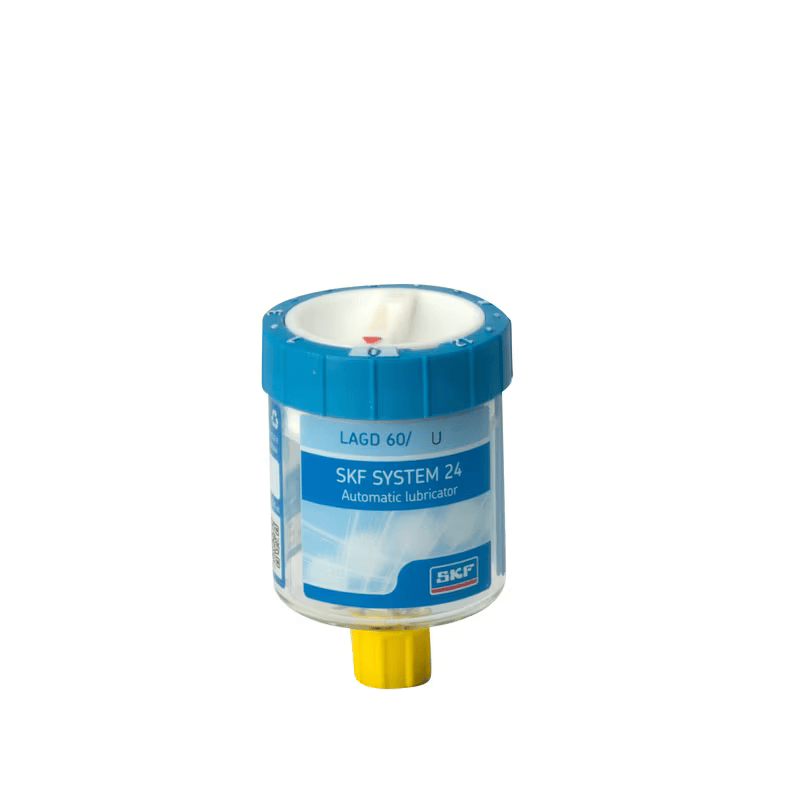

LAGD 60/U

SKF SYSTEM 24 gas driven single point automatic lubricator

LAGD 60/U is provided empty and recommended for oil filling.

SKF gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

  • Flexible dispense rate from 1 to 12 months
  • ATEX zone 0 approved
  • Transparent lubricant container allows visual inspection of dispense rate
  • Compact size, suitable for restrictive areas
  • Improved reliability and optimized maintenance

Dimensions

Lubricator capacity 60 ml

Performance

Nominal emptying time Adjustable, 1–12 months
Maximum pressure 5 bar
Maximum feed line length 1.5 m
Product weight 0.06 kg
Degree of protection (IP) IP 68
Add to Enquiry
SKU: LAGD 60/U-SKF Categories: ,
SKF

Description

Properties

Recommended applications Empty lubricator for oil filling
Drive mechanism Gas cell producing inert gas
Power source Gas cell
Lubricator capacity 60 ml
Recommended storage temperature 20 °C
Special features Non-return valve included
Maximum feed line length 1.5 m
Maximum pressure 5 bar
Nominal emptying time Adjustable, 1–12 months
Nominal emptying time 1  –  12 mo
Intrinsically safe approval II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Connecting thread R 1/4
Degree of protection (IP) IP 68
Shelf life 2 year
Ambient temperature range -20  –  60 °C
Product weight 0.06 kg

Accessory

Angle connection 45 degrees LAPA 45
Angle connection 90 degrees LAPA 90
Brush for SYSTEM 24, 3 x 10 cm LAPB 3X10E1
Brush for SYSTEM 24, 3 x 4 cm LAPB 3X4E1
Brush for SYSTEM 24, 3 x7 cm LAPB 3X7E1
Elevator Brush LAPB 5-16E1
Bracket LAPC 13
Clamp (d=50 mm) LAPC 50
Extension 35 mm LAPE 35
Extension 50 mm LAPE 50
Tube connection, female G1/4 LAPF F1/4
Tube connection, male G1/4 LAPF M1/4
Tube connection, male G1/8 LAPF M1/8
Tube connection, male G3/8 LAPF M3/8
Grease nipple with male thread G1/4 LAPG 1/4
Y connection, with male threads G1/4 to female G1/4 LAPM 2
Nipple with thread female G1/4 to male G1/2 LAPN 1/2
Nipple with thread female G1/4 to male G1/4 LAPN 1/4
Nipple with threads female G 1/4 to male 1/4 -28 UNF LAPN 1/4UNF
Nipple with threads female G 1/4 to male G1/8 LAPN 1/8
Nipple with threads female G 1/4 to male M10x1.5 LAPN 10
Nipple with threads female G 1/4 to male M10x1 LAPN 10X1
Nipple with threads female G 1/4 to male M12 LAPN 12
Nipple with threads female G 1/4 to male M12x1.5 LAPN 12X1.5
Nipple with threads female G 1/4 to male G 3/8 LAPN 3/8
Nipple with threads female G 1/4 to male M6 LAPN 6
Nipple with threads female G 1/4 to male M8x1.25 LAPN 8
Nipple with threads female G 1/4 to male M8x1 LAPN 8X1
Support plate SYSTEM 24 LAGD LAPP 4
Protection Cap LAPP 6
Flexible tube, 1000 mm long, 8 x 6 mm LAPT 1000
Flexible tube, 5000 mm long, 8 x 6 mm LAPT 5000
Non return valve G1/4 LAPV 1/4
Non return valve G1/8 LAPV 1/8

(LAGD60/U)

Additional information

Weight 0.06 kg
