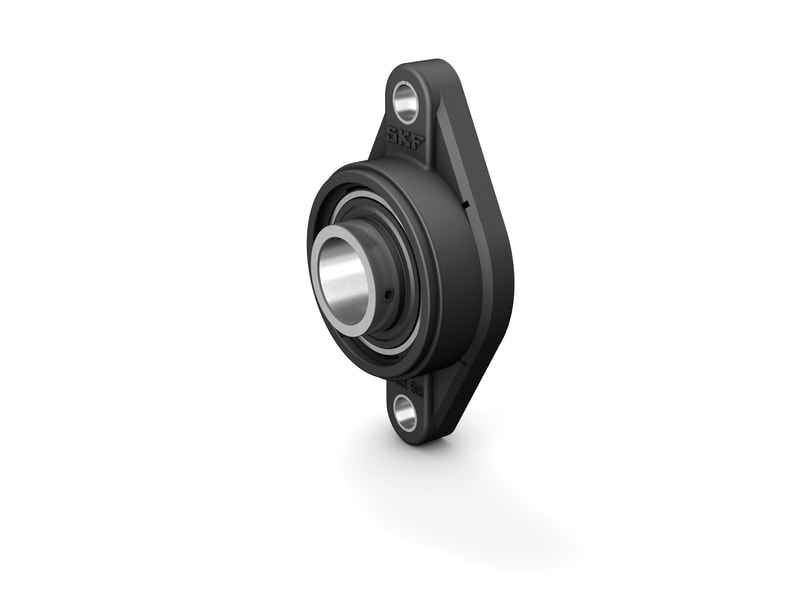

FYTBK 30 TR

Oval flanged ball bearing unit with extended inner ring and set screw locking, composite, ISO standards

These oval flanged ball bearing units are compliant with ISO standards. The unit consists of an insert bearing, with an extended inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame.

  • Chemical resistant
  • Pre-lubricated for life
  • Lightweight
  • Strong

Bore Diameter (ID): 30mm
Outside Diameter (OD): 142.5mm
Width (H): 42.2mm
Number of Rows: 1
Sealing: Seal and rubberized flinger on both sides
Unit of Measurement: PC
Measurement System: Metric
Bore Type: Cylindrical
Sealing Type: Contact
Lubricant: Standard grease
eCl@ss code: 23051690
UNSPC code:

Add to Enquiry
SKU: FYTBK 30 TR-SKF Categories: ,
SKF

Additional information

Weight 0.4465 kg
Size (mm)

Colour
