FYJ 45 KF

Square flanged ball bearing unit with adapter sleeve locking, cast iron housing, JIS

These square flanged ball bearing units are compliant with Japanese Industrial Standards (JIS).

They consist of an insert bearing, locked to the shaft with an adapter sleeve, which enables the bearings to operate at higher speeds and run more smoothly in applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement. The adapter sleeve is not included in the unit and should be ordered separately.

  • Resist high levels of contamination
  • Designed for high temperatures and speeds
  • Accommodate relatively heavy loads
  • Cost-effective

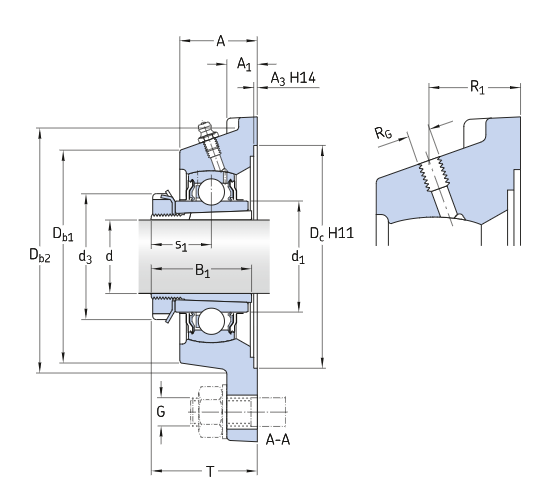

Dimensions

d
40 mm
 Bore diameter
d1
≈56.8 mm
 Outer diameter of inner ring
d3
65 mm
 Outside diameter of lock nut
A
38 mm
 Width of housing
A1
16 mm
 Flange width
A3
3.2 mm
 Depth of centring recess
B
35 mm
 Width of inner ring
B1
34.9 mm
 Overall bearing width
B1
50 mm
 Width of sleeve
Db1
107 mm
 Top external diameter
Db2
108 mm
 Base external diameter
Dc
119.1 mm
 Diameter of housing centering recess
J
105 mm
 Distance between attachment bolts
L
137 mm
 Overall length
N
16 mm
 Diameter of attachment bolt hole
s1
28.75 mm
 Distance from locking device side face to raceway centre
T
50.75 mm
 Overall width
Value specified for s1 is approximate and before the sleeve is driven into the bearing bore (sleeve and inner ring bore at starting position).
Threaded hole
RG
1/4-28 UNF
 Housing thread for grease fitting
R1
22 mm
 Axial position of the housing thread
Grease fitting
DN
6.5 mm
 Diameter of head sphere of grease fitting
SWN
7 mm
 Hexagonal key size for the grease fitting
GN
1/4-28 SAE-LT
 Thread of grease fitting
Dowel pins
J6
123 mm
 Distance of dowel pins
J7
33.5 mm
 Axial offset of dowel pins
N4
4 mm
 Recommended diameter for dowel pins

Calculation data

Basic dynamic load rating C
33.2 kN
Basic static load rating C0
21.6 kN
Fatigue load limit Pu
0.915 kN
Limiting speed
4 300 r/min

Mounting information

Associated spanner
HN 9
Recommended lock nut tightening angle α
110 °
Recommended diameter for attachment bolts, mm G
14 mm
Recommended diameter for attachment bolts, inch G
0.5625 in
Add to Enquiry
SKU: FYJ 45 KF-SKF Categories: , ,
SKF

Description

Properties

Associated mounting tool HN 9
Housing type Flanged
Flanged housing type Square
Number of bolt holes for fasteners 4
Fastening bolt hole type Plain
Retaining feature, inner ring Adapter sleeve
Bore type Tapered
Rubber seating ring Without
Material, housing Cast iron
Material, bearing Bearing steel
Coating Without
Sealing, bearing Seal and flinger on both sides
Sealing type Contact, standard
Sealing, unit Without
Lubricant Grease
Relubrication hole With
Grease fitting With
  • Order adapter sleeve separately
Compliance with standard
JIS
Purpose specific
For material handling applications
Material, housing
Cast iron
Sealing, bearing
Seal and flinger on both sides
Sealing type, bearing
Contact, standard
Sealing, unit
Without
Coating
Without

Logistics

Product net weight 2 kg
eClass code 23-05-16-02
UNSPSC code 31171536

(FYJ45KF)
