99872 (CR99872)

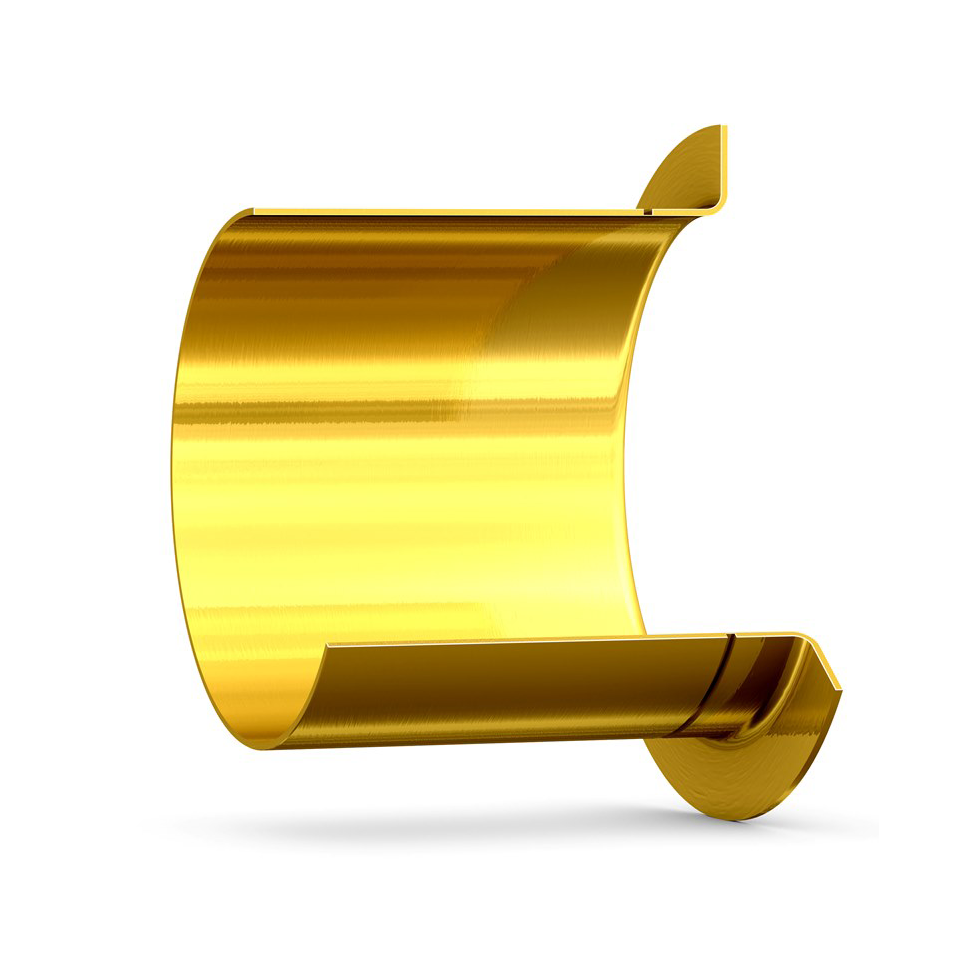

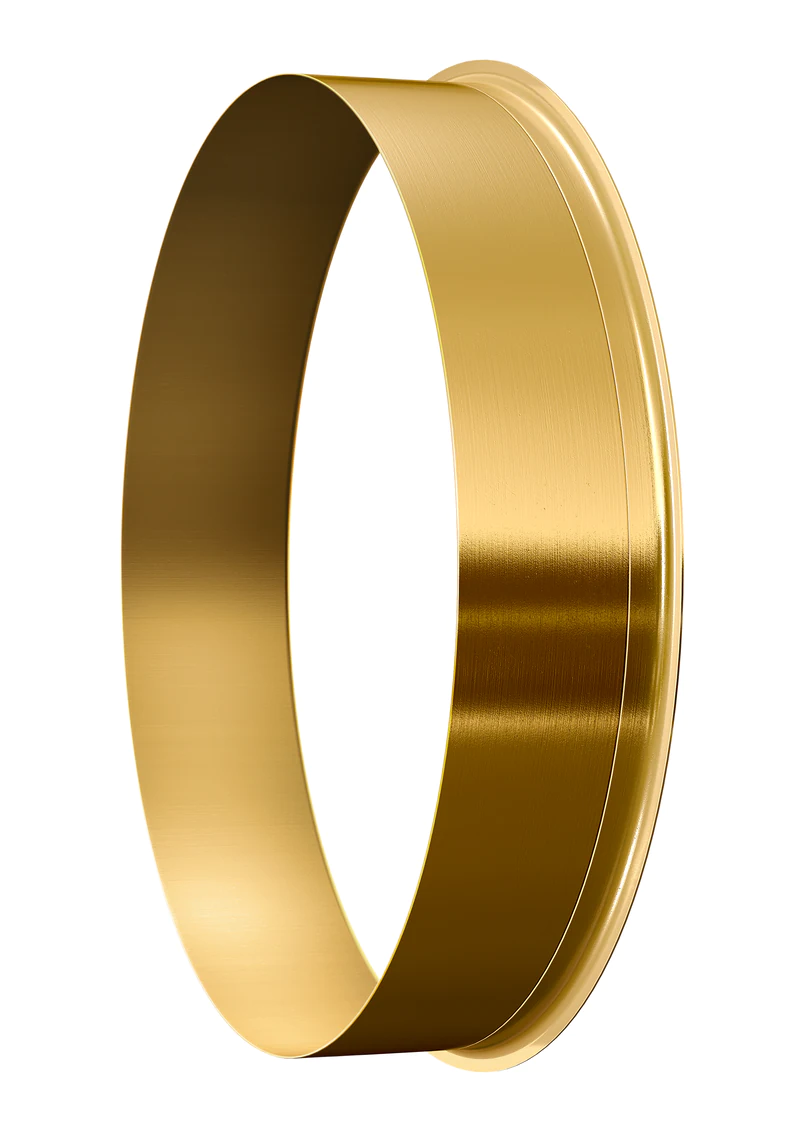

SKF Speedi-Sleeve (Wear sleeve) (Shaft Repair)
Restore worn shafts quickly and economically

For worn or damaged shafts, SKF Speedi-Sleeve offers an alternative to costly repairs. This SKF-developed thin-walled sleeve is easily positioned over the relevant portion of the shaft to offer an optimal smooth counterface for radial shaft seals. Applying SKF Speedi-Sleeve can eliminate the need for expensive shaft treatments like as machining, hardening, plunge grinding, or disassembly. SKF Speedi-Sleeve Gold is an improved version of the conventional SKF Speedi-Sleeve, with better resistance to abrasive wear.

  • Optimized countersurface
  • Cost effective
  • Well-proven solution
Shaft diameter d 84.89mm
Shaft diameter range 84.76mm to 85.01mm
Removable flange outside diameter 93.98mm
Design SSLV
Type Gold
EAN code 85311364904
Nominal bore dimension, d 84.89mm
Nominal outside diameter, D 93.98mm ± 1.57mm
Nominal width, b 24.99mm ± 0.8mm
Nominal width of plain sleeve, b1 21.01mm ± 0.8mm
Installation distance, B (max) 35mm
Nominal thickness, t 0.25mm



SKU: 99872 Categories: ,

Additional information

Weight 0.0479 kg
Dimensions 10 × 10 × 4.5 cm
