89416 M

89416 M

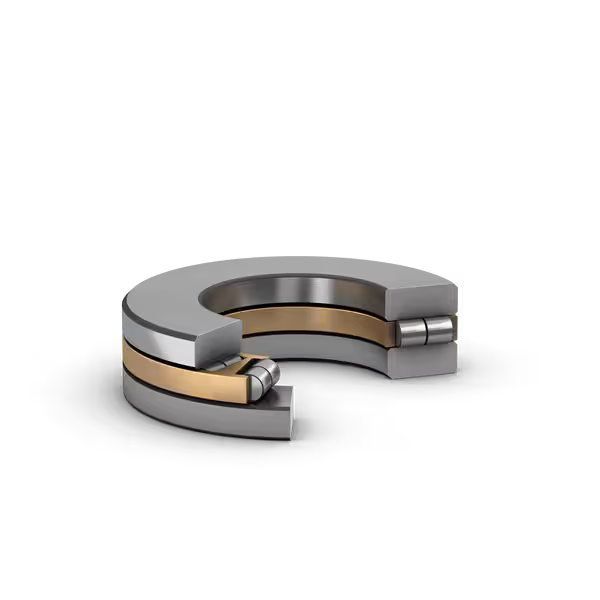

Single row cylindrical roller thrust bearing, single direction

Single row cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads.

They provide a high degree of stiffness and require little axial space. They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High axial load carrying capacity
High stiffness
Long service life
Require little axial space
Separable design

Dimensions

d	80 mm	Bore diameter
D	170 mm	Outside diameter
H	54 mm	Height
d₁	170 mm	Outside diameter shaft washer
D₁	83 mm	Bore diameter housing washer
B	18 mm	Height shaft washer
r_1,2	min.2.1 mm	Chamfer dimension housing washer

Abutment dimensions

d_a	min.166 mm	Abutment diameter shaft
D_a	max.89 mm	Abutment diameter housing
r_a	max.2.1 mm	Fillet radius

Calculation data

Basic dynamic load rating	C	440 kN
Basic static load rating	C₀	1 730 kN
Fatigue load limit	P_u	173 kN
Reference speed		900 r/min
Limiting speed		1 800 r/min
Minimum axial load factor	A	0.24

Included products

Roller and cage thrust assembly	K 89416 M
Shaft washer	WS 89416
Housing washer	GS 89416

Description

Properties

Bearing part	Complete bearing
Axial load capability	Single-direction
Number of rows	2
Cage	Machined brass
Tolerance class	Normal
Material, bearing	Bearing steel
Coating	Without
Indicative carbon footprint for new product	25.3 kg CO₂e

Logistics

Product net weight	7.04 kg
UNSPSC code	31171505

Component

Single direction cylindrical roller thrust bearing

K 89416 M

(80X170X54) (89416M)

Additional information

Weight	7.04 kg
