Additional information
| Weight | 0.021 kg |
|---|

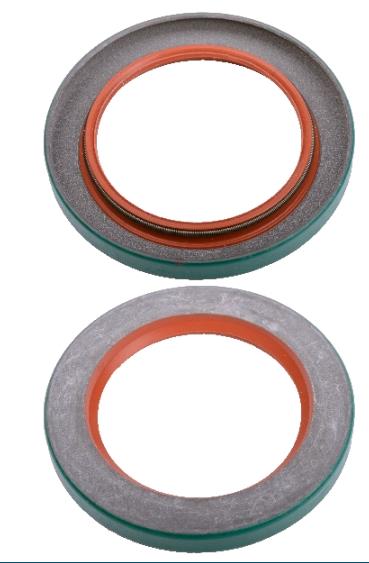

11650 (CR11650CRW1S)
Radial shaft seal with metal case and SKF Wave lip, for oil or grease
A radial shaft seal, also known as a lip seal, rotary shaft seal, or oil seal, is a type of mechanical seal used to prevent the leakage of lubricants or other fluids in rotating machinery.
CRW1 seals feature a metal case, an SKF WAVE lip constructed from elastomeric material designed for enhanced pumping efficiency to minimize heat generation, and a garter spring to optimize the sealing performance against the shaft.
- For oil or grease
- With garter spring
- WAVE lip creates higher pumping rate
- WAVE lip has less friction between shaft and lip
- WAVE lip has a lower temperature at the contact point
| Type of outside diameter | Metal-cased with sealant coating on the outside diameter |
| Lip material | Silicone rubber (MVQ) |
| Seal design | CRW1 |
Dimensions
| Inch | mm | |
| Shaft, d1 | 1.178 | 29.92 |
| Bore, D | 2.073 | 52.65 |
| Width, b | 0.335 | 8.51 |
Application and operating conditions
| Operating temperature (min.) | -70 °C |
| Operating temperature (max.) | 160 °C |
| Circumferential speed (max.) | 19.44 m/s |
| Rotational speed (max.) | 5000 r/min |
| Pressure differential | 0.07 N/mm² |
| Fast repair of worn shaft | 99114 (click to view) 99122 (click to view) |
