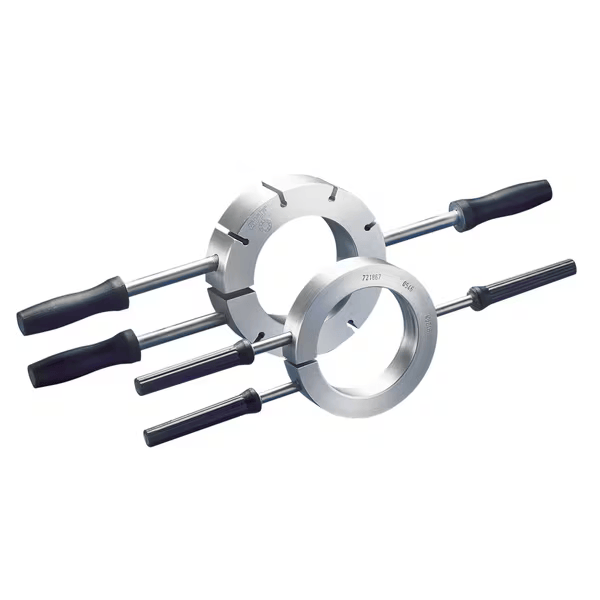

TMBR series

Aluminum heating rings

For regular dismounting of cylindrical roller bearings

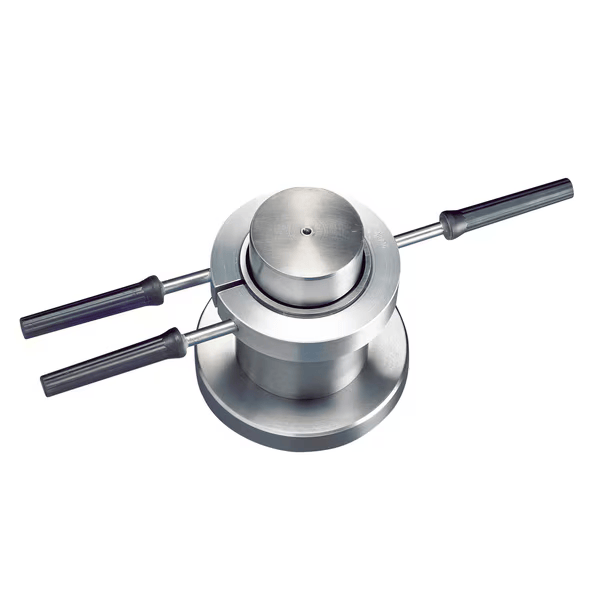

The aluminum heating rings are designed for dismounting inner rings of cylindrical roller bearings. After pre-heating the TMBR ring, it is clamped on the bearing inner ring to rapidly transfer the heat to the bearing ring and expand it for dismounting.

  • Simple and easy-to-use
  • Avoids shaft and bearing inner ring damage
Technical data
Material aluminum
Maximum temperature 300 °C (572 °F)
Add to Enquiry
SKU: TMBR SERIES-SKF Categories: ,
SKF

Description

Bearing Designation
313822 TMBR 313822
NJ 130×240 TN_VA820
NJP 130×240 TN_VA820		 TMBR NJ130X240
NJ 160×270
NJP 160×270		 TMBR NJ160X270
NJ 120×240 TN/VA820
NJP 120×240 TN/VA820		 TMBR 120X240
NJ 218 & NJ 218 E… TMBR NJ218E
NJ 2318 E… TMBR NJ2318E
NNU4930 TMBR NNU4930
NU 1011 & NU 1011 E… TMBR NU1011EC
NU 1018 M TMBR NU1018
NU 1036 ML TMBR NU1036
NU 206 E… TMBR NU206EC
NU 209 E… TMBR NU209E
NU 212 TMBR NU212
NU 213 TMBR NU213
NU 213 E… TMBR NU213E
NU 214 TMBR NU214
NU 214 E… TMBR NU214EC
NU 215 TMBR NU215
NU 215 E… TMBR NU215EC
NU 216 & NU 216 E… TMBR NU216EC
NU 217 E… TMBR NU217EC
NJ 218 & NJ 218 E… TMBR NU218
NU 218 & NU 218 E… TMBR NU219E
NU 2212 E… TMBR NU2212EC
NU 2214 E… TMBR NU2214E
NU222 TMBR NU222
NU 2224 & NU 2224 E… TMBR NU2224E
NU 226 E… TMBR NU226EC
NU 236 E… TMBR NU236E
NU 238 E… TMBR NU238EC
NU 311 TMBR NU311
NU 312 TMBR NU312
NU 312 E… TMBR NU312EC
NU 313 TMBR NU313
NU 314 TMBR NU314
NU 315 TMBR NU315
NU 316 TMBR NU316
NU 316 E… TMBR NU316E
NU 317 TMBR NU317
NU 318 E … TMBR NU318E
NU 319 TMBR NU319
NU 320 E… TMBR NU320EC
NU 322 & NU 322 E… TMBR NU322
NU 324 TMBR NU324
NU 1011EC TMBR NUB1011EC
NUP 215 TMBR NUP215
