TLGB 20

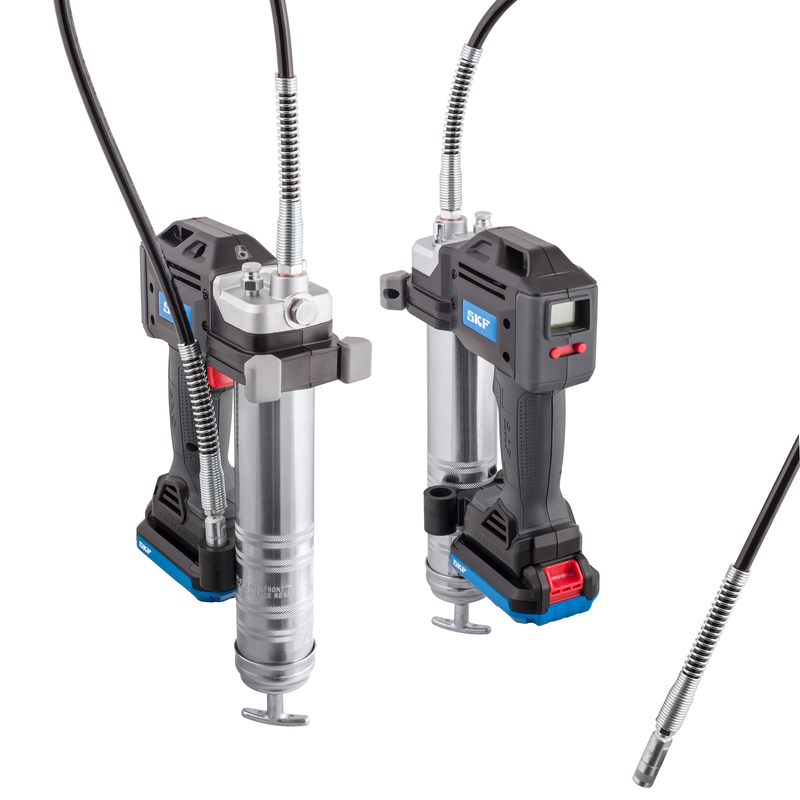

SKF Battery Driven Grease Gun TLGB 20

Developed for maximum efficiency, the SKF Battery Driven Grease Gun TLGB 20 includes an integrated grease meter to help prevent over- and under-lubrication.

This unique tool features a durable, ergonomic design with a three-point stand for operator comfort and convenience and a lithium-ion battery for longer life. The tool’s display indicates battery charge level, amount of grease dispensed, pump/motor speed and blocked lubrication points. This versatile grease gun provides two flow rates – low and high – and can dispense up to 15 grease cartridges per battery charge. The TLGB 20 can deliver pressures up to 700 bar (10000 psi) and features a built-in light to illuminate the work area.

  • Integrated grease meter tracks dispensed grease
  • Battery charge display indicates lithium battery charge level
  • LED light illuminates work area to help locate grease fittings in dimly lit environments
  • Lithium-ion battery dispenses up to 15 grease cartridges per charge and maintains stable energy output
  • Filler nipple facilitates clean and simple filling from drums using filler pumps
  • Lightweight, ergonomic design with optimized balance for operator comfort

Dimensions

Hose length 900 mm

Performance

Maximum peak pressure 700 bar
Maximum pressure 40 MPa
Maximum pressure 400 bar
Add to Enquiry
SKU: TLGB 20-SKF Categories: ,
SKF

Description

Properties

NLGI class of lubricant (max) 2
Number of available pump speeds 2
Grease output at 70 bar (1000 psi) – Low speed 100 ml/min
Grease output at 70 bar (1000 psi) – High speed 160 ml/min
Cartridges per battery charge 15
Display Yes
Built-in light Yes
Integrated grease metre Yes
Battery 20V Li-ion battery
Battery capacity 1 500 A·h
Battery charger 200-240V, 50-60 Hz
Battery charge time (max) 90 min
Case dimensions (l x h x w) 590 x 110 x 370 mm
Content
1x Grease gun
1x charger
1x instructions for use
1x carrying case
Operating temperature range -20  –  50 °C
Product weight 3 kg
Total product weight 5.7 kg

Accessory

High pressure hose 762 mm (30 in) for SKF TLGB series battery driven grease guns TLGB 1230
High pressure hose 1220 mm (48 in) for SKFTLGB series battery driven grease guns TLGB 1248HP
20V 2.5 Ah Li-Ion battery for SKF battery driven grease gun, TLGB 1886-E TLGB 1871
DC Charger 12-24/12-20V for SKF grease guns, TLGB 1262-E and TLGB 1886-E (Li-Ion) TLGB 1875A
Carrying strap for battery driven grease gun TLGB 20-1
Plug adapter for Australian and New Zeeland TLGB 20–7

Spare part

20V 4.0 Ah Li-Ion battery for SKF battery driven grease gun, TLGB 1886-E TLGB 1872
20V Li-Ion battery for battery driven grease gun TLGB 20-2
High pressure hose 900 mm (36 in) with coupler for battery driven grease gun TLGB 20-3
Grease tube assembly for battery driven grease gun TLGB 20-4
Charger 220-240V for battery driven grease gun TLGB 20-5

(TLGB20)

Additional information

Weight 5.7 kg
