TIH L33/LV

SKF Induction Heater TIH L33 (230V version)

Large induction heater with a 700 kg bearing heating capacity

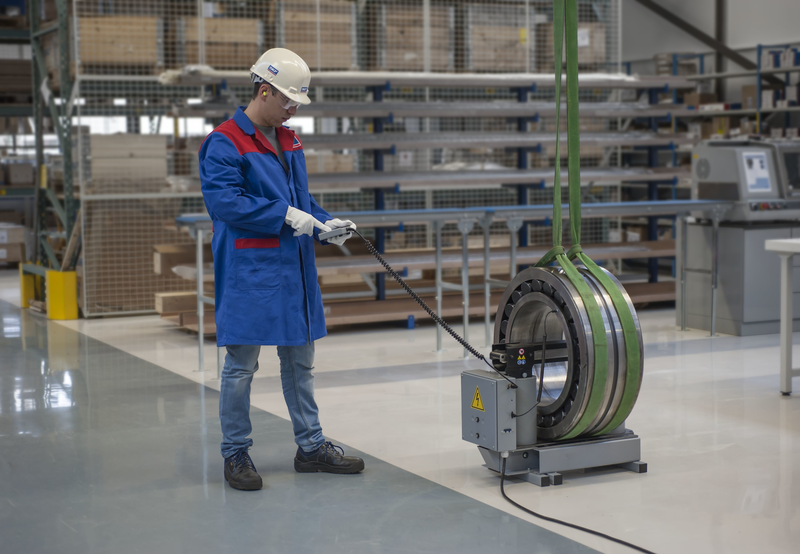

The SKF TIH L33 is a large induction heater and is designed for the hot mounting of bearings. This heater is characterized by a high heating performance for large bearings and a flexible design that allows bearing heating in either the horizontal or vertical position. The sliding yoke supports an ergonomic workflow and the heater can easily be transported by forklift. The TIH L33 can heat bearings with a minimum bore diameter of 115 mm and larger bearings with a maximum weight of 700 kg.

  • Standard sliding yoke for ergonomic operation
  • Designed for bearing heating in horizontal position (around the coil) or vertical position (around the sliding yoke)
  • Easy and safe to use with automatic temperature control or time controlled heating
  • Automatic demagnetization reduces risk of bearing contamination
  • Automatic temperature hold function to keep the bearing hot after completion of the heating cycle

Dimensions

Workpiece bore diameter 115 to 700 mm
Operating area height 320 mm
Operating area width 300 mm
Coil diameter 150 mm
Standard yokes for minimal workpiece bore diameter 115 mm
Dimensions (W x L x H) 400 x 743 x 550 mm

Performance

Heating performance example (bearing, weight, temperature, time) 24188ECA/W33, 455 kg, 110 °C, 28 min
Add to Enquiry
SKU: TIH L33/LV-SKF Categories: ,
SKF

Description

Properties

Workpiece weight (max) 700 kg
Heating temperature (max) 250 °C
Power consumption (max) 15 kVA
Voltage 200  –  240 V
Voltage frequency 50  –  60 Hz
Heating temperature steps 1 °C
Heating temperature control 0 to 250 °C
Temperature measurement Magnetic probe K-type
Heating time steps 0.1 min
Heating time control 0.1 – 60 minutes min
Thermometer mode Yes
Time mode Yes
Power setting
50%
100%
Remote control panel (wired) Yes, with LED display
Demagnetisation after heating (according SKF norms) < 2 A/cm A/cm
Error guiding codes Yes
Thermal overload protection Yes
Cooling fan No
Colour Light grey, black
Housing material
Steel
Glass fibre filled polyamide
Bearing support arms Yes, removeable
Yoke storage No
Main yoke type Sliding yoke, 80 x 80 mm
Total product weight 140 kg

Accessory

Yoke 40 x 40 x 530 mm, optional, for TIH L33, TIH L33MB heater TIH L33-Y6
Yoke 55 x 55 x 530 mm, optional, for TIH L33, TIH L33MB heater TIH L33-Y8

Spare part

Anti-fretting paste LGAF 3E/0.035
Control print TIH heater TIH CP
Power print for TIH L33 and L33MB 200-240V version TIH L33-PLV
Yoke 80 x 80 x 530 mm complete with sliding rails for TIH L33, TIH L33MB TIH L33-Y12
Temperature probe, K type including. cable and plug for TIH 030M, TIH 100M, TIH 220M, TIH L33, TIH L44, TIH L77 (all versions, including. MB) TIH P20
Remote control for TIH L33 TIH RC3
Snubberboard for the TIH 220m, TIH L33, TIH L44, TIH L77 (all versions including. MB) TIH SNUBBER

(TIH-L33/LV)
